If you purchased the optional accessory
kit, these instructions will show you how
to properly assemble it to your machine.
1. Remove the rear panel.
2. Remove the two bolts holding the
balance bar. Have someone support
the bar while you remove the bolts.
3. Attach the rubber protector sheet to
the front shroud as shown. First,
clean the shroud area with isopropyl
alcohol and let dry completely.
Remove the backing from the rubber
sheet. Start at the top and align the
holes in the sheet with the holes in
the shroud. Lightly press the sheet
onto the shroud face by working your
way from the top middle, out to the
sides, then work your way down. After
the sheet is in position, apply firm
pressure, starting at the middle and
work your way out toward either side.
4. Place the balance bar over the
accessory hanger plate. Line up the
holes with the holes in the shroud and
reinstall bolts. Hint: It may help to
loosen the bolts on the side of the
balance bar to assist in installing the
bolts. Check the alignment and fully
tighten all bolts.

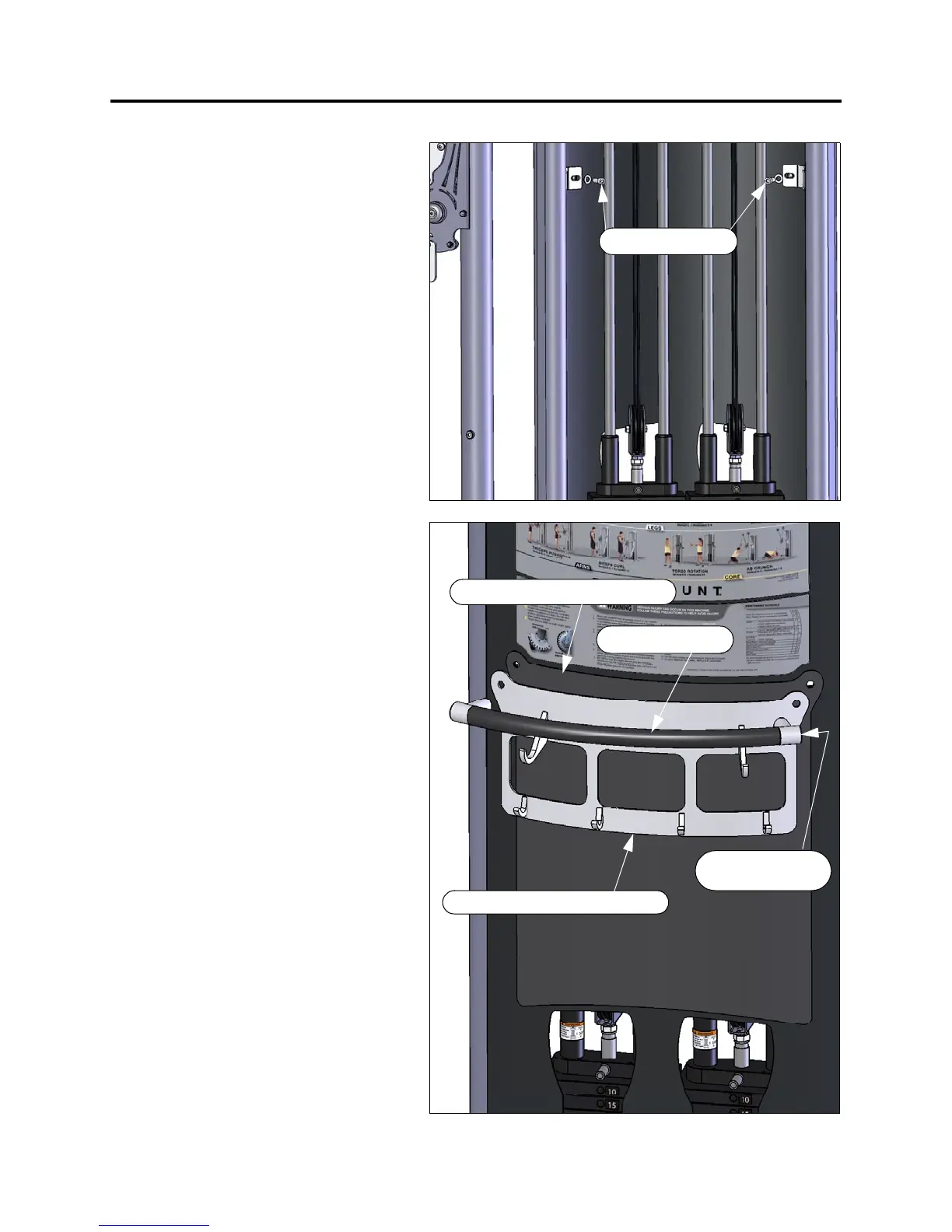

OPTIONAL ACCESSORY KIT HANGER
REMOVE BOLTS
RUBBER PROTECTOR SHEET
BALANCE BAR
ACCESSORY HANGER PLATE
LOOSEN BOLTS
IF NECESSARY
