SWING FRAMES
DATE: 08/29/2014
INSTALLATION GUIDELINES
Page 16 of 20

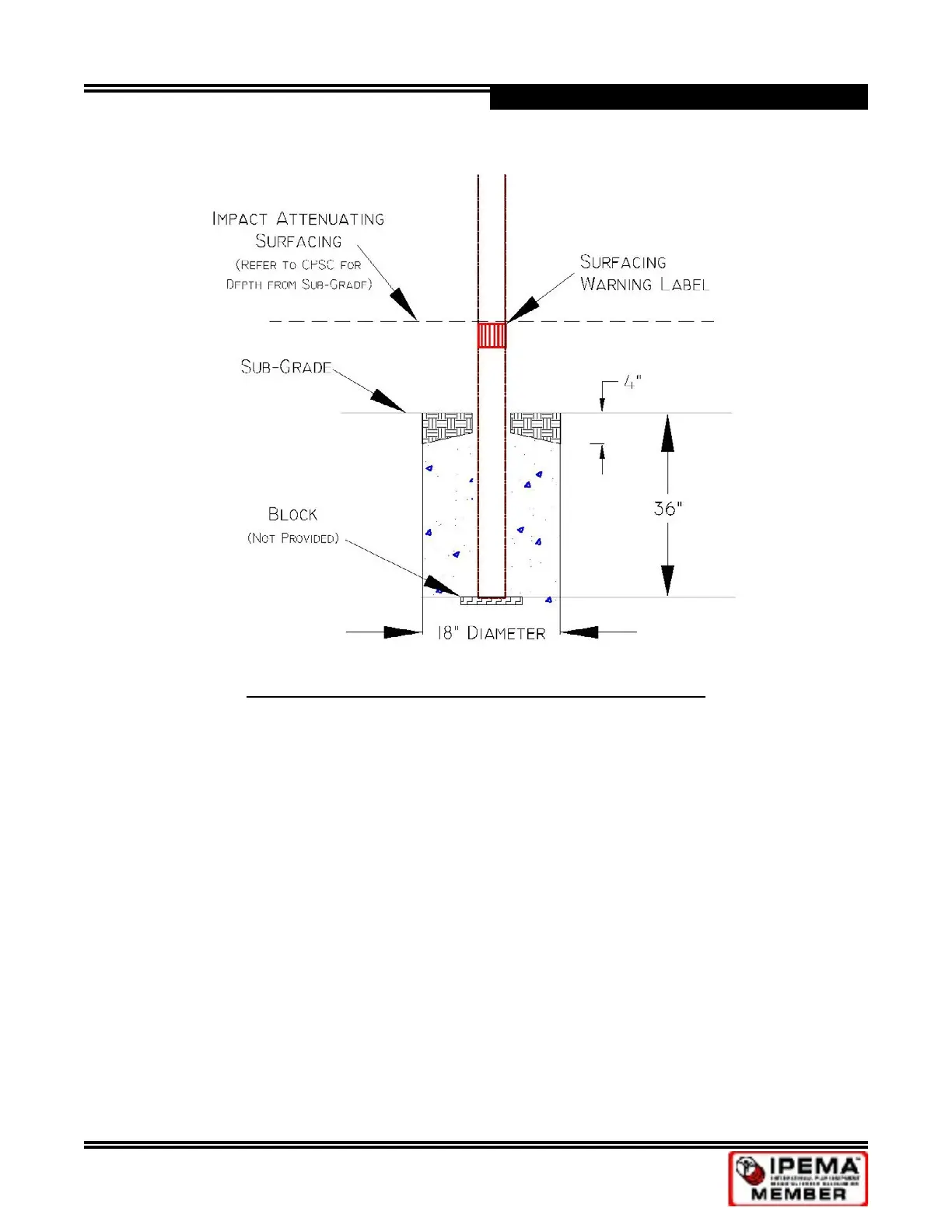

FOOTING ELEVATION - SINGLE 5” POST SWING FRAME
