Park Tool PCS-10 - Page 4

5115 Hadley Ave. N., St. Paul, MN 55128 (USA) www.parktool.com
PARK TOOL CO.

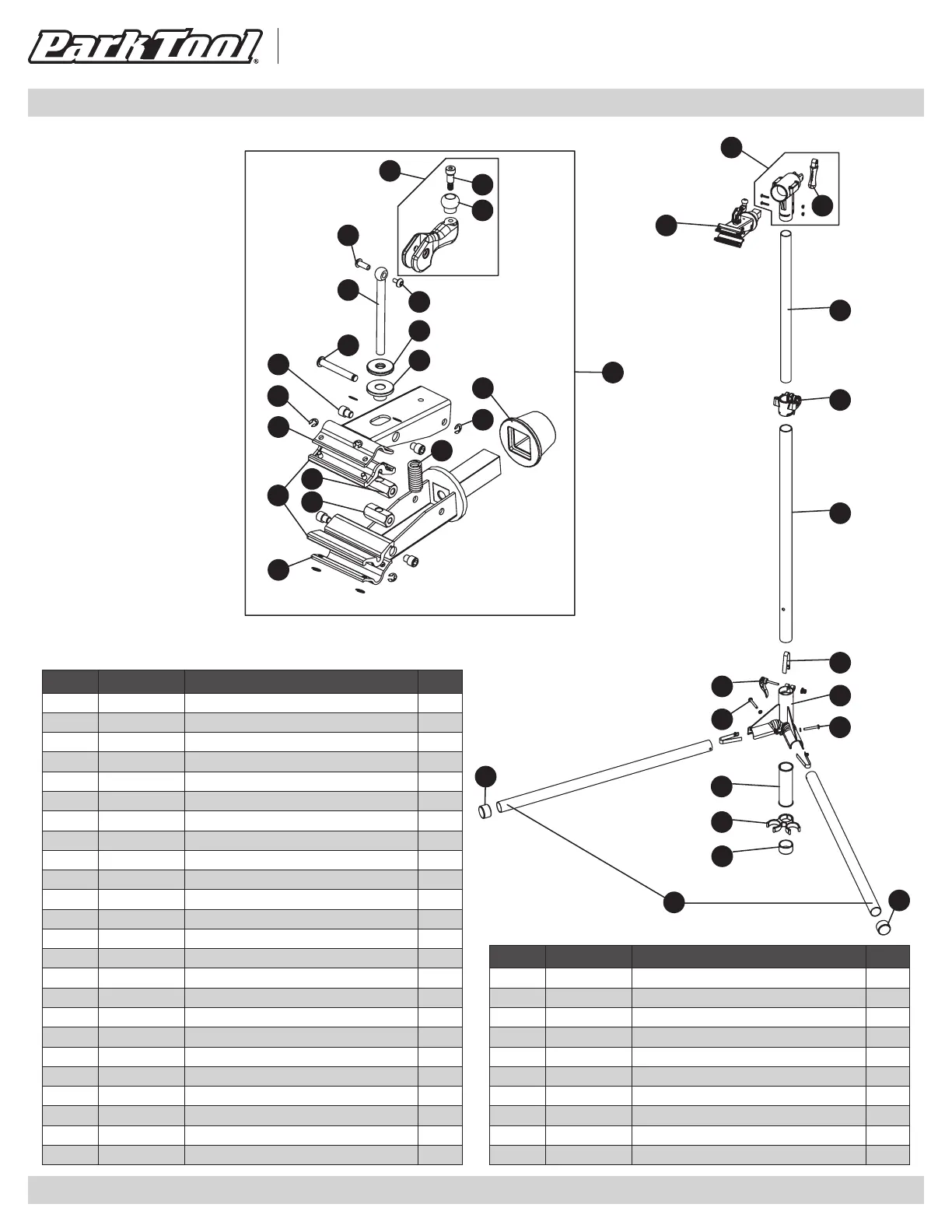

PCS-10 Parts / Pièces / Teile / Partes
© 2019 Park Tool Co.
PARK TOOL® and the color BLUE are registered trademarks of Park Tool Co.
07/19
PCS-10 PART NUMBERS
Ref. # Part # Description Qty.
1 1451 Leg Clip 1
2 1456-10 Extension Collar Assembly 1
3 1458-10 Top Tube Assembly 1
4 1685 Spring Button 3
5 1780-2 Leg Cap 2
6 1781-2W Leg 2
7 1782-2 Leg Bolt, Nut and Washer 2
8 1786 Yoke QR Assembly 1
9 1787 Upright Cap 1
10 1788 Yoke Sleeve 1
11 1792W Extension Tube 1
12 1793 Swing Handle 1
13 1795W Complete Clamp 1
14 1796 Yoke 1
15 1797 Upright Tube 1
16 107-2 Clevis Pin C-Clip 1
17 1185K Jaw Cover Set (including E-Clips) 4
18 1184 Jaw E-Clip 1
19 1800 Tapered Compression Cone 1
20 1801W Rotating Jaw 1
21 1802W Moveable Jaw 1
22 1803 Hex Barrel-Threaded 1
23 1804 Hex Barrel-Unthreaded 1
24 1805-4 Cap Screw 4
9
1
10
7
8
7
15
14
4
5
6
2
5
11
12
3
13
13
19
26
25
22
20
16
24
23
17
21
27
18
32
28
33
34
29
30
31
PCS-10 PART NUMBERS
Ref. # Part # Description Qty.
25 1806 Spring 1
26 1807 Clevis Pin 1
27 1808X Step Bushing 1
28 1809 Nylon Washer 1
29 1810 Clamp Screw 1
30 1964 Handle Screw 1
31 1965 Handle Screw Cap 1
32 1966A Cam Handle Assembly 1
33 1967 Cam Handle Knob 1
34 1968 Cam Handle Knob Screw 1
