PCS-12 PART NUMBERS

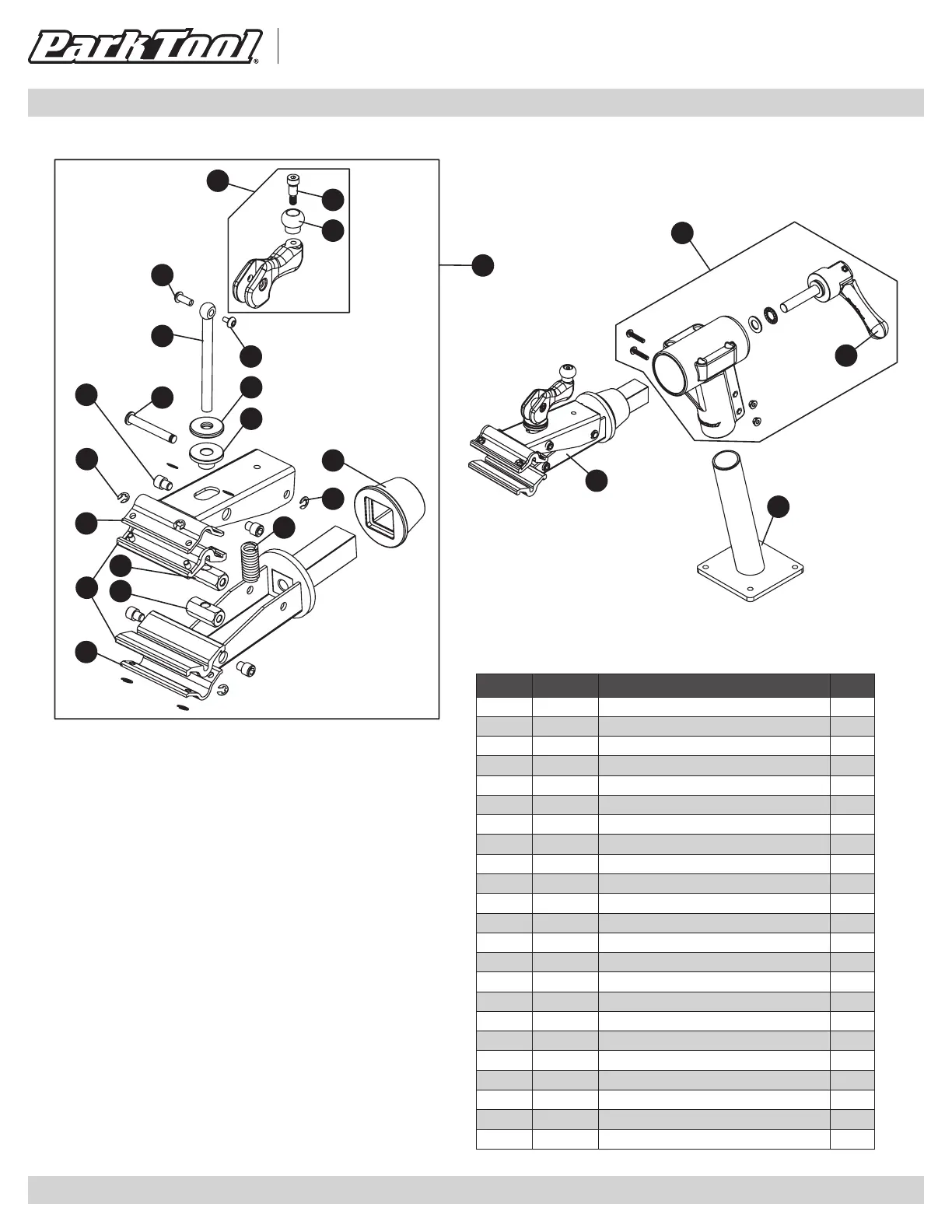

PCS-12 Parts / Pièces / Teile / Partes
© 2018 Park Tool Co.
PARK TOOL® and the color BLUE are registered trademarks of Park Tool Co.
09/18
Ref. # Part # Description Qty.
1 1458-12 Complete Top Tube Assy. 1
2 1793 Swing Handle 1
3 1794 Bench Mount 1
4 1795W Complete Clamp 1
5 107-2 Clevis Pin C-Clip 1
6 1184 Jaw E-Clip 4
7 1185K Jaw Cover Set (including E-Clips) 1
8 1800 Tapered Compression Cone 1
9 1801W Rotating Jaw 1
10 1802W Moveable Jaw 1
11 1803 Hex Barrel-Threaded 1
12 1804 Hex Barrel-Unthreaded 1
13 1805-4 Cap Screw 4
14 1806 Spring 1
15 1807 Clevis Pin 1
16 1808X Step Bushing 1
17 1809 Nylon Washer 1
18 1810 Clamp Screw 1
19 1964 Handle Screw 1
20 1965 Handle Screw Cap 1
21 1966A Cam Handle Assembly 1
22 1967 Cam Handle Knob 1
23 1968 Cam Handle Knob Screw 1
