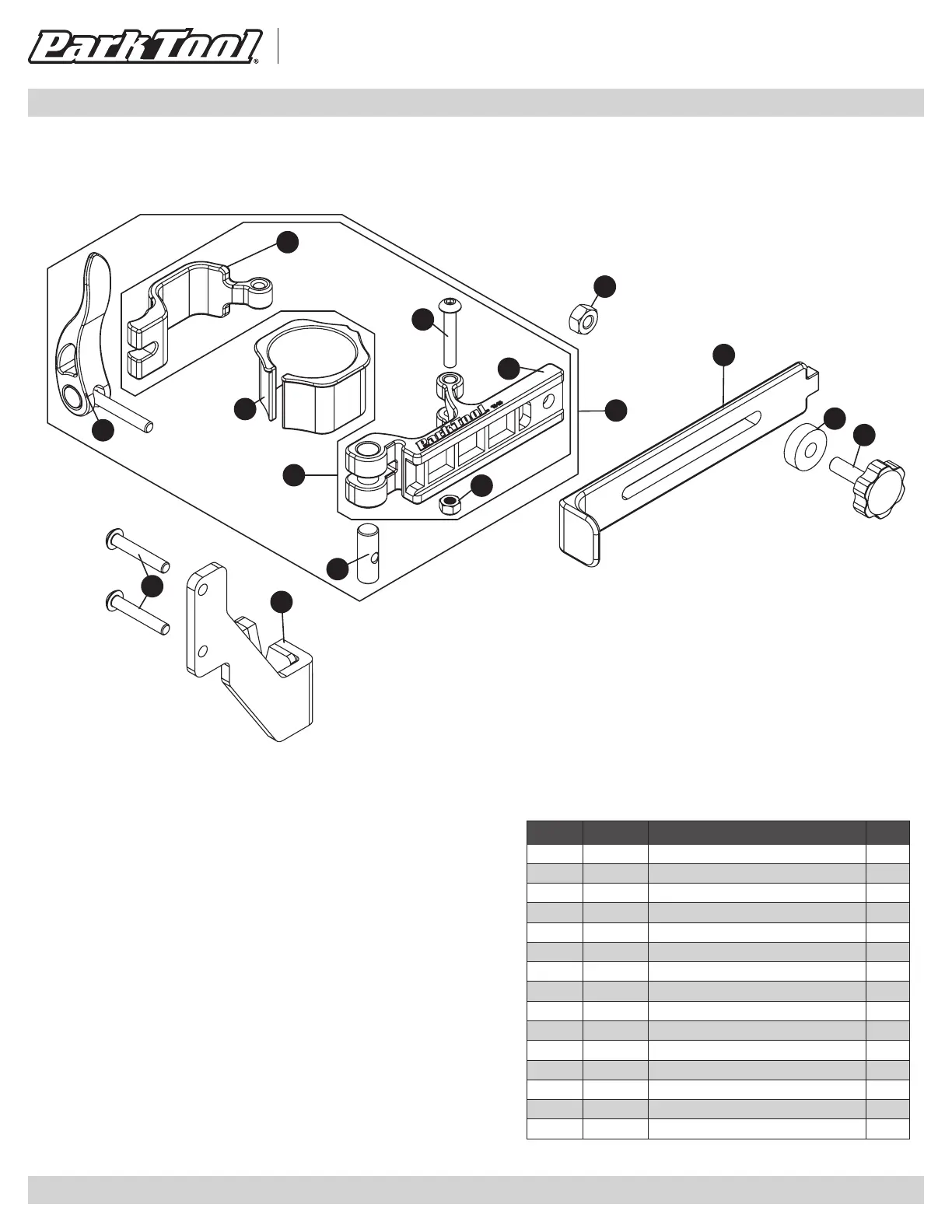

TS-25 PART NUMBERS
Ref. # Part # Description Qty.
1 1936A-4 Gauge Side Collar 1
2 1936A-2 Non-Gauge Side Collar 1
3 1936A-3 Adapter Sleeve 1
4 1936A-7 Quick Release Barrel 1
5 1936A-6 Nylon Insert Locknut 1
6 1936A-5 Button Head Cap Screw 1
7 1293 Gauge 1
8 131S Hex Nut 1
9 494 Gauge Spacer 1
10 259 Knob and Shaft 1
11 1936A-1 Quick Release Assembly 1
12 1935 Wheel Bracket 1
13 943-2 Socket Head Cap Screw 2
14 1936B Replacement Bracket Assembly —
15 1936A Gauge Holder Assembly —
