Parks 12 - Parts List - Figure No. 3

k43
k61
·60

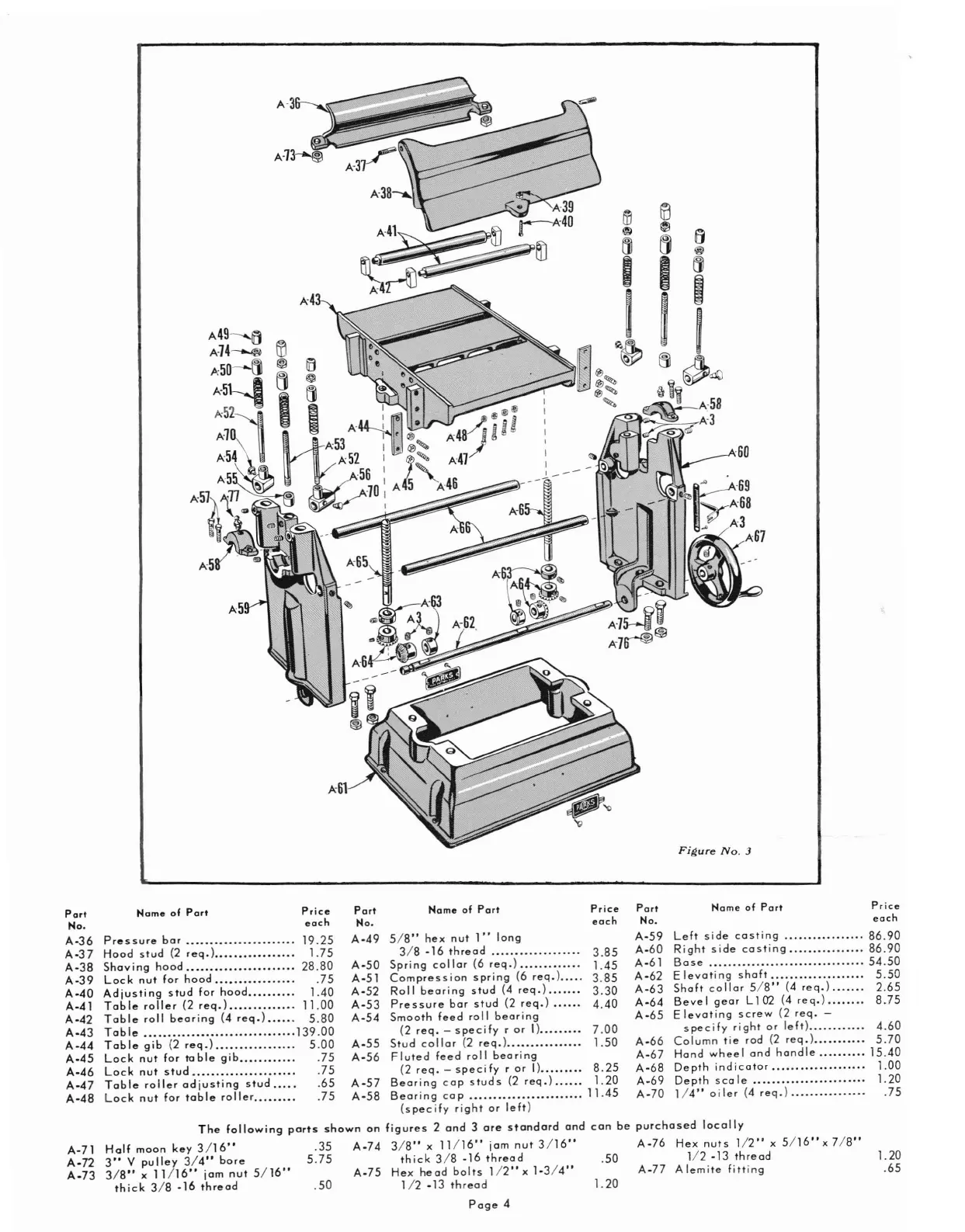

Figure No.3
Part
Name of Part
Price Part
Name of Part
Price
Part
Name of Part
Price
each
each No.
each No.
No.
A.36 Pressure bar 19.25 A·49 5/8" hex nut 1" long A-59 Left side costing 86.90
A.37 Hood stud (2 req.l.. 1.75 3/8 -16 thread 3.85 A-60 Right side costing 86.90
A-38 Shoving hood 28.80 A-50 Spring collar (6 req.) 1.45 A-61 Bose 54.50
A-39 Lock nut for hood .75 A-51 Compression spring (6 req.) 3.85 A-62 Elevating shaft 5.50
A.40 Adjusting stud for hood 1.40 A·52 Roll bearing stud (4 req.) 3.30 A·63 Shaft collar 5/8" (4 req.) 2.65
A-41 Table roller (2 req.) 11.00 A-53 Pressure bar stud (2 req.) 4.40 A-64 Bevel gear L102 (4 req.) 8.75
A-42 Table roll bearing (4 req.) 5.80 A-54 Smooth feed roll bearing A-65 Elevating screw (2 req. -
A.43 Table 139.00 (2 req. - specify r or I) 7.00 specify right or left) 4.60
A.44 Table gib (2 req.) 5.00 A-55 Stud collar (2 req.) 1.50 A-66 Column tie rod (2 req.) 5.70
A-45 Lock nut for table gib............ .75 A-56 Fluted feed roll bearing A-67 Hand wheel and handle 15.40
A-46 Locknut stud 75 (2req.-specify ror I) 8.25 A-68 Depth indicator 1.00
A-47 Table roller adjusting stud..... .65 A.57 Bearing cop studs (2 req.) 1.20 A-69 Depth scale 1.20
A-48 Lock nut for table roller......... .75 A.58 Bearing cop 11.45 A·70 1/4" oiler (4 req.)................ .75
(specify right or left)
The following ports shown on figures 2 and 3 are standard and can be purchased locally
A-71 Half moon key 3/16" .35 A·74 3/8" x 11/16" jam nut 3116" A·76 Hex nuts 1/2" x 5/16" x 7/8"
A.72 3" V pulley 3/4" bore 5.75 thick 3/8 .16 thread .50 1/2 -13 thread 1.20
A.73 3/8" x 11/16" jam nut 5116" A-75 Hex head bolts 112"x 1-3/4" A-77 Alemite fitting .65
thick 3/8 .16 thread .50 1/2 -13 thread 1.20
Page 4
