DT-5.2 Parts
© 2018 Park Tool Co.
PARK TOOL® and the color BLUE are registered trademarks of Park Tool Co.
08/18
1
2
6
11
12
29
13
14
17
21
22
23
24
25
27
26
28
30
31
18
19
20
16
15
9
3
8
4
5
7
10

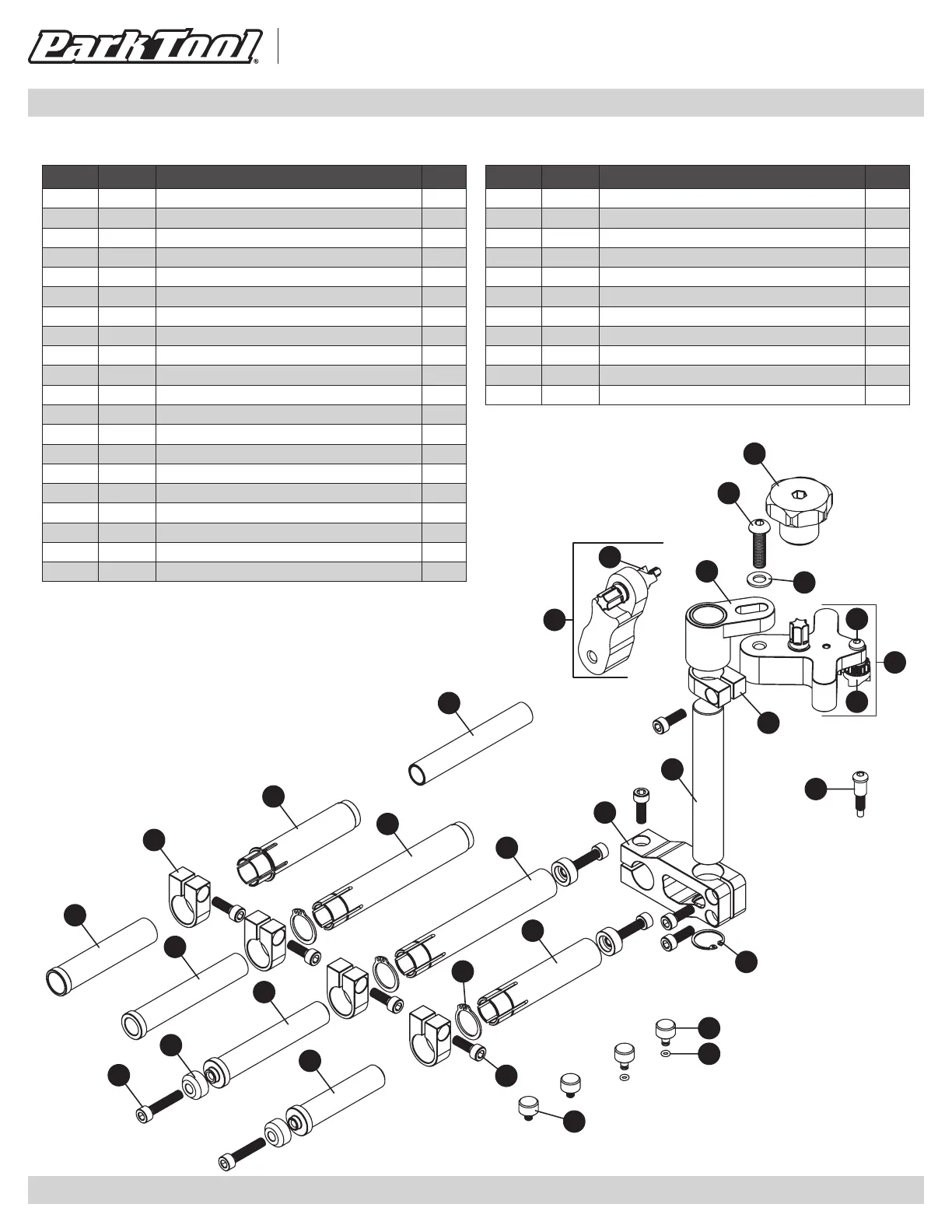

Ref. # Part # Description Qty.
1 2160 Body 1
2 2161 Shaft 1
3 2162 Stop Collar 1
4 2163-4 Pinch Bolt (M6 x 18mm) 8
5 2164 Snap Ring 1
6 1888 Pivot Bolt (M8 x 30mm) 1
7 1877-2 Washer 1
8 2165A Arm Assembly — Post Mount/Flat Mount 1
9 2174A Knob 1
10 2180A Arm Assembly — IS Mount 1
11 2182A Slider 1
12 2190 15mm Female Axle 1
13 2191 15mm Male Axle 1
14 2184 12mm Female Axle 1
15 2185 12mm Male Axle 1
16 1775-2 Retaining Ring 3
17 2186 10mm Female Axle 1
18 2187 10mm Male Axle 1
19 1773-4 Axle Washer 4
20 1771 Axle Bolt (M6 x 30) 4
Ref. # Part # Description Qty.
21 2188 9mm Female Axle 1
22 2189 9mm Male Axle 1
23 2194 12mm Front Adaptor 1
24 2192-2 Unthreaded Alignment Stud 2
25 2193-2 1.5mm O-Ring 2
26 2195 Pilot Bolt with 4mm Pilot 2
27 2196-2 Threaded Alignment Stud 2
28 2169 Pilot Bolt with 5mm Pilot 1
29 2162 Axle Collar 4
30 2179 IS Mount Cutter 1
31 2171 Post Mount Cutter 1
