Parr Instrument 4703 User Manual

General Purpose Pressure Vessels
www.parrinst.com
27
Note: For special material vessels add material code for head, cylinder and/or internal fittings per page 12.
Series 4660Q
Model Size Head Style
4661Q 3.78 L One opening, TBD
4662Q 3.78 L VGR, thermowell
4665Q 7.99 L One opening, TBD
4666Q 7.99 L VGR, thermowell
Part No. Description O-ring Seal
2690HC9 Head, VGR (two valves) & thermowell
2690HC6 Head, one 1/4” NPT opening
2692HC10 Cylinder, 3.78 L (1 gal), 8.62" deep
2692HC20 Cylinder, 7.99 L (2 gal), 17.25" deep
A2265HC Split Ring with latches
48HC Thermowell gasket, silver
48HCCN Thermowell gasket, nickel
48HCFG Thermowell gasket, gold plated
265HC4 Thermowell, 8" deep
A935HC Thermowell, 16.68" deep
A472E6 Thermocouple, 15-1/2”, 1 G
A472E5 Thermocouple, 21-1/2”, 2 G
56HCPD Pressure gauge, 4-1/2", 0-1000 psi
56HCPF Pressure gauge, 4-1/2", 0-2000 psi
56HCPG Pressure gauge, 4-1/2", 0-3000 psi
2691HCJV O-Ring, FKM
2691HCJE O-Ring, EP
A129VB Valve, Straight, 1/4"NPT (M) x 1/4"T
A130VB Angle Valve, 1/4"NPT (M) x 1/4"T
A131VB Angle Valve, 1/4"NPT (M)
A147VB Valve, Straight, 1/4”NPT (M)
A707HC2
Rupture Disc Assembly
(See Manual 231M)
708HCP10CT Rupture disc, Inconel, 1000psi
708HCP20CT Rupture disc, Inconel, 2000 psi
708HCP30CT Rupture disc, Inconel, 3000 psi
658HC Valve Extension
208HC15 Gage Adapter, (2) 1/4” NPTF
94CA Plug, Hex Head 1/4” NPT, Brass
686HC Dip Tube, 1 G
686HC3 Dip Tube, 2 G
A92HWAD Connector for Dip Tube
2587HC Head/Cylinder Service Fixture
894HC Pyrex Liner, 1 G
894HC2 Pyrex Liner, 2 G
894HC4HA PTFE Liner, 1 G
894HC5HA PTFE Liner, 2 G
Working Limits
Maximum Working Pressure
(T316SS) 1900 psi (131 bar)
Maximum Working Temperature
with FKM O-ring 225 °C
Maximum Working Temperature
with FFKM O-ring 300 °C

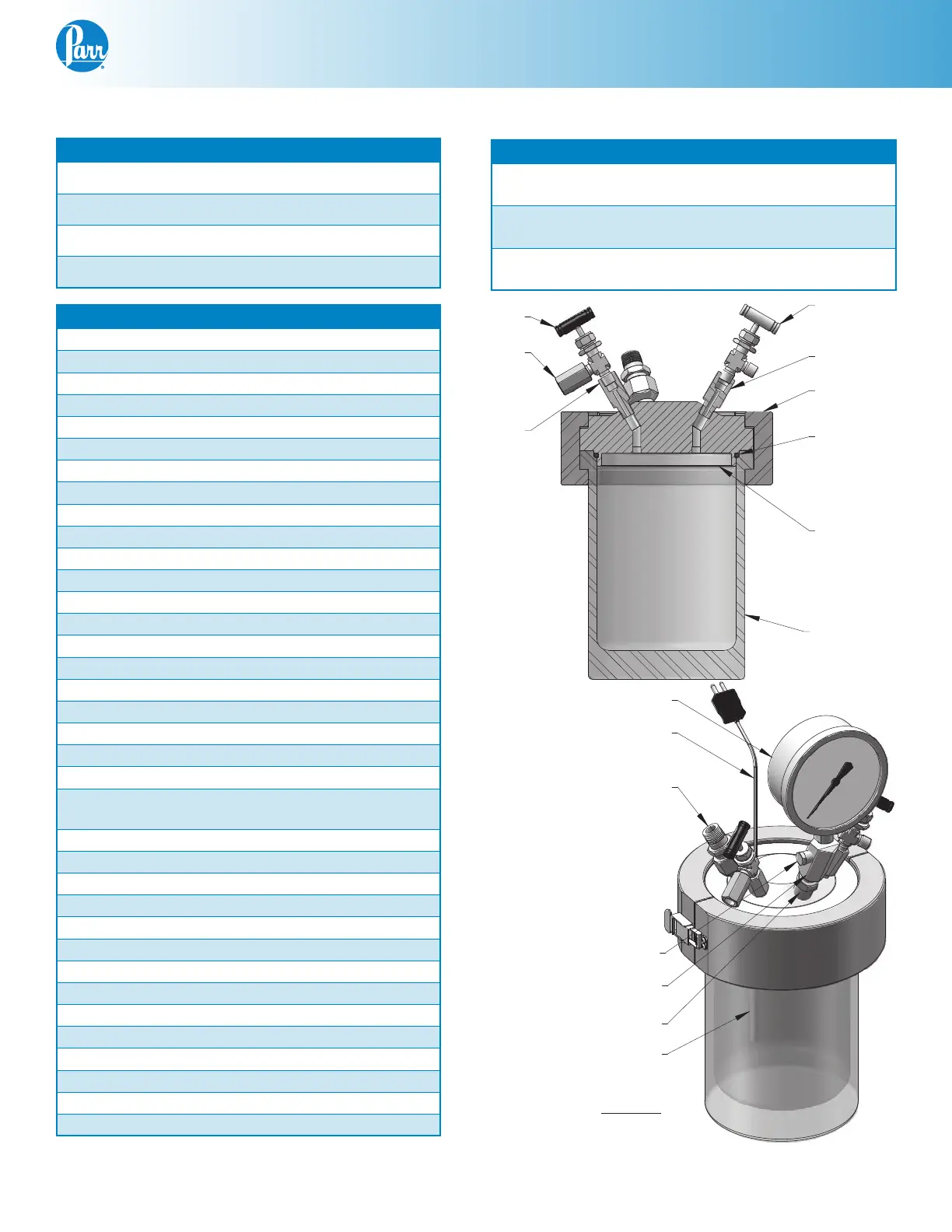

A131VB
ANGLE VALVE
420HC2
ADAPTER
A131VB
ANGLE VALVE
A2265HC
SPLIT RING ASSY
2691HCJV
O-RING
2690HC9
HEAD
2692HC20
CYLINDER, 2 GAL
658HC
ADAPTER, VALVE
2692HC10
CYLINDER, 1 GAL
658HC
ADAPTER, VALVE
686HC DIP TUBE, 1 GAL
(OPTIONAL)
A92HWAD MALE CONNECTOR
PRESSURE GAGE
56HC SERIES
686HC3 DIP TUBE, 2 GAL
(OPTIONAL)
THERMOCOUPLE 2 GAL
A472E5
THERMOCOUPLE 1 GAL
A472E6
SERIES R/D
708HCP
PLUG
94CA
GAGE ADAPTER
208HC15
BUSHING
209HC4
R/D HOLDER ASSY
A707HC2
NOT SHOWN:
48HC SERIES GASKET
THERMOWELL 2 GAL
A935HC
THERMOWELL 1 GAL
265HC4
