PAS Audio DS 22 - Technical Specifications; Input;Output Connector Details

audio professional Seite 8
Specifications:
Threshold set -14 dBv bis +13dBv
Ratio ∞ :1
Attack Time (100% recovery) auto
Release Time (100% recovery) auto
Frequency response (0.5dB) 10Hz-50KHz
Gain 0dB
Nominal Input Level 0dBV
Inputs/Outputs XLR
Input/Output level max. +21 dBu
Input impedance electronically balanced 20 KOhm
Output impedance electronically balanced. 60 Ohm
Signal to noise ratio (22Hz-22KHz, 0dB Gain) < 97dBu
THD < 0.01%
Limiting VCA
Display limiting LED rot
Display stereo-coupled LED gelb
Display Power Supply LED rot
Power Requirements 220-230VAC 50/60Hz
Dimensions (WxHxD) 19" 1HE (44x483x175 mm)
Input/Output connectors
Input balanced Output balanced Gain
2) (+) 2) (+)
3) (-) 3) (-) 1.0 = 0dB
1) shield 1) shield
------------------------------------------------------------------------
---------------------------------------------------------------------------
Input balanced Output unbalanced Gain
2) (+) 2) (+)
3) NC 3) NC 0.25 = -12dB
1) shield 1) shield
---------------------------------------------------------------------------
Input unbalanced Output unbalanced Gain
2) (+) 2) (+)
3) shield 3) NC 0.50 = -6dB
1) shield 1) shield
---------------------------------------------------------------------------
Input unbalanced Output balanced Gain
2) (+) 2) (+)
3) shield 3) (-) 1.0 = 0dB
1) shield 1) shield
---------------------------------------------------------------------------

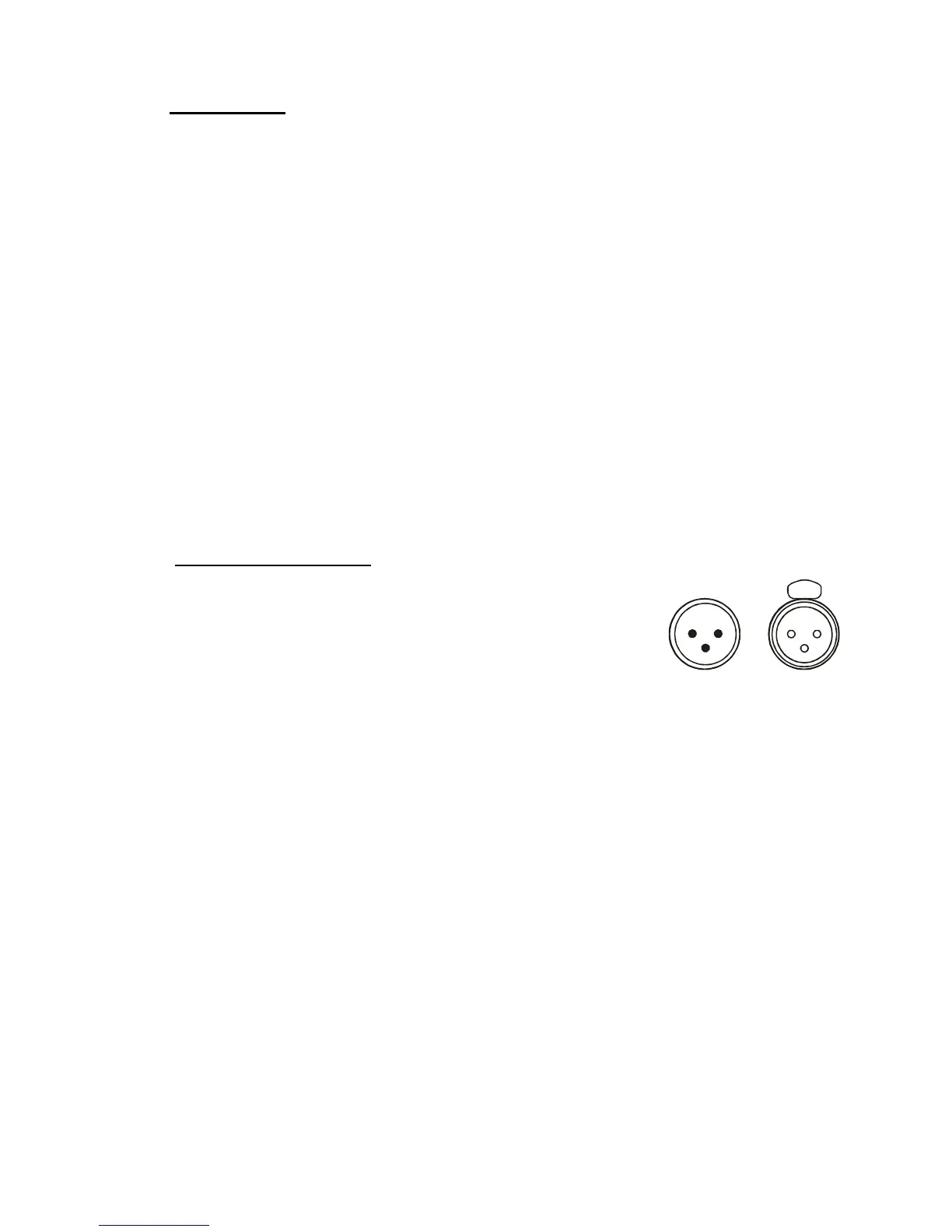

OUT
IN
1 2
2 1
3 3
