Model No. AP-8209 Photoelectric Effect Apparatus
24
Table 6: Stopping Potential of Spectral Lines, 4 mm diameter Aperture
The next two tables show typical data for Stopping Potential of Spectral Lines for the 2 mm and 8
mm diameter apertures.
Table 7: Stopping Potential of Spectral Lines, 2 mm diameter Aperture
Table 8: Stopping Potential of Spectral Lines, 8 mm diameter Aperture

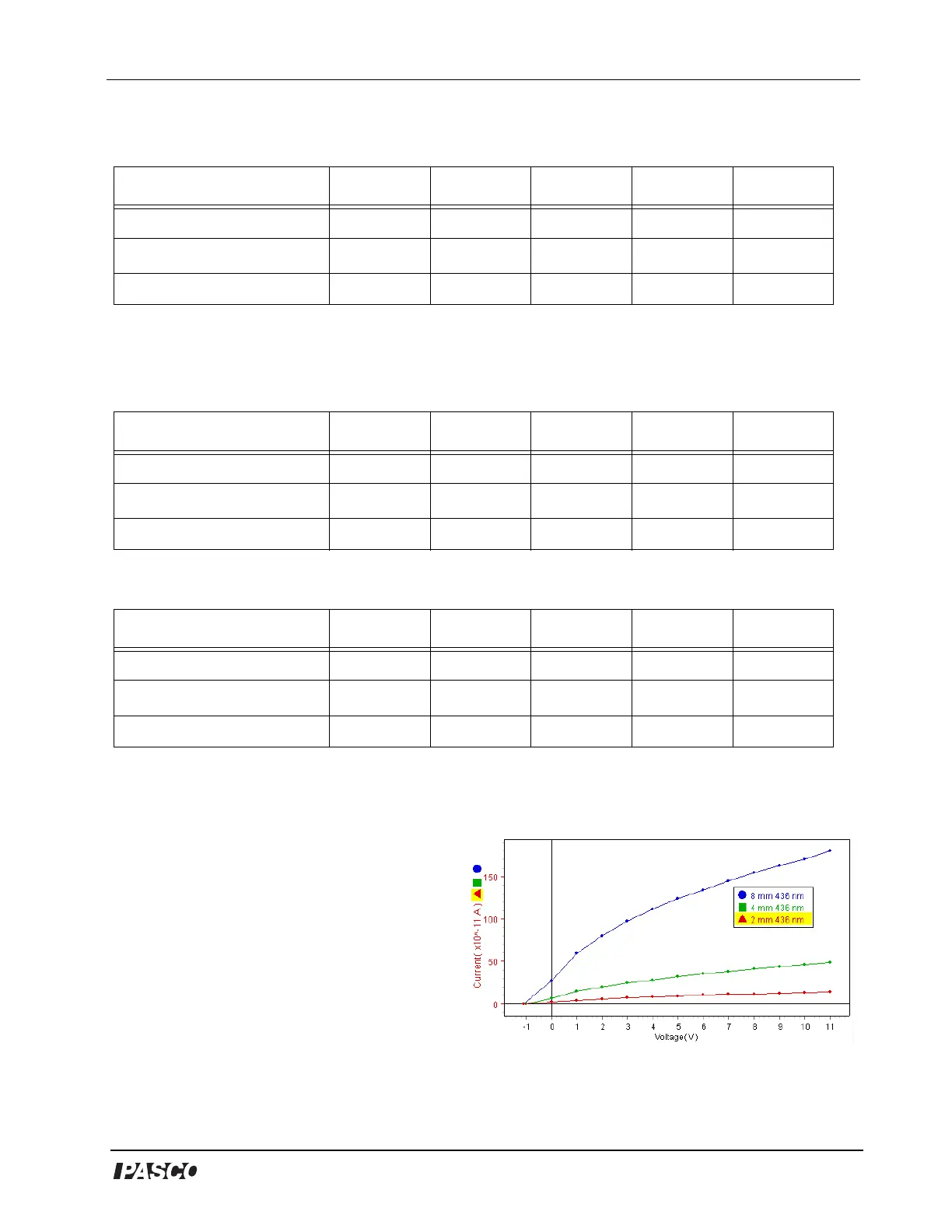

Experiment 2: Measuring Current-Voltage Characteristics of Spectral Lines -
Constant Frequency, Different Intensity
The illustration shows typical data for
current versus voltage for a single spectral
line (435.8 nm) with three different
apertures.
The next table shows typical data for current
versus voltage for a constant frequency and
three different apertures.
Item 12345
Wavelength, λ (nm) 365.0 404.7 435.8 546.1 577.0
Frequency,
ν=
c/λ, (x 10
14
Hz)
8.214 7.408 6.879 5.490 5.196
Stopping Potential, V (V) 1.622 1.274 1.068 0.518 0.384
Item 12345
Wavelength, λ (nm) 365.0 404.7 435.8 546.1 577.0
Frequency,
ν
, (x 10
14
Hz)
8.214 7.408 6.879 5.490 5.196
Stopping Potential, V (V) 1.596 1.253 1.053 0.514 0.382
Item 12345
Wavelength, λ (nm) 365.0 404.7 435.8 546.1 577.0
Frequency,
ν
, (x 10
14
Hz)
8.214 7.408 6.879 5.490 5.196
Stopping Potential, V (V) 1.652 1.299 1.081 0.526 0.390
Current-Voltage, Constant Frequency
