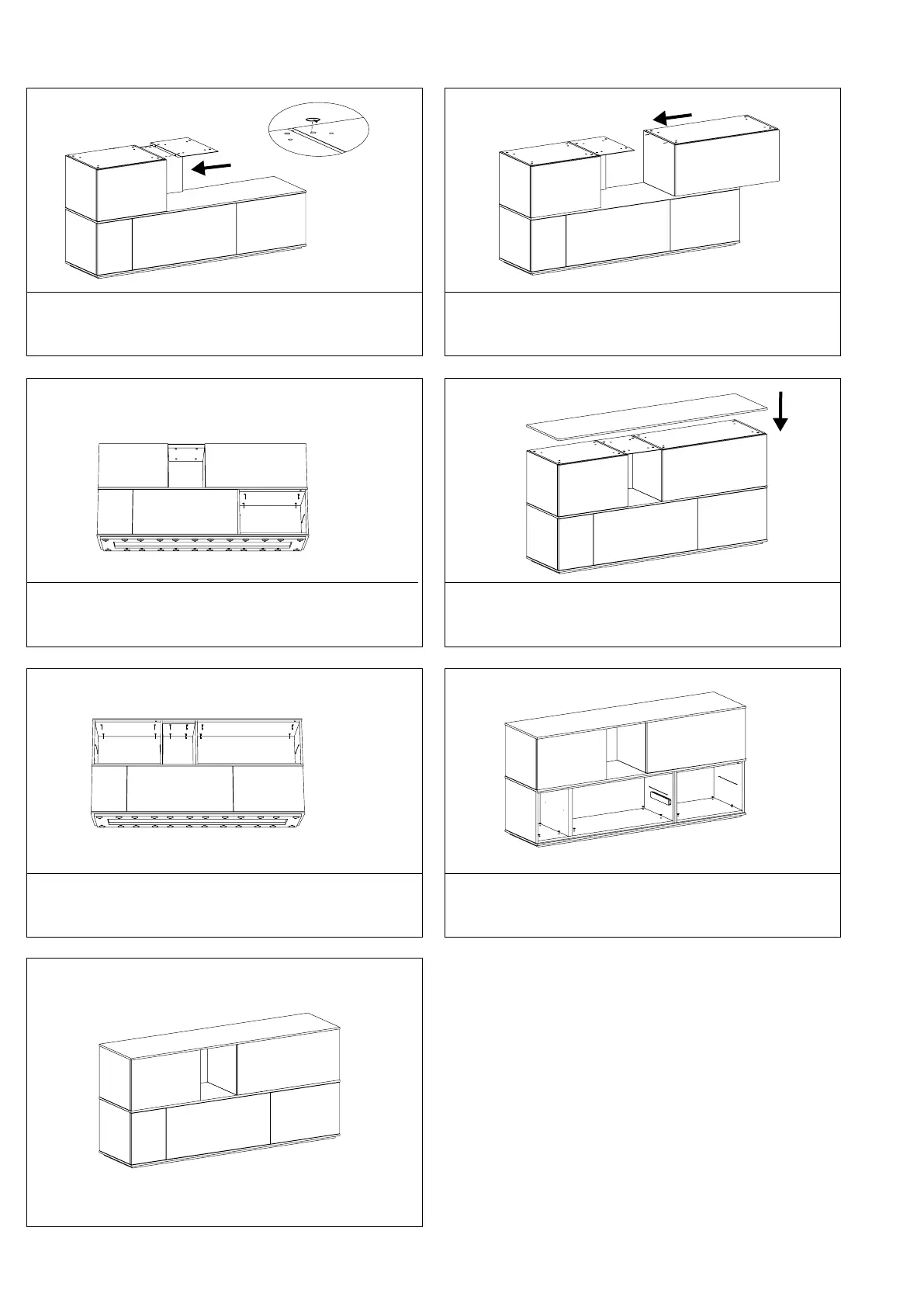

screw the eccentric bolt into the side of the body and slide the
open compartment construction plank into position. Secure this
by tightening the minifix (H).
Place the next body on the divider. Place the eccentric bolts (G) in
the side and slide it against the construction plank. Secure by
tightening the minifix (H).
Secure the body from the body underneath using the long bolts
(A=35mm).
Place the top.
Secure the top from the bodies underneath using the supplied
short bolts (B=20mm). NOTE! Be sure to use the short bolts for
this. The long bolts could damage the top.
9 OPEN COMPARTMENT 10 OPEN COMPARTMENT
11 12
13
Adjust the fronts and, if needed, adjust the cabinet again using
the adjustable feet attached to the bottom bodies. Place the
cover caps (C).
14
15
A
B
B B
B B B
BB
B B
BB
A
G
G
H
G
G
A
A
C
C
C
C
C
C
C
C
C
Assembly instructions
