pastoe LANDSCAPE - Wall Mounting Preparation

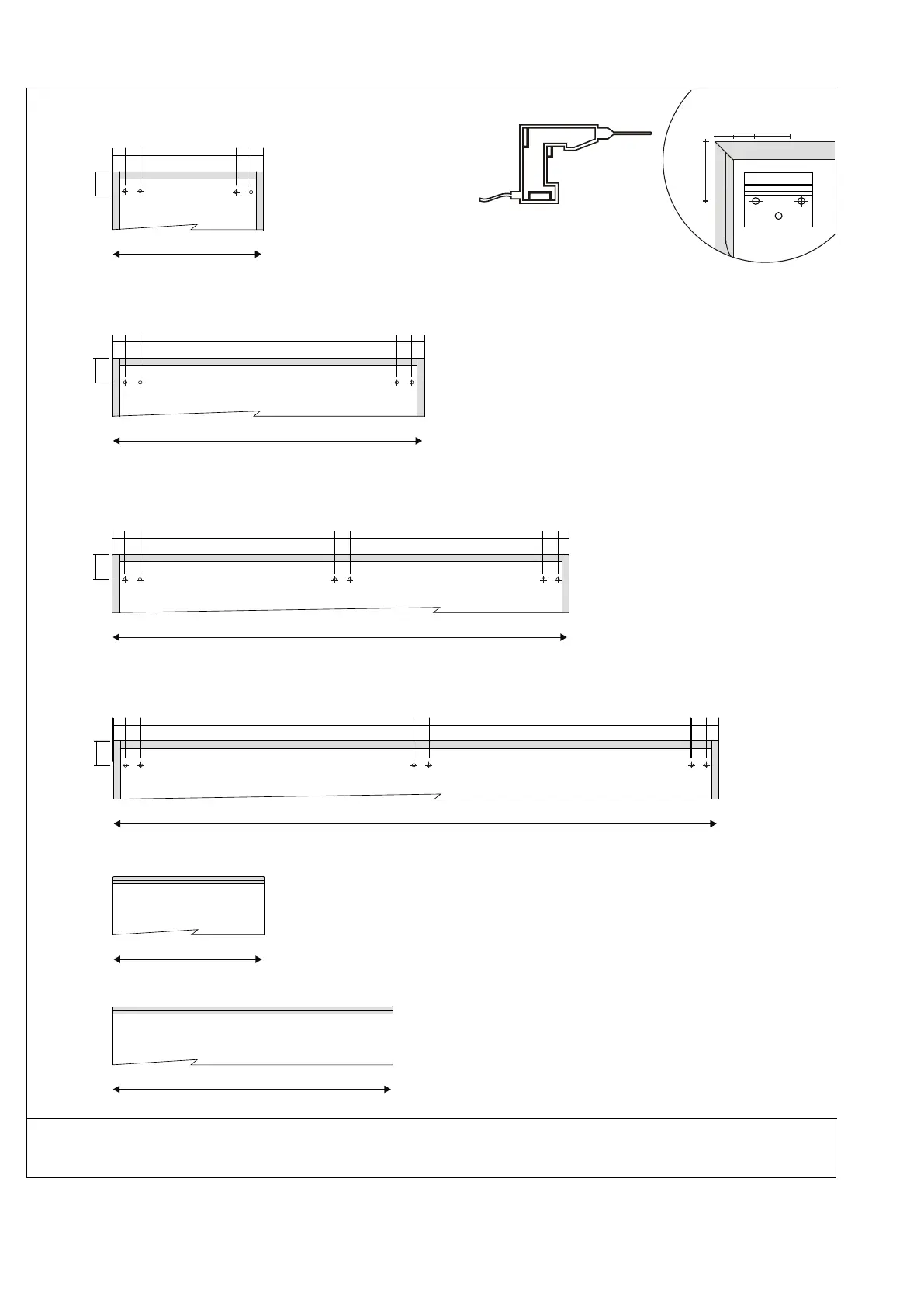

Holes to be drilled in the facing side:
Drill the required holes in the wall according to the width of the body. Open compartments do not require (or have) hangers. Do take the width
into account when measuring out where to drill the holes.
7
60
40 40 30
460
500 40 30
Body width1140mm
60
40 30
430
40 30
Body width 570mm
60
40 30
145
40 30
Body width 285mm
Open compartment width 285mm
Open compartment width 570mm
60
40 40 30
300
375 40 30
Body width 855mm
14
40
60
16
