Carefully remove the contents from the package. If any parts are missing do not
attempt to use the product until they have been obtained and correctly installed.
NOTE: This product is intended for residential, non-commercial use.
D
E
F
G
H
J
1 2
A 2
B
Chair Back
2
C
Chair Seat
8
D
Chair Leg
1
E
Table Top
3
F
Table Leg
1
G
Table Center Brace
26
H
Stud, M8 x 30
3
I
Bolt, M8 x 30
29
J
Washer, M8
Nut, M8 29

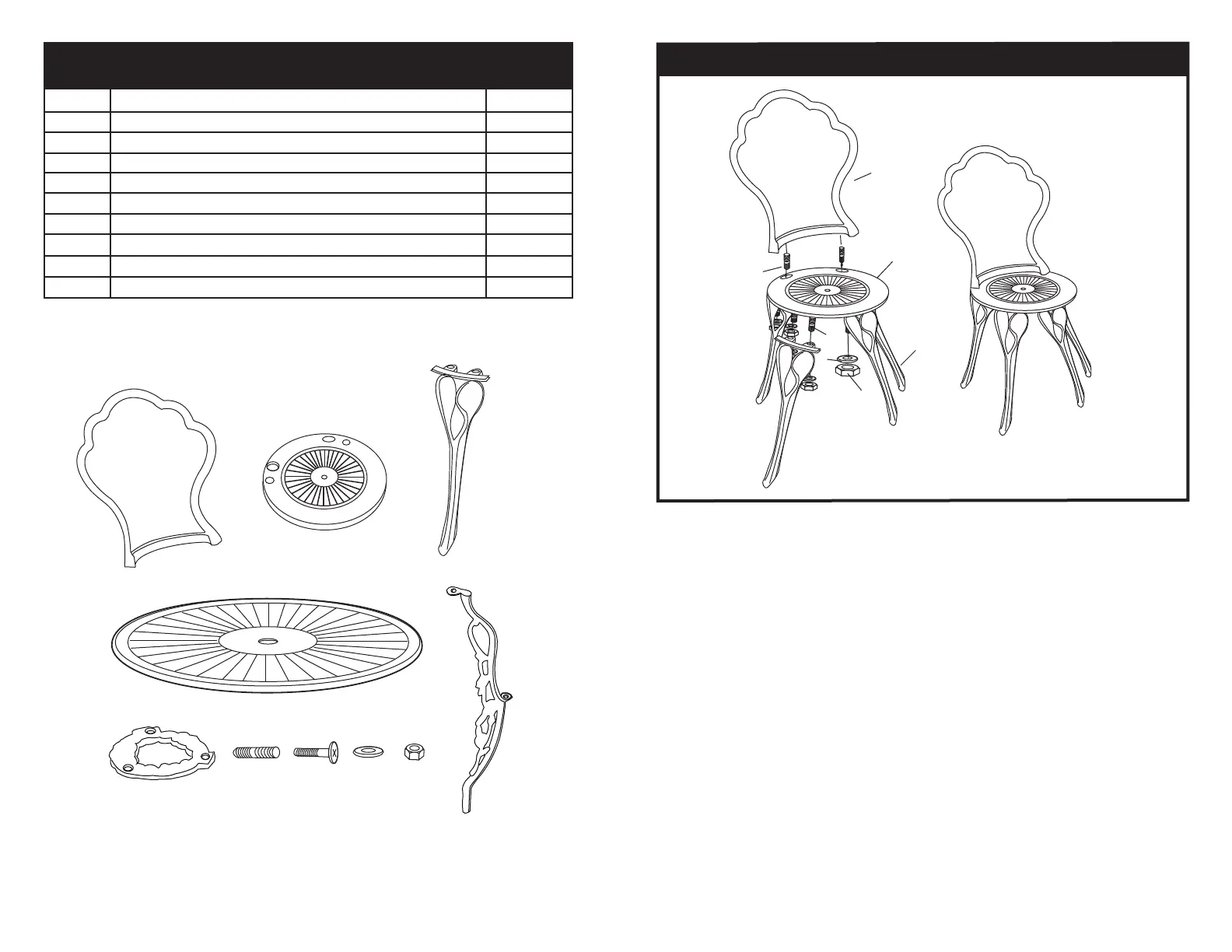

PARTS & HARDWARE LIST
PART # DESCRIPTION QUANTITY
A
B
C
I
ASSEMBLY INSTRUCTIONS
Figure 1
A
B
C
G
G
J
I
CAUTION: Do not over tighten fasteners.
1. (SEE FIGURE 1) Thread studs (G) into holes on bottom of chair back (A). Insert studs (G) on chair
back (A) through holes on chair seat (B) top side.
2. With chair back (A) in place, thread studs in bottom holes of chair seat (B) next to studs of chair
back. Insert chair leg (C) onto chair seat (B) studs, connecting the chair back, seat and leg.
3. Secure leg, seat and back with washers (I) and nuts (J).
4. Attach remaining legs, repeat step 2 and step 3.
5. Assembly second chair in same manner, repeat steps 1 - 4.
