E9 PRODUCT MANUAL
RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM

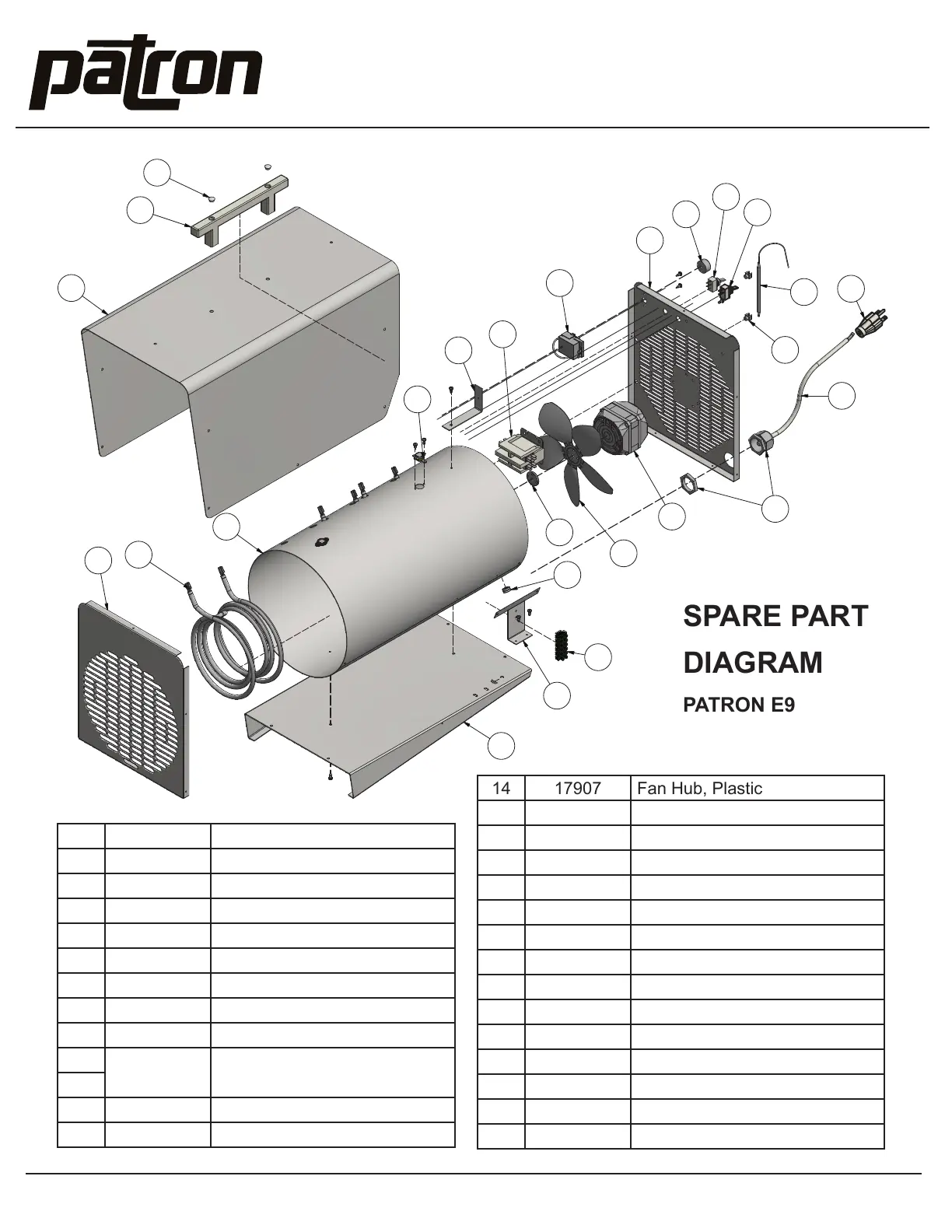

SPARE PARTS
DIAGRAM
PATRON E9
1 4008001 Bottom Plate
2 4008003 Rear Panel
3 4008002 Front Panel
4 4008004 Inner Mantle
5 4008005 Outer Mantle
6 4008006 Bracket, Inner Mantle
7 4008007 Bracket, Terminal Block
8 21200 Overheat Limit Switch
9 37910 Plastic Bracket for Thermostat
10
20220 Ambient Thermostat
11
12 20577 Knob for Thermostat 20220
13 14201 Fan Motor
14 17907 Fan Hub, Plastic
15 16110 Fan Blade
16 80100 Handle
17 42800 Heating Element
18 80110 Plug for Handle (2/Pk)
19 34080 Plug
20 36922 Strain Reliever
21 26902 Toggle Switch
22 22670 Contactor
23 30100 Power Cord (per Foot)
24 36809 Guard Ring/Wire Bushing
25 36704 Terminal Block
26 26900 Toggle Switch 6kW (Optional)
*** 30346 Grounding Lug
*** 4008008 Complete Decal Kit
®
Käyttöohjekuva
Käyttöohjeen mukainen osanumerointi.
Numerointi ei vastaa valmistuskuvien numerointia.
5
16
3
17
4
1
11
2
13
8
15
21
22
14
24
7
23
10
9
12
6
20
25
18
19
26
Osanumerot ohisyötöllä!
