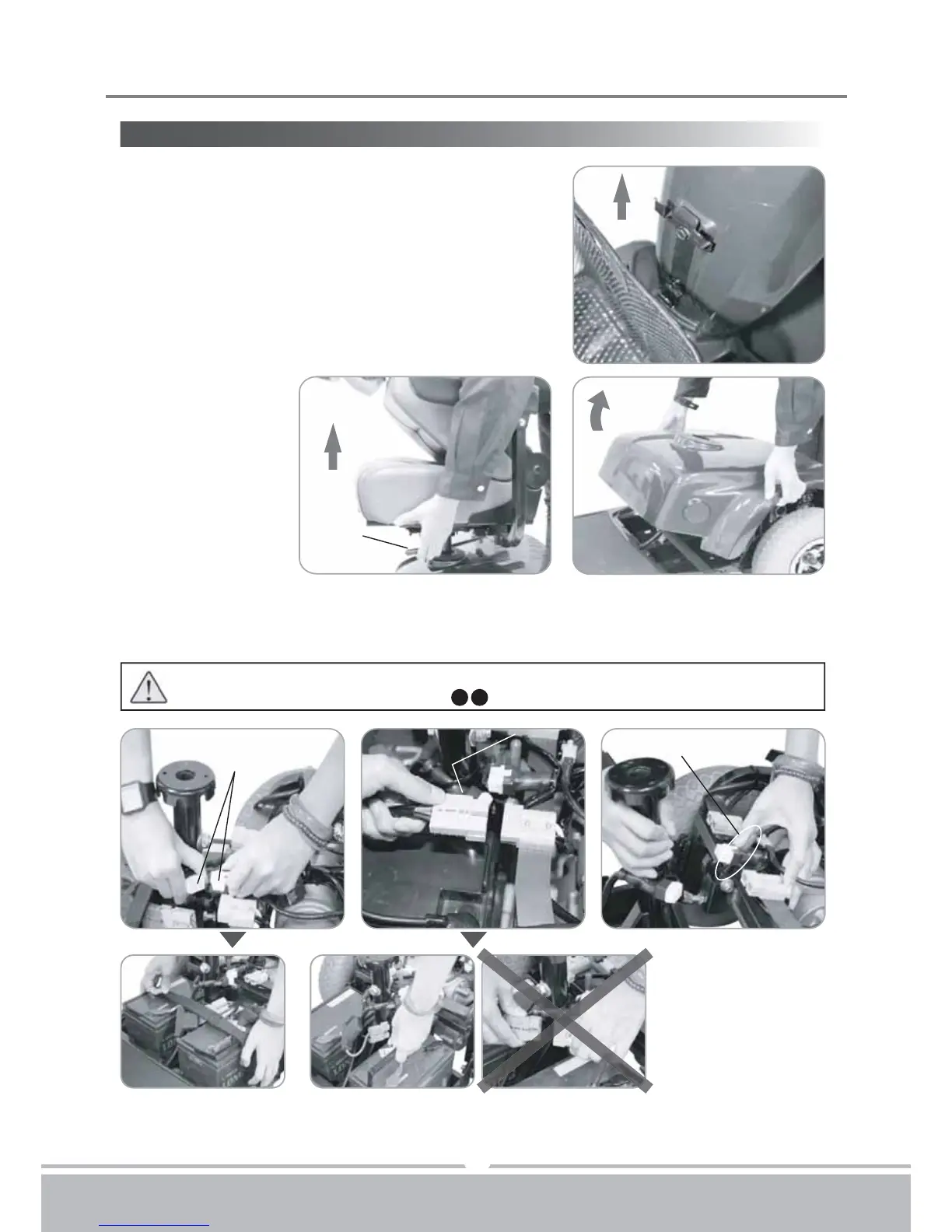

DISASSEMBLING YOUR SCOOTER
Disassembling Basket
By lifting the basket (O) upwards.
Disassembling Seat
By lifting lever (H) and seat (a) upward.
Rear Compartment Cover
Open the Compartment Cover (P) according to
arrow's direction.
Disassembling Batteries
Disconnect front&reat section wire harness (Q) , then tear off battery straps (R) and battery
terminals (S) to remove the batteries (b). (Figure.16 & 17)
Disassembling Front and Rear Frame
By pulling the frame hook comp (T) backwards to disconnect front and rear frame. (Figure.18)
Be careful when removing batteries, as batteries are heavy.
Do not contact battery terminal with any metals to avoid danger.
-
+
