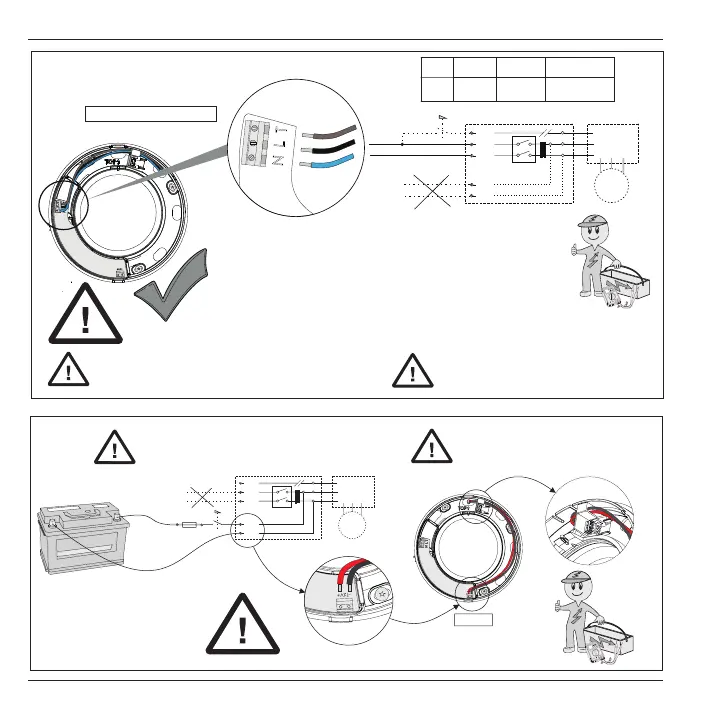

PAX Norte - Electrical Connection Details

14
N
L
100-240VAC
S
T
12VDC
+
_
M
T
1A
100-240VAC
12VDC
EN: NB! e integrated all-pole switch S only
functions at 100-240 V AC wiring.
EN: Connection of 100-240 V AC
and 12 V DC must not be done
simultaneously.
EN: NB! Pax recommends
that electrical connection
of 12VDC be perfor-
med by authorized
installer.
100-240 V c.a./50-60 Hz
L N T
Live Neutral Live switch
N
L
100-240VAC
S
T
12V DC
+
_
M
100-240VAC
12V DC
T
EN: NB! e integrated all-pole switch S only
functions at 100-240 V AC wiring.
EN: Connection of 100-240 V AC
and 12 V DC must not be done
simultaneously.
EN: Electrical connection Norte: auto.
100-240VAC 50/60Hz
Factory-set continuous basic ventilation, automatic forcing
at elevated humidity levels and under the inuence of
shanges in light. Option of accelerated air ow with 15
minutes run-on using manual switch T.
EN: NB! Wiring of 100-240 V AC must be performed
by a qualied electrician.
EN
EN
22.
21.
EN
EN/FR – For the installer / À l’usage de l’installateur
Installation guide / Manuel d’installation
