Installation
Step 1: Carefully mark out the mounting holes for the reader and the hole of the cable feed.
Step 2: Drill the marked holes for the mounting points and the cable feed. When drilling the holes, ensure
that you are aware of any hidden cables or pipes. Once the holes have been drilled, t the supplied wall
plugs and feed the cable through the cable feed hole before securing the reader to the wall using the
screws supplied.
Step 3: Fit the reader cover to the reader, and secure using the screw provided.
Step 1: Mark the mounting points for the power supply. Drill the four holes, t the wall plugs and
screw the power supply to the wall.
Step 3: Using the guides provided, make a gap for the cables on the power supply cover. Fit the cover,
feeding the cables through the gap. Do not connect the power supply to the mains until the lock is tted.
Once this is done, power the system up, and start programming the system.
Step 2: Run the black/red cables from the reader to the power supply. Attach the red wire to the 12V
power supply terminal, and the black wire to the 0V power supply terminal. The cables can be secured in
place using the cable clips provided. Please ensure that the cable is not damaged when tting the cable
clips. Fit the power lead provided.
Fitting the power supply

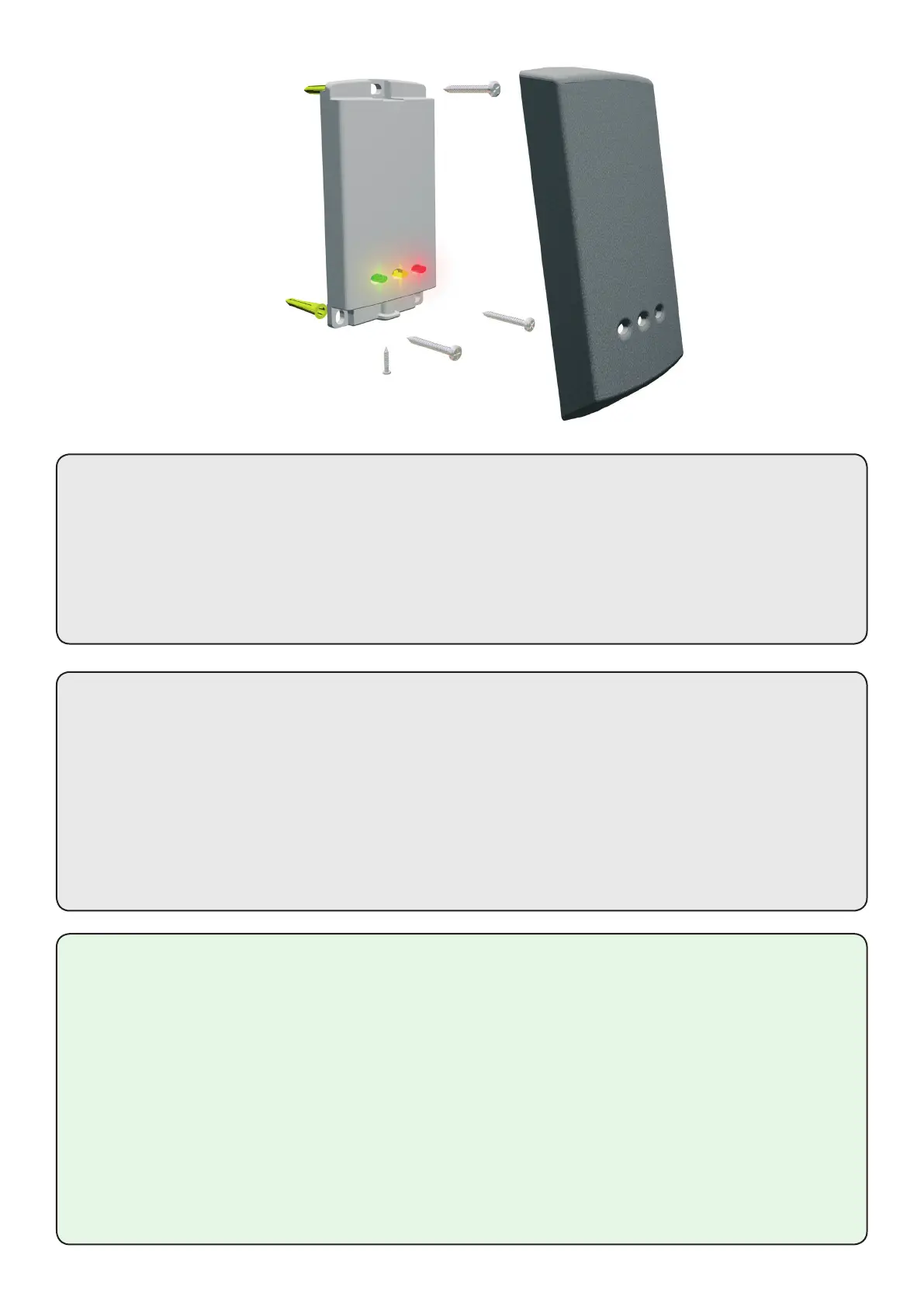

Fitting the reader
Should it be required, the system can be reset. There are two ways of doing this.
Only use one method to reset the system.
1. Power down the unit.
2. Press and hold the exit button.
3. Power up the unit. It will beep several times.
4. Wait for a further beep and then release and press
the exit button twice more while it beeps 3 times.
5. The reader will beep 6 times.
OR
1. Present Enrolment card.
2. Present Door open time card twice.
3. Present Enrolment card.
4. Present Door open time card twice.
5. WAIT FOR 5 SECONDS!
Full System Reset
