7
© 2021 PCS Edventures, Inc.
RubiQ BUILD PLAN
ASSEMBLY
PARTS
2
CAUTION

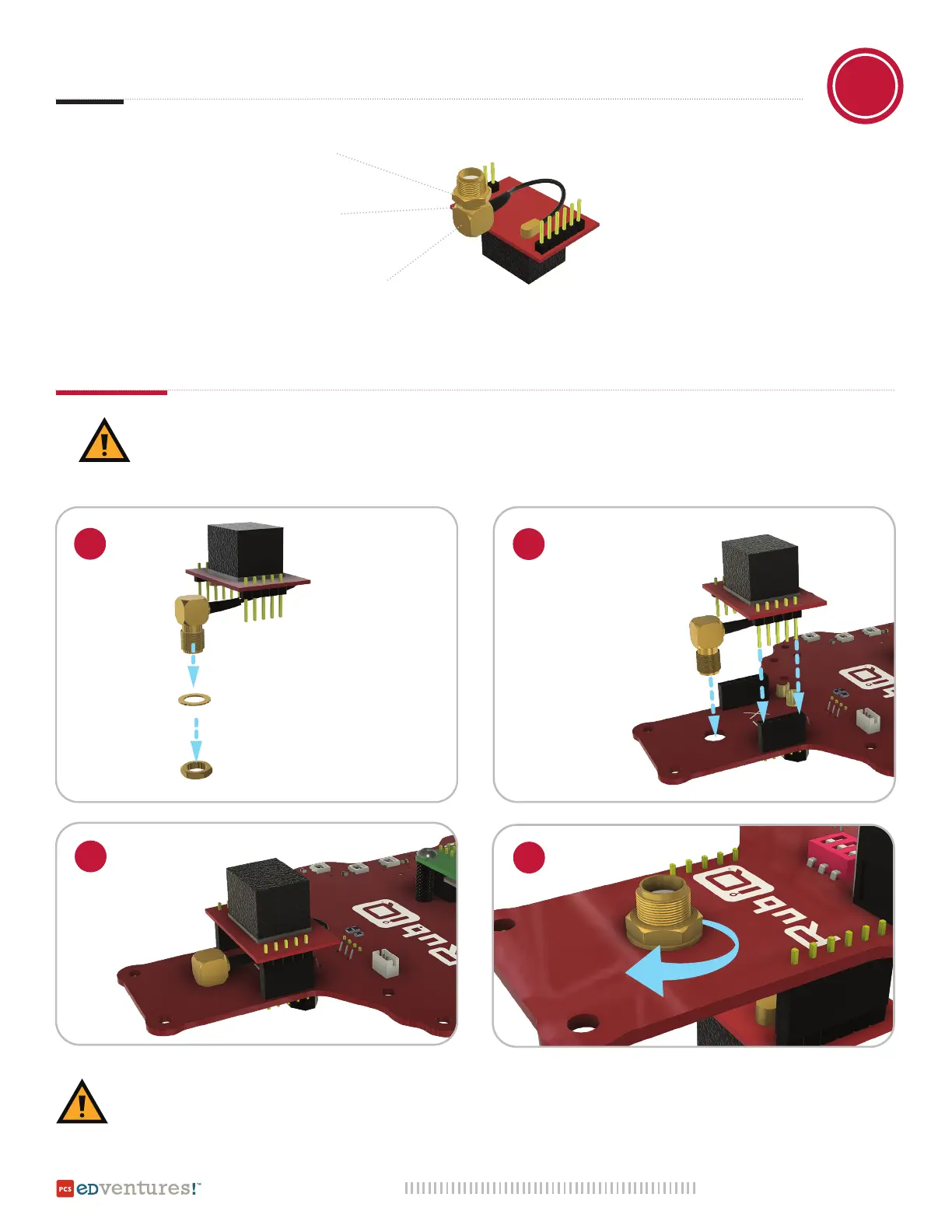

Orient the VTX so each pin slides into its own connector. One side of the VTX has 5 pins, while the
other has 6 pins. If there are any pins hanging outside of the connector, reverse the orientation of the
VTX. Failure to do so will result in the loss of FPV video feed.
Hold the square portion of the UFL to SMA Connector below the board and tighten the nut with the prop
wrench until snug. To avoid damaging the cable, do not allow the UFL to SMA Connector to twist as you
tighten the nut. Do not overtighten the nut, as this will strip the threads.
CAUTION
Video Transmitter (VTX)
1
3
4
2
UFL to SMA Connector
Lock Washer
Lock Nut
To Next Page
