Peaktronics 92 Series Manual

DHC-100
PEAKTRONICS U.S. Patent 7,466,100 applies to this product 9
< 3mA (4-20mA input)
Command Out of Range threshold
> 5.25V (0-5 VDC, 1-5 VDC input)
> 10.5V (0-10 VDC, 2-10 VDC input)
> 21mA (4-20mA input)
FEEDBACK SIGNAL INPUT
Input Voltage: 0 to 2.5 VDC
External Feedback Potentiometer: 1K ohm
POWER SUPPLY OUTPUTS
+15V OUT (J2-8): 100mA maximum (not including option module)
+5V OUT (J2-7): 20mA maximum
NOTE: Do not connect these outputs to other power supplies.
AC MOTOR OUTPUTS
Off-state Leakage Current: <15mA
Maximum Load Current @ 60C: 5A
ENVIRONMENTAL
Operating Temperature Range: 0 C to 60 C
Storage Temperature Range: -40 C to 85 C
Relative Humidity Range: 0 to 90 % (noncondensing)
OPTION MODULES
Various option modules can be plugged into the
DHC-100 option module connector, J3. Option modules
provide additional features such as position feedback sig-
nals, auxiliary switch outputs, or digital communications.
Contact the factory for the latest available modules. Refer
to the diagram below for instructions on installing an op-
tion module.

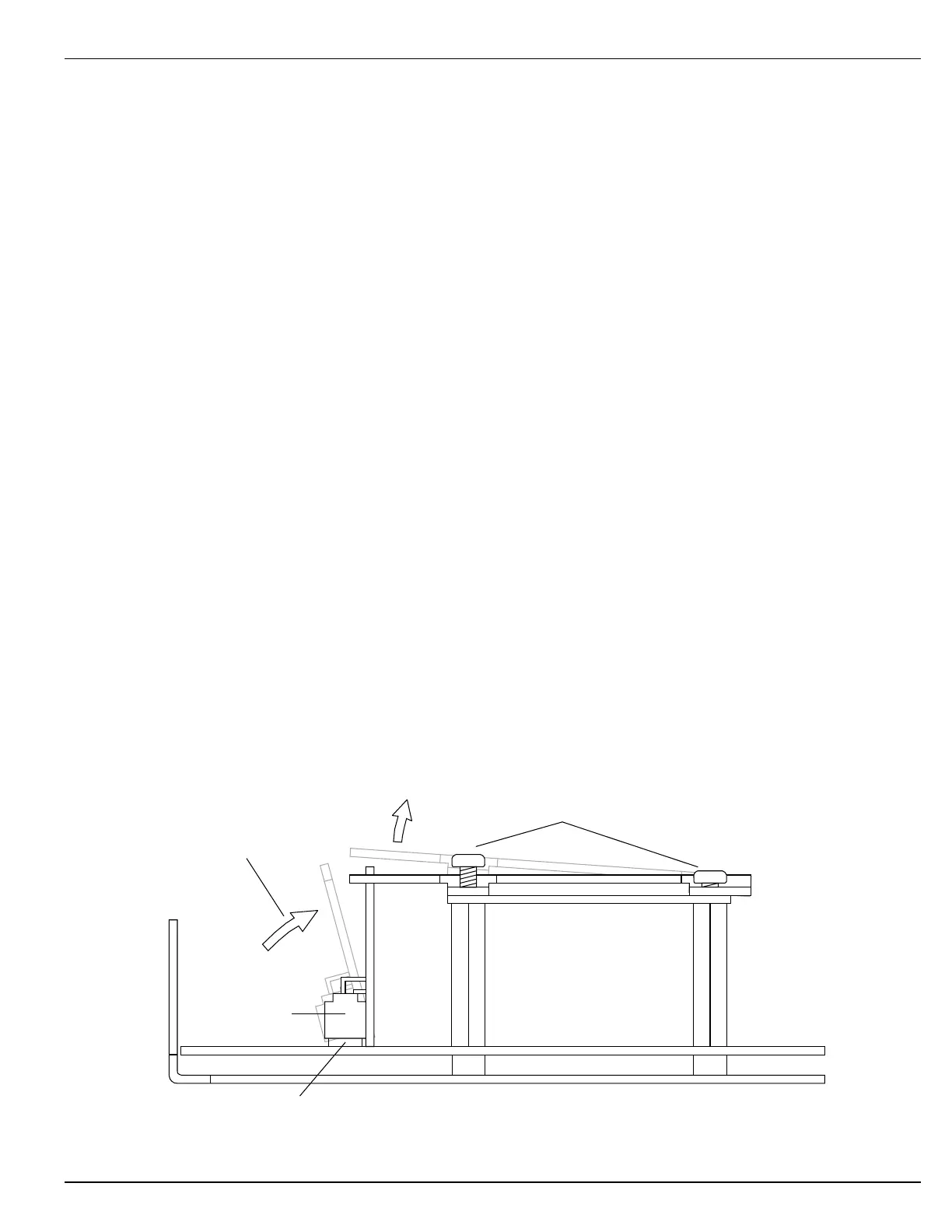

Plug option module into J3,
lock module in front panel
slots, and retighten front
panel screws.
DHC Series
Option
Module
J3
Loosen front panel screws and lift front panel up to
allow option module to plug in underneath.
Installing an Option Module
