DHC-100
PEAKTRONICS U.S. Patent 7,466,100 applies to this product 11
WIRING DIAGRAMS
Special Applications

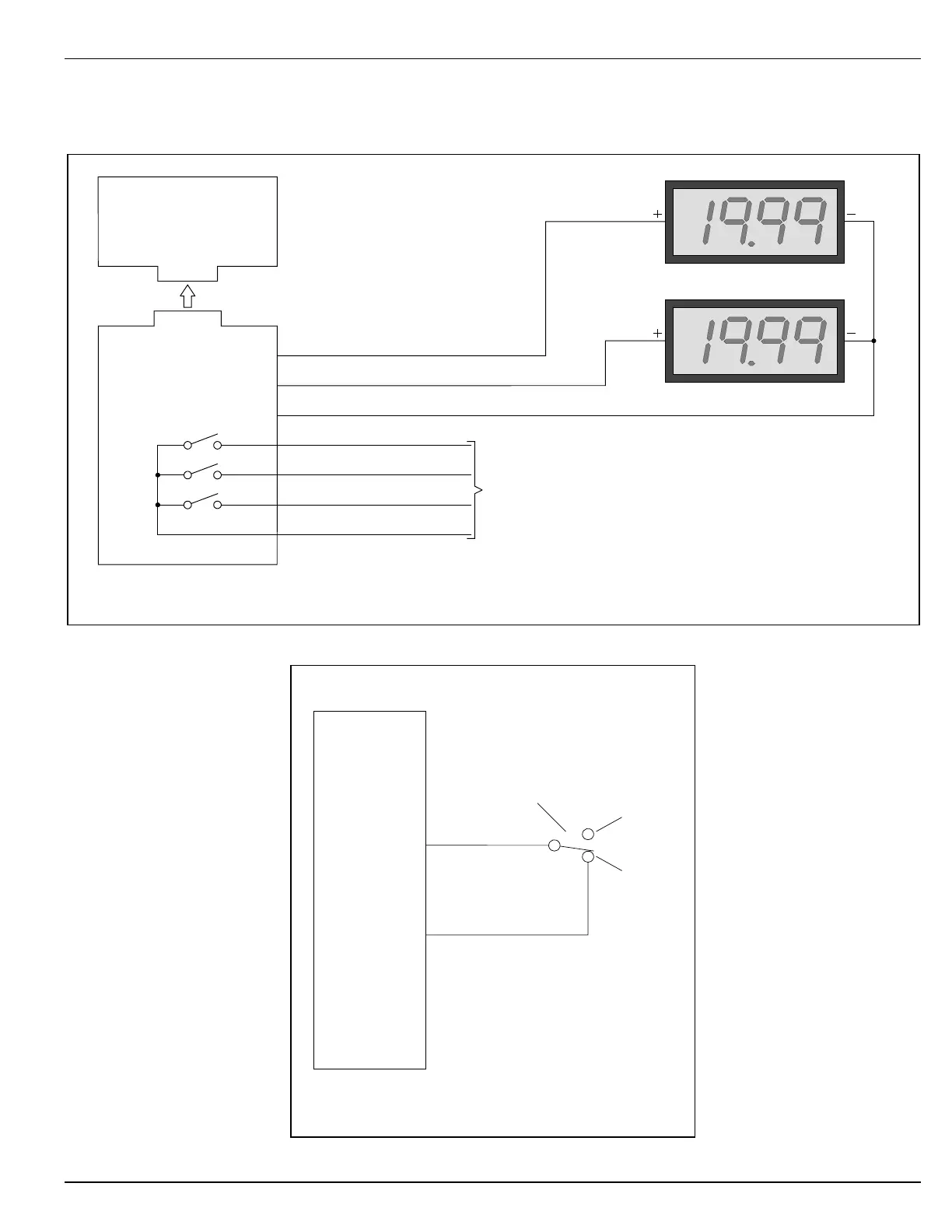

Connecting a position feedback transmitter
OTR-100
OTX-100
DHC-100
OTR-100 only
7 Voltage Output
4 AUX Close Output
3 AUX Open Output
2 Fault Output
6 mA Output
5 GND
1 Common
(Option Module)
J3
mA Feedback Monitor
Voltage Feedback Monitor
NOTE: The Fault Output contact will
open when power is lost or when a
fault condition exists.
Connecting a mechanical manual override switch
DHC
Series
J7-2
J7-1
Mechanical
Manual Override
Switch
Manual
Override
Normal
Operation
