ix. CHANGING MOTOR VOLTAGE
T
he VX141MSPROR motor has the ability to accept power from a 115V
and 230V power source. By default the motor is set to accept power
from a traditional 115V power source. For best motor performance run
the motor using 230V.
To change the voltage of the motor,
perform the following steps:
1. Disconnect the electrical supply.

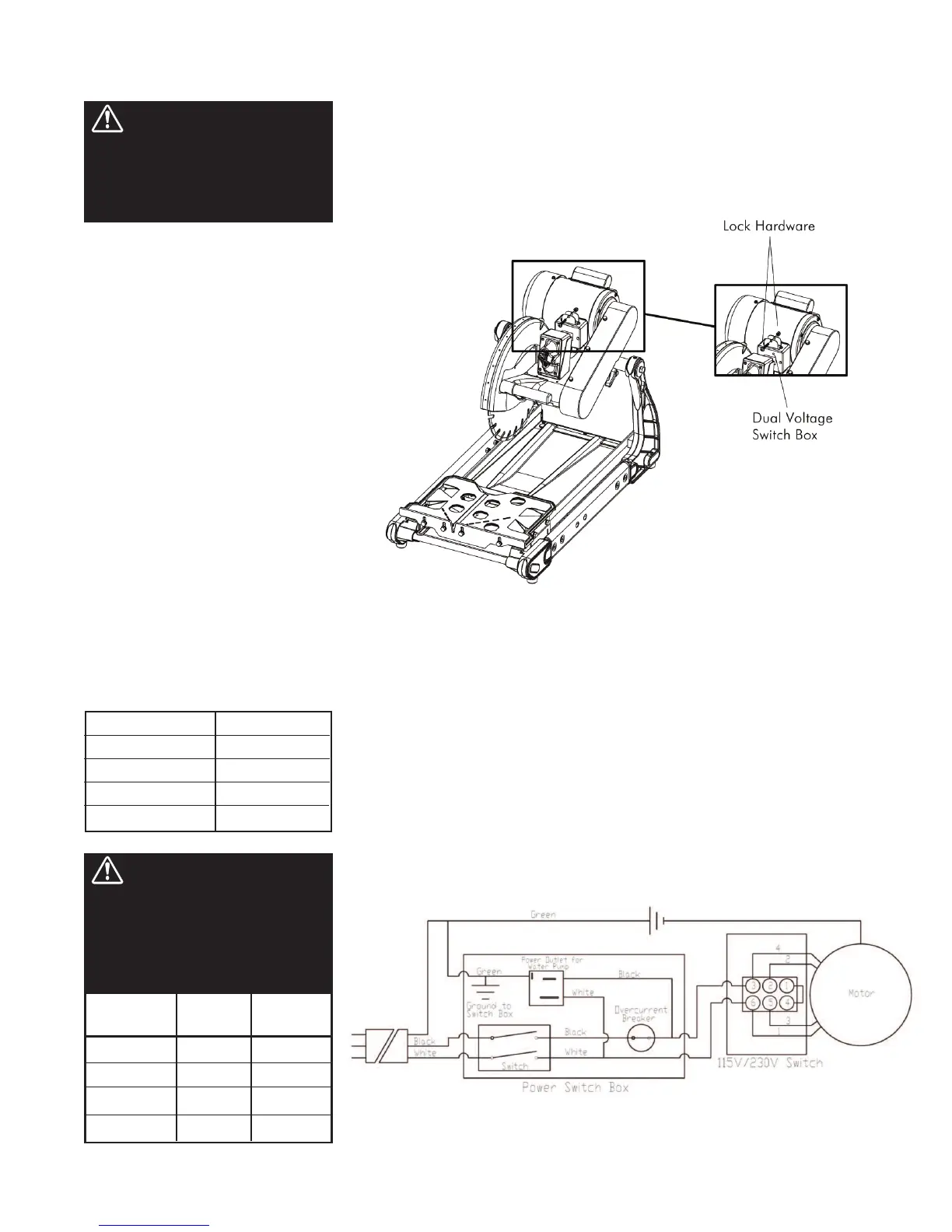

2. Remove the lock hardware as shown
on right.
3. Toggle the voltage select on the dual
voltage switch box to the desired
voltage.
4. Re-lock the voltage select using the
lock hardware.
WARNING: Turning on the
s
aw, while the motor is set at
115V, to a 230V electrical power
supply will cause irreparable
damage to the motor.
x. ELECTRICAL MOTOR SPECIFICATIONS
Horse Power 2 HP
Volts 115V/230V
Amps 7.5A/15A
Motor RPM 3,250 rpm
Cycle 60 Hz
115V
25'
50'
75'
NA
230V
100'
150'
250'
NA
Recommendations:
• It is recommended that a 20 amp circuit be used while operating this saw.
This will prevent possible power interruption or loss.
• Always plug saw as close as possible to the power source while operating.
This will allow you to receive optimum electricity.
Electrical Wiring Diagram
WARNING: To avoid
permanent motor damage you
must use the correct extension
cord. Never use more than one
extension cord at a time. Follow
the chart for proper size.
WIRE
GAUGE
12 AWG
10 AWG
8 AWG
6 AWG
