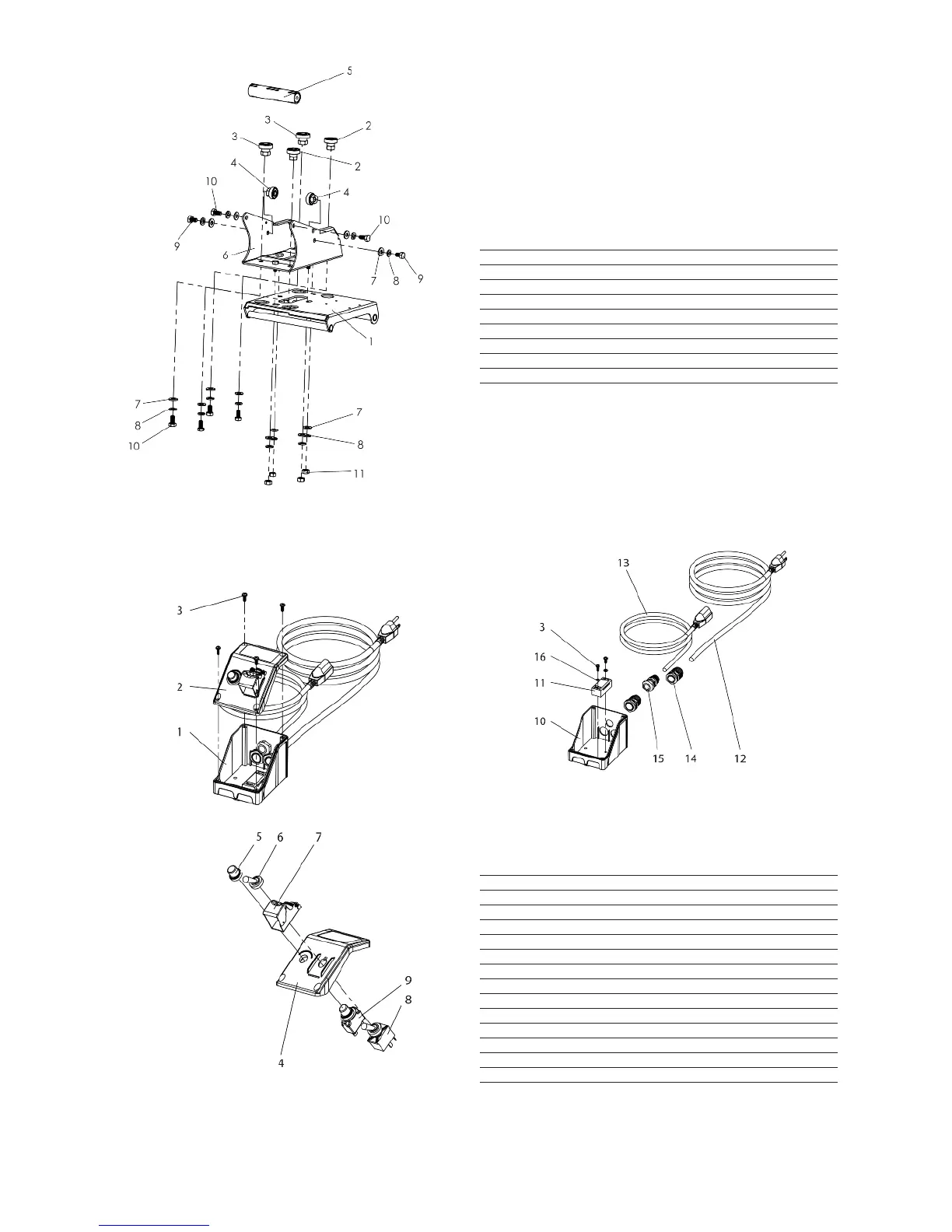

Pearl VX10RSPRO - Cutting Head Sub-Assembly; Switch Box Assembly

– 23 –
1 Lower power switch assembly PLEASE CALL
2 Upper power switch assembly PLEASE CALL
3 M 4 X 1.59 X 12L Cross tapping screw PLEASE CALL
4 Switch box upper housing PLEASE CALL
5 Reset button boot PLEASE CALL
6 Toggle Switch Boot PLEASE CALL
7 Power switch shield / Toggle Switch Safety Bracket PLEASE CALL
8 15A/125V Toggle switch with rubber boot PLEASE CALL
9 18A/125V Circuit breaker PLEASE CALL
10 Switch box lower housing PLEASE CALL
11 Junction box PLEASE CALL
12 14AWGx3C X 3M NEMA 5-15P Power plug PLEASE CALL
13 16AWG3C X 2M NEMA 5-15R Power cable PLEASE CALL
14 PG-11 Cable gland PLEASE CALL
15 PG-9B Power cable gland PLEASE CALL
16 M4 x 8 x 1T Teflon washer PLEASE CALL
PART NAME PART NUMBER
SWITCH BOX ASSEMBLY
1 Carriage B weldment - Black PLEASE CALL
2 Concentric flat roller PLEASE CALL
3 Eccentric flat roller PLEASE CALL
4 Eccentric flat rolle PLEASE CALL
5 Slide handle with rubber sleave PLEASE CALL
6 Carriage A weldment - Black PLEASE CALL
7 M8 x 18 x 1.8T Wide washer PLEASE CALL
8 M8 Spring lock washer PLEASE CALL
9 M8 x 1.25 x 12L Hex bolt PLEASE CALL
10 M8 x 1.25 x 16L Hex bolt PLEASE CALL
11 M 8 x 1.25 Nut PLEASE CALL
PART NAME PART NUMBER
CUTTING HEAD SUB-ASSEMBLY
