POWER SWITCH
Switch to “ON” position to turn on.
STANDBY SWITCH
This two-way switch allows the amp to be placed in the STANDBY mode. In the STANDBY position the
tubes stay hot but the amplifier is not operational. Switching to the ON position places the amp in active
mode.
PILOT LIGHT
Illuminates when AC power is being supplied to the unit.
TREMOLO SPEED
The speed control determines the rate at which the signal is modulated. This control varies the speed
of the Tremolo master oscillator and should provide any speed desired for modern music. Clockwise
rotation of the speed control increases the speed of the modulation of the tremolo. The Tremolo feature
is defeatable from a remote footswitch.
TREMOLO INTENSITY
The intensity control is used to vary the amount of amplitude modulation of the clean signal. It can be
adjusted from barely perceptible to dramatic modulation. Clockwise rotation of the intensity control
increases the depth of the tremolo.
EFFECTS RETURN
Input for returning signals to external effects or signal processing equipment.
EFFECTS SEND
Output for supplying signal to external effects or signal processing equipment.
TREBLE, MIDDLE AND BASS EQ
Passive tone controls that regulate high, mid, and low frequencies, respectively.
BOOST SWITCH
Boosts the overall system gain. Depress to the "in" position to activate.
REVERB
Reverberation is an echo effect. Rotate clockwise to increase the effect.
POST GAIN
Controls the overall volume level of the Lead channel. The final level adjustment should be made after
the desired sound has been activated.
PRE GAIN
Controls the input volume level of the Lead channel.
CHANNEL SELECT SWITCH
Allows selection of the Lead or Normal channel.
Note: Channel selection may also be achived by the remote footswitch. If remote selection is desired,
the channel switch must be in the "in" (Lead) position.
NORMAL GAIN
Controls the volume level of the Normal channel.
INPUT
The input jack will accept signals from all types of guitar pickups. Be sure to use a high-quality shielded
cable to connect the guitar to the amplifier.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

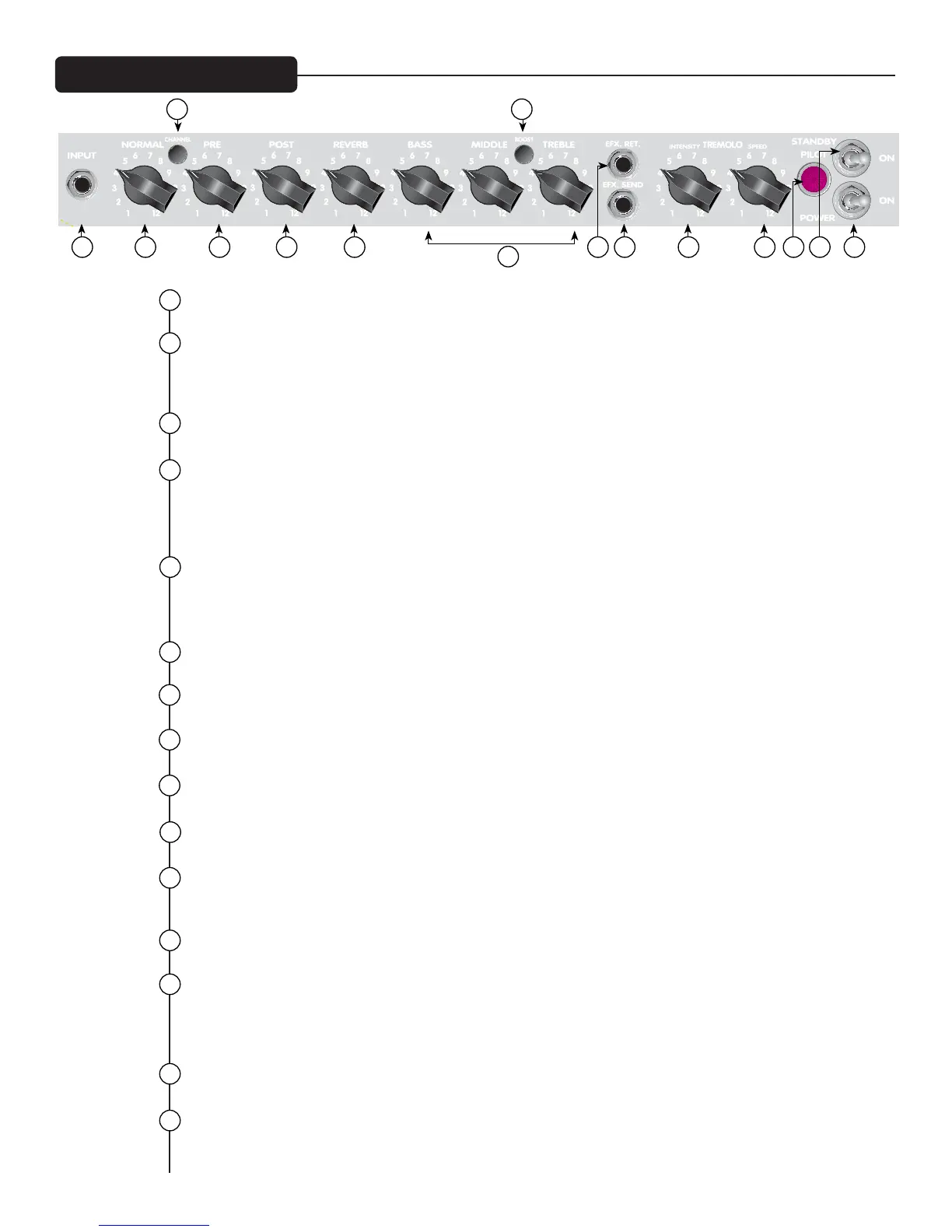

Delta Blues
®
