signal is present at the input (from a lapel
microphone, guitar etc)
8. Unused status indicator: this illuminates when
the combination of group and channel you
have selected is not connected.
9. Group selector switch: make sure this setting
matches the group selection on the receiver.
10. Channel selector switch: make sure this
setting matches the channel selection on the
receiver.
11. Battery compartment and cover: accepts one

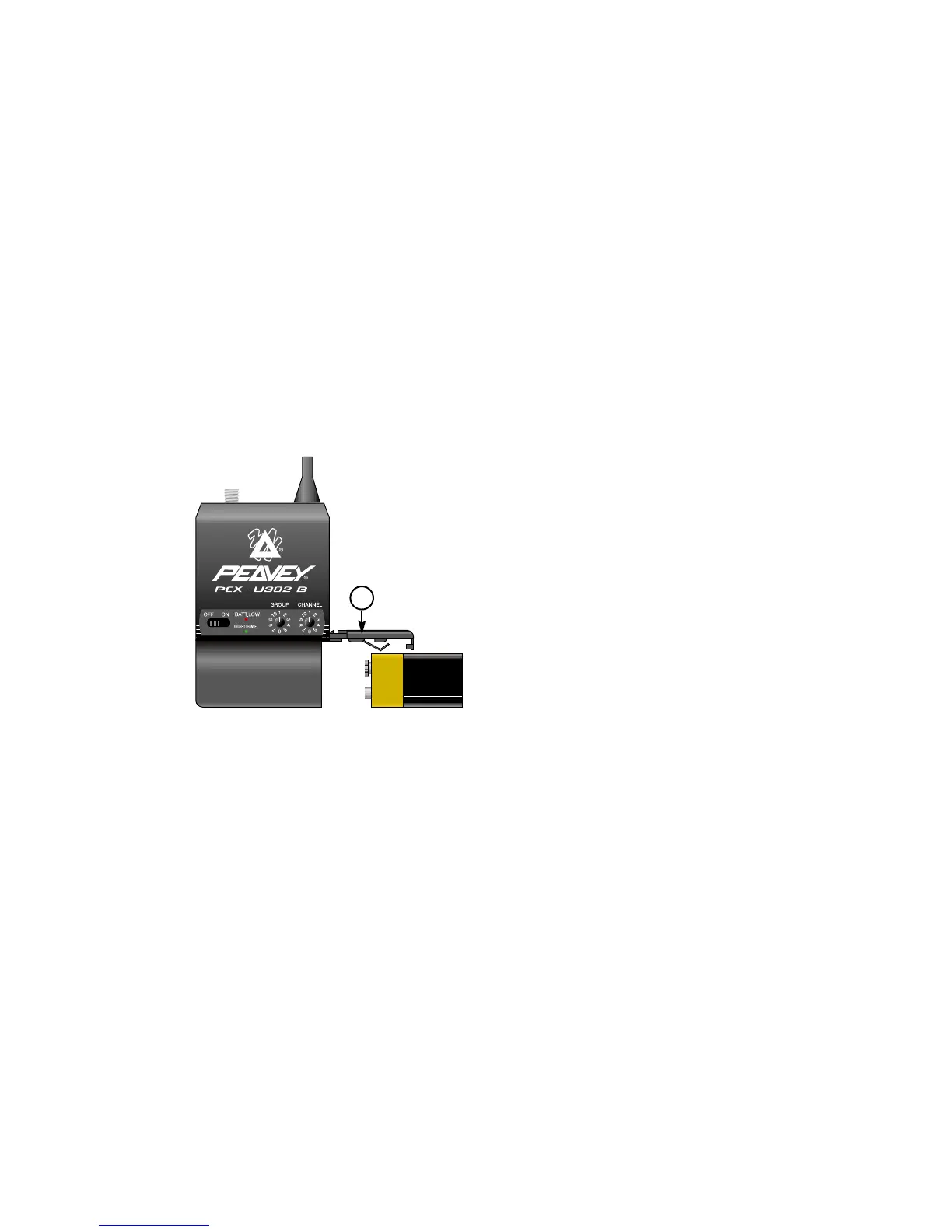

standard 9V battery. (Figure 14)
2. OPERATION OF THE BELT PACK TRANSMITTER
Figure 14
1. Push ‘down and out’ to open the battery
compartment.
2. Insert the battery making sure that correct
polarity is observed. Close the battery cover
as shown in figure 15.
