peerless-AV DS-S555-3X2 - Page 9

9
2014-07-28 #:009-9088-6 (2020-01-14)
4
Y (8)
4-1

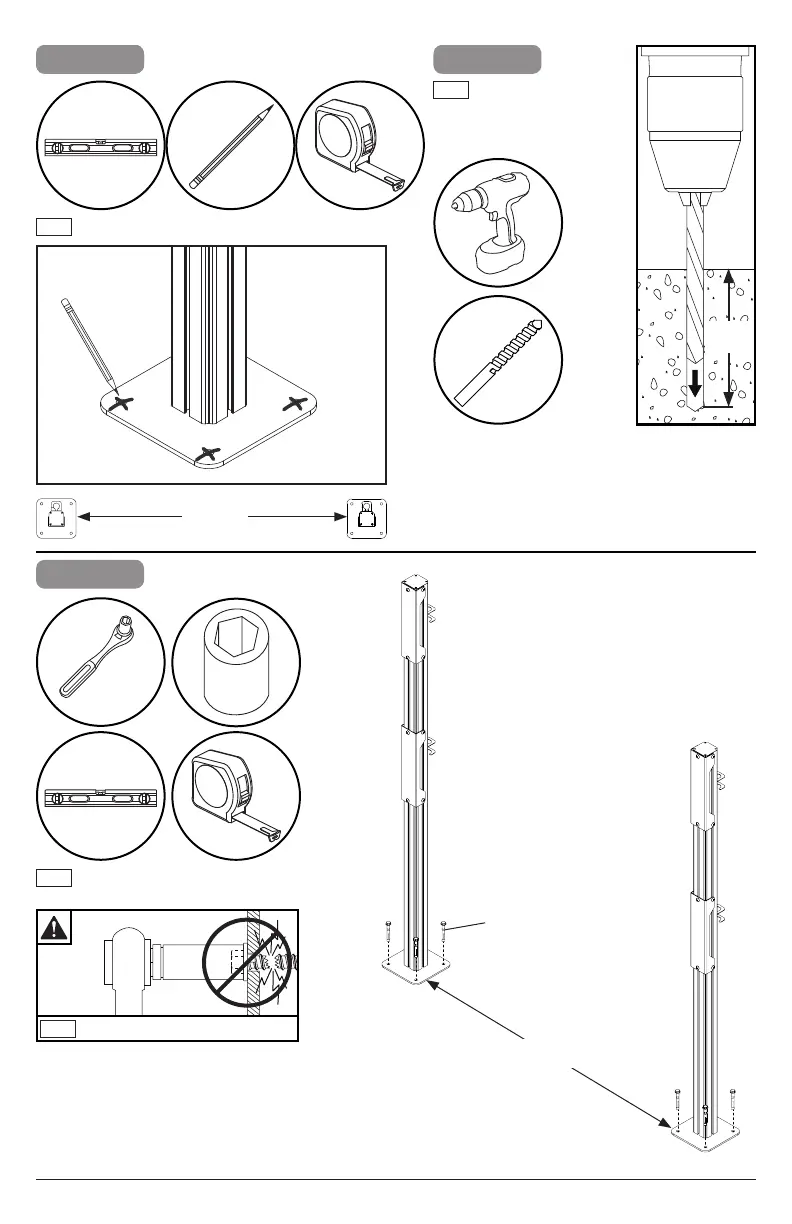

Align base. Mark mounting holes.
ENG
4-3
Align base. Install using concrete anchors
provided.
ENG
3/8"
(10mm)
55.00"
(1397mm)
ENG
Maximum 35 ft • lb (47 N.M.).
55.00"
(1397mm)
4-2
Drill mounting holes into
supporting surface
(3" (76mm) minimum
depth required).
ENG
3/8"
(10mm)
3"
(76mm)
3/8"
(10mm)
