peerless-AV EPA762PU - Page 7

7
2016-09-14 #:096-9006-2 (2018-04-25)
I
(
4
)

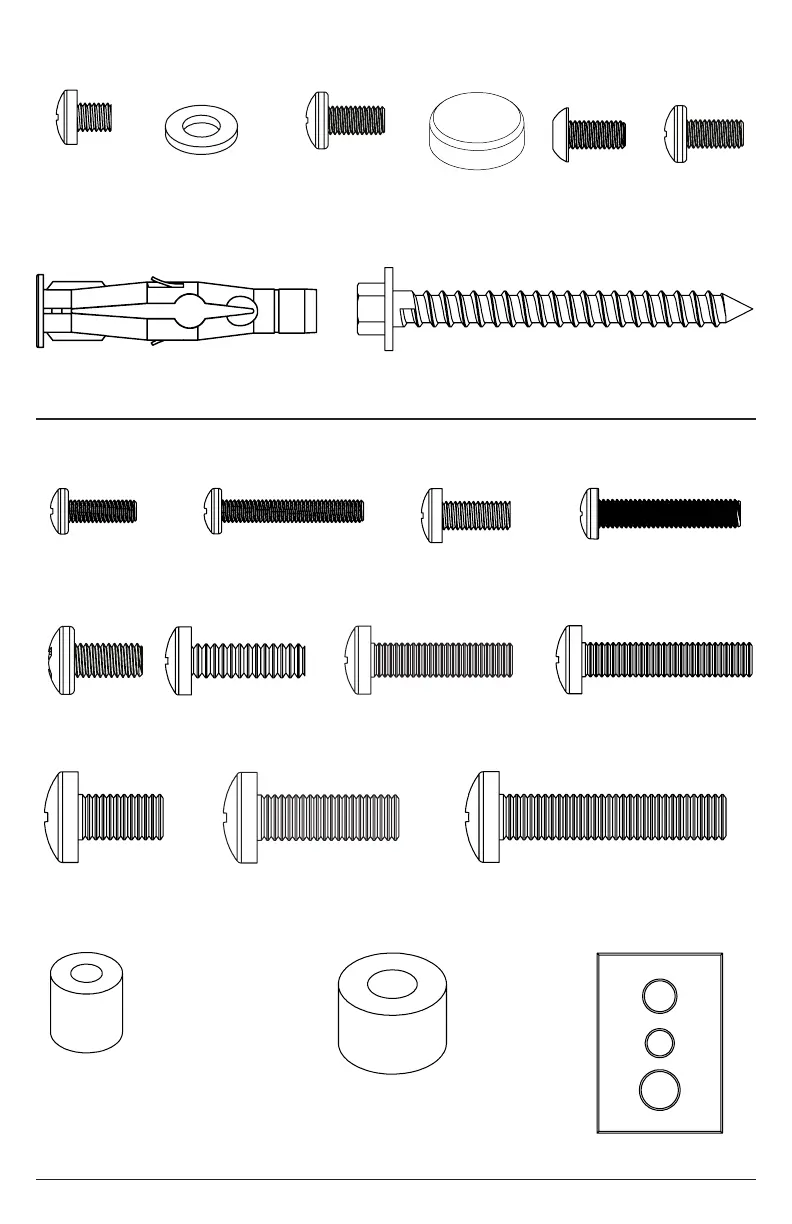

8mm concrete anchor
H
(
4
)
#14 x 2.5" wood screw
E (4)
M5 x 6mm
F (2)
1/4" x .5 OD
spacer
G (1)
M5 x 10mm
J (4)
M5 x 10mm
(not used)
L (4)
M5 x 10mm
(not used)
K (4)
plastic cover
M
(
6
)
M4 x 12mm
N
(
4
)
M4 x 25mm
O
(
4
)
M5 x 12mm
R
(
4
)
S
(
4
)
T
(
4
)
P
(
4
)
M6 x 20mm M6 x 25mm M6 x 30mm
M5 x 25mm
U
(
6
)
M8 x 16mm
W
(
4
)
V
(
4
)
M8 x 40mmM8 x 25mm
X
(
4
)
.219 ID x .5 OD
spacer
Z
(
6
)
M5/M4/M6
washer
Y
(
4
)
.44 ID x .75 OD
spacer
Q (6)
M6 x 12mm
520-9402
510-9109
504-1017
520-1031
