peerless-AV Modular Series - Parts List; Component Identification

6
2019-03-25 #:056-9108-1
Parts (Before beginning, make sure you have all parts shown below).
Piezas (antes de iniciar, asegúrese de tener todas las piezas siguientes).
Pièces (avant de commencer, assurez-vous d’avoir toutes les pièces illustrées ci-dessous).
Teile (Achten Sie vor Beginn der Arbeiten darauf, dass alle unten abgebildeten Teile vorhanden sind).
Onderdelen (hoort u zich ervan te overtuigen dat u alle onderdelen hebt, die hieronder te zien zijn).
Parti (prima di iniziare, accertarsi di disporre tutte le parti sotto indicate).
Díly (předtím, než začnete, připravte si všechny díly zobrazené níže).
Diely (predtým, ako začnete, pripravte si všetky diely zobrazené nižšie).
Peças (antes de iniciar, certique-se de que tem todas as peças apresentadas em baixo).
Parçalar (Başlamadan önce, aşağıda gösterilen bütün parçaların elinizde olduğundan emin olun).
ENG
ESP
FRN
DEU
NEL
ITL
ČEŠ
SLK
POR
TÜR

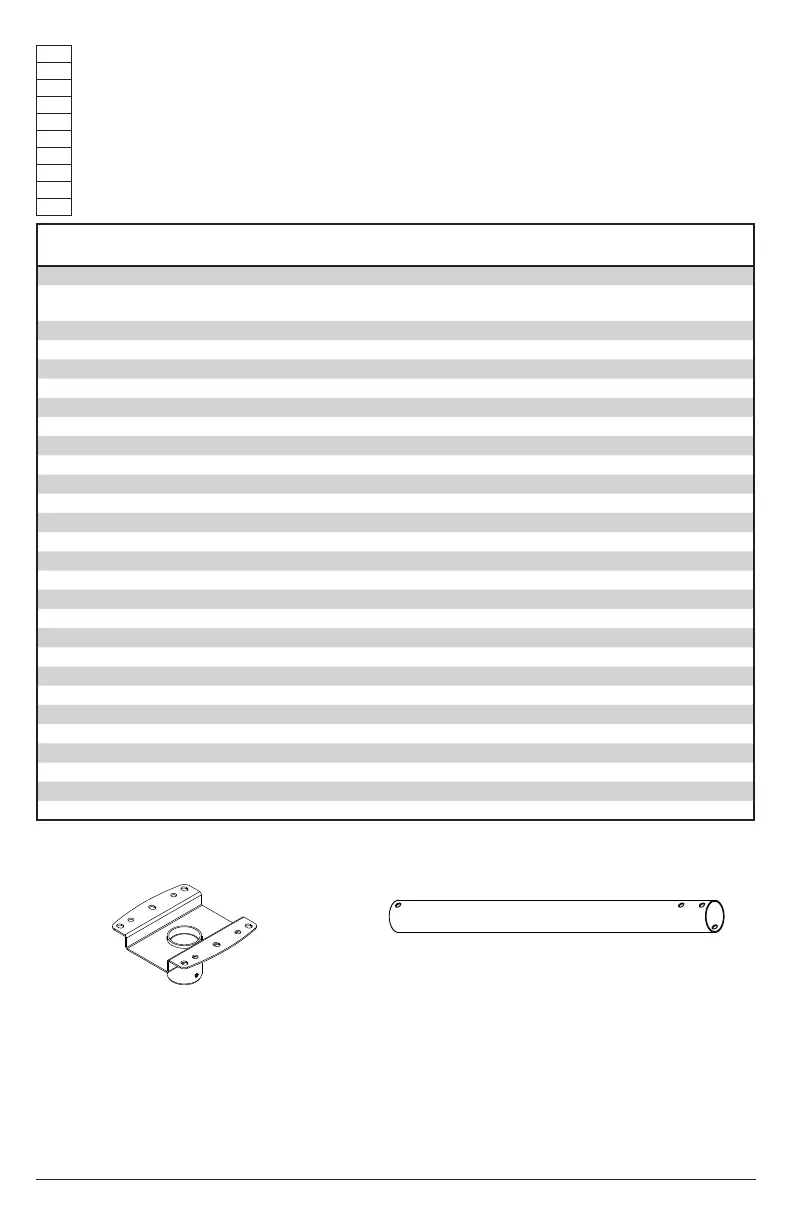

Parts List
MOD-PJF2KIT100-CPF-B
Part #
MOD-PJF2KIT150-CPF-B
Part #Description Qty
A ceiling plate 1 100-1120 100-1120
B extension column (39" (1m))
extension column (59" (1.5m))
1 100-1065
-
-
100-1066
C M5 x 10mm type-f socket screw (not used) 1 520-1164 520-1164
D .25"ID spacer (not used) 2 590-1050 590-1050
E #14 x 2-1/2" wood screw (not used) 2 5S1-015-C03 5S1-015-C03
F #10-32 x 3/8 thumb screw 1 560-1107 560-1107
G #10-32 x 3/8 socket pin screw 2 520-1084 520-1084
H #10-32 x 3/8 serrated head socket pin screw 1 520-1151 520-1151
I 10-32 x 3/16 set screw 3 520-1187 520-1187
J threaded adaptor 1 580-1427 580-1427
K M6 x 10mm phillips screw 2 520-1596 520-1596
L projector mount assembly 1 055-0011 055-0011
M adaptor bracket 1 055-1867 055-1867
N 4mm allen wrench 1 560-9646 560-9646
O 2mm (3/32") security allen wrench 1 560-1097 560-1097
P small washer 4 540-1025 540-1025
Q M3 x 8mm serrated head socket pin screw 4 510-1004 510-1004
R M4 x 10mm serrated head socket pin screw 4 510-1060 510-1060
S M5 x 10mm serrated head socket pin screw 4 510-1126 510-1126
T M6 x 10mm serrated head socket pin screw 4 510-1066 510-1066
U M5 x 20mm serrated head socket pin screw 4 510-1065 510-1065
V mounting plate (not used) 1 580-1042 580-1042
W extension column connector 1 580-1025 580-1025
X 10mm concrete anchor 4 590-0321 590-0321
Y 5mm allen wrench 1 560-9640 560-9640
Z M8 x 55mm socket screw 1 520-1748 520-1748
AA 3" wood screw 4 520-1243 520-1243
BB M10 x 10mm set screw 1 520-0850 520-0850
A (1)
ceiling plate
B (1)
extension column
