peerless-AV PRG-UNV - Parts List Overview

6
2009-09-30 #:056-9024-9 (2018-02-26)

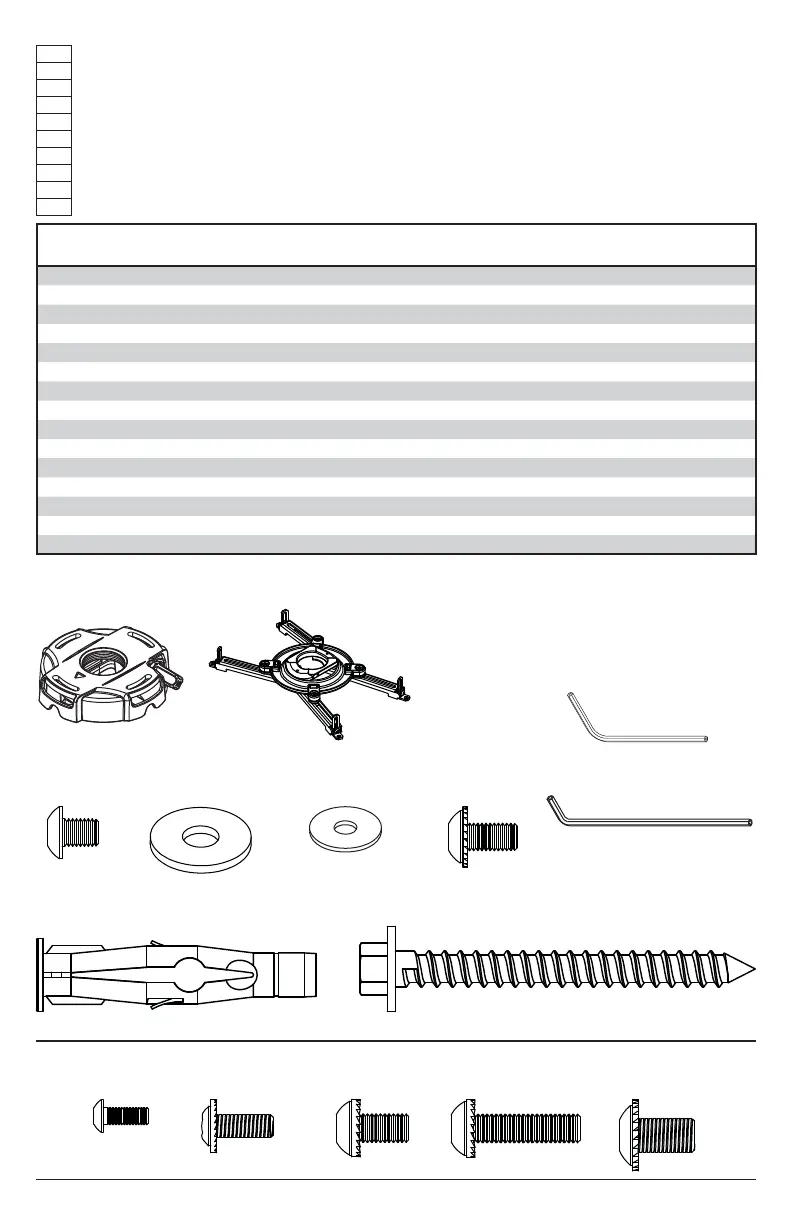

Parts (Before beginning, make sure you have all parts shown below).
Piezas (antes de iniciar, asegúrese de tener todas las piezas siguientes).
Pièces (avant de commencer, assurez-vous d’avoir toutes les pièces illustrées ci-dessous).
Teile (Achten Sie vor Beginn der Arbeiten darauf, dass alle unten abgebildeten Teile vorhanden sind).
Onderdelen (hoort u zich ervan te overtuigen dat u alle onderdelen hebt, die hieronder te zien zijn).
Parti (prima di iniziare, accertarsi di disporre tutte le parti sotto indicate).
Díly (předtím, než začnete, připravte si všechny díly zobrazené níže).
Diely (predtým, ako začnete, pripravte si všetky diely zobrazené nižšie).
Peças (antes de iniciar, certifi que-se de que tem todas as peças apresentadas em baixo).
Parçalar (Başlamadan önce, aşağıda gösterilen bütün parçaların elinizde olduğundan emin olun).
ENG
ESP
FRN
DEU
NEL
ITL
ČEŠ
SLK
POR
TÜR
I
(
1
)
H
(
2
)
4mm allen wrench
2mm allen wrench
Parts List
PRG-UNV
Part #
PRG-UNV-W
Part #Description Qty
A projector mount assembly 1 054-1171 054-2171
B adaptor bracket 1 055-1938 055-2938
C 8mm concrete anchor 2 590-0320 590-0320
D #14 x 2-1/2" wood screw 2 5S1-015-C03 5S1-015-C04
E #10-32 x 1/4" socket pin screw with lock patch 1 520-1196 520-2196
F 1/4" fl at washer 2 540-1078 540-1078
G #6 fl at washer x 1/2" OD 4 540-1025 540-2025
H 2mm security allen wrench 2 560-1097 560-1097
I 4mm security allen wrench 1 560-9646 560-9646
J M3 x 8mm serrated head socket pin screw 4 510-1004 510-2004
K M4 x 10mm serrated head socket pin screw 4 510-1060 510-2060
L M5 x 10mm serrated head socket pin screw 4 510-1126 510-2063
M M5 x 20mm serrated head socket pin screw 4 510-1065 510-2065
N M6 x 10mm serrated head socket pin screw 4 510-1066 510-2066
O #10-32 x 3/8" serrated head socket pin screw (not used) 2 520-1151 520-2151
J
(
4
)
E
(
1
)
A
(
1
)
B
(
1
)
F
(
2
)
G
(
4
)
O
(
2
)
M3 x 8mm
#10-32 x 1/4"
projector mount
assembly
adaptor bracket
1/4" fl at washer #6 fl at washer x 1/2" OD #10-32 x 3/8"
K
(
4
)
L
(
4
)
N
(
4
)
M
(
4
)
M4 x 10mm M5 x 10mm M6 x 10mmM5 x 20mm
C
(
2
)
8mm concrete anchor
D
(
2
)
#14 x 2-1/2" wood screw
