4 of 8
ISSUED: 11-15-11 SHEET #: 021-9014-2 10-15-12
A
A
A
C
D
D
C
fi g. 1.1
fi g. 1.2
G
H
F
PINS

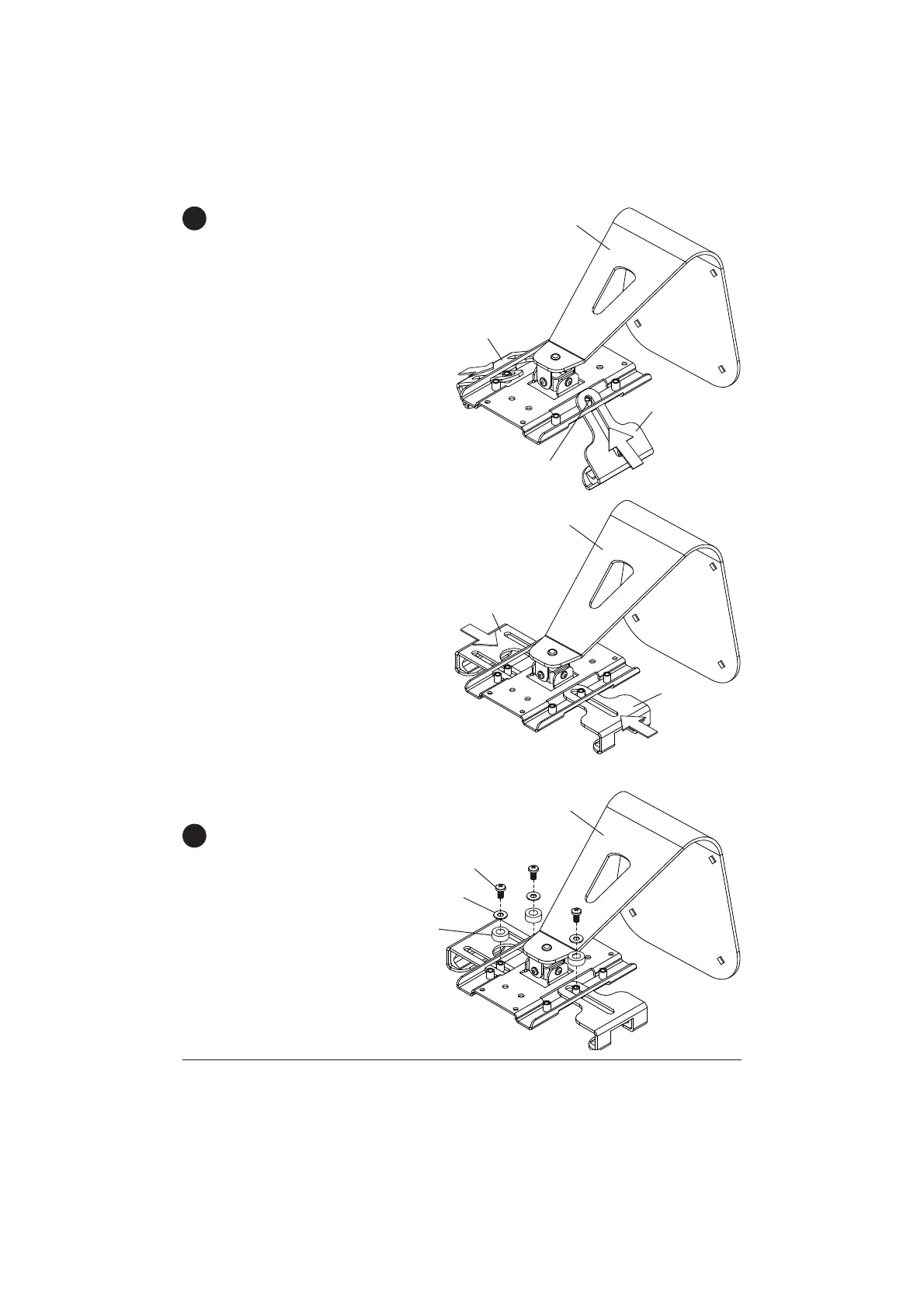

Secure with three 1/4" spacers (H), four
washers (F) and three M5 x 8 mm self
tapping phillips screws (G). Do not tighten
screws.
Fit top clamp (C) and bottom clamp (D) into
stand (A) and over pins as shown in fi gures
1.1 and 1.2.
2
1
