peerless-AV SA740P - Parts List

6
2012-02-08 #:203-9104-2 (2013-11-15)
A (1)
wall mount
C (1)
adapter plate
B (1)
adapter bracket

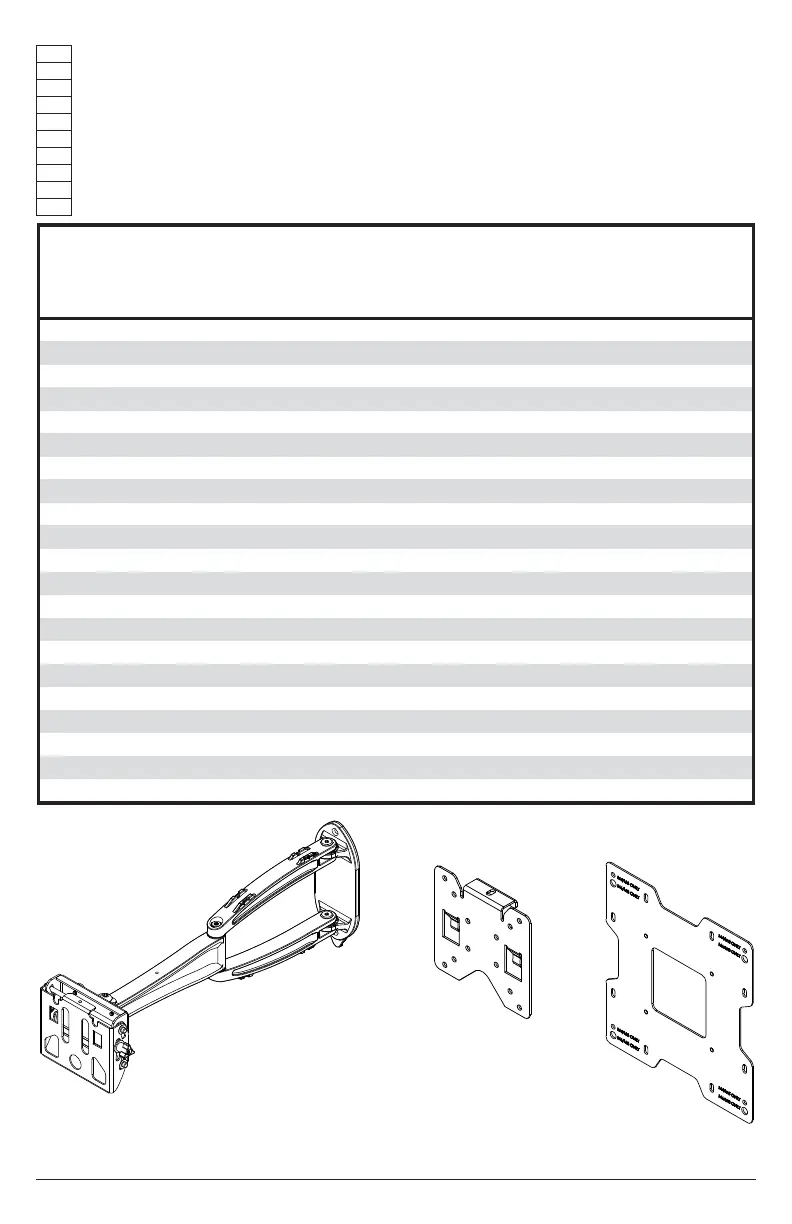

Parts (Before beginning, make sure you have all parts shown below).
Piezas (antes de iniciar, asegúrese de tener todas las piezas siguientes).
Pièces (avant de commencer, assurez-vous d’avoir toutes les pièces illustrées ci-dessous).
Teile (Achten Sie vor Beginn der Arbeiten darauf, dass alle unten abgebildeten Teile vorhanden sind).
Onderdelen (hoort u zich ervan te overtuigen dat u alle onderdelen hebt, die hieronder te zien zijn).
Parti (prima di iniziare, accertarsi di disporre tutte le parti sotto indicate).
Díly (předtím, než začnete, připravte si všechny díly zobrazené níže).
Diely (predtým, ako začnete, pripravte si všetky diely zobrazené nižšie).
Peças (antes de iniciar, certifi que-se de que tem todas as peças apresentadas em baixo).
Parçalar (Başlamadan önce, aşağıda gösterilen bütün parçaların elinizde olduğundan emin olun).
ENG
ESP
FRN
DEU
NEL
ITL
ČEŠ
SLK
POR
TÜR
SA740
P
SA740P-
S
Description Qty. Part # Part #
A
wall mount 1 096-P1271
095-4641
B
adapter bracket 1 095-P1346
095-4346
C
adapter plate
1 095-P1721 095-4721
D
concrete anchor 2 590-0320 590-0320
E
#14 x 2.5" flat head wood screw 2 520-1202
520-2165
F
M4 x 10 mm phillips screw 4 504-9012
520-2027
G
M6 x 12 mm phillips screw 4 520-1128
520-2039
H
M6 x 20 mm phillips screw 4 520-9402
520-2040
I
M8 x 10 mm phillips screw 4 520-1605 520-2605
J
M5 x 6 mm phillips screw 5 520-1023
520-2214
K
washer 4 540-9400
540-9442
L cable tie anchors
2
590-1290 590-1290
M 8-32 x 1/4" phillips screw
2
520-1622 520-2622
N
cable ties
8
560-1756 560-1756
O #3 screwdriver bit
1
560-0209 560-0209
P
#10-32 x 1/4" flat head phillips screw 1 520-1108
520-2108
Q
5 mm allen wrench
2
560-9640 560-9640
R
screw cover
2
590-1324 590-4324
S
1/4-20 x .5" flat head phillips screw 2 520-1209
520-2178
T
plastic cord covers
2
590-P1323 590-4323
U spacer (not used) 4 590-5005 590-5003
Parts List
