peerless-AV SR542-KAPP - Page 6

6
2015-06-22 #:009-9116-1
D
(
1
)
vertical column
A
(
1
)
base
B
(
2
)
caster (non locking)
C
(
2
)
caster (locking)

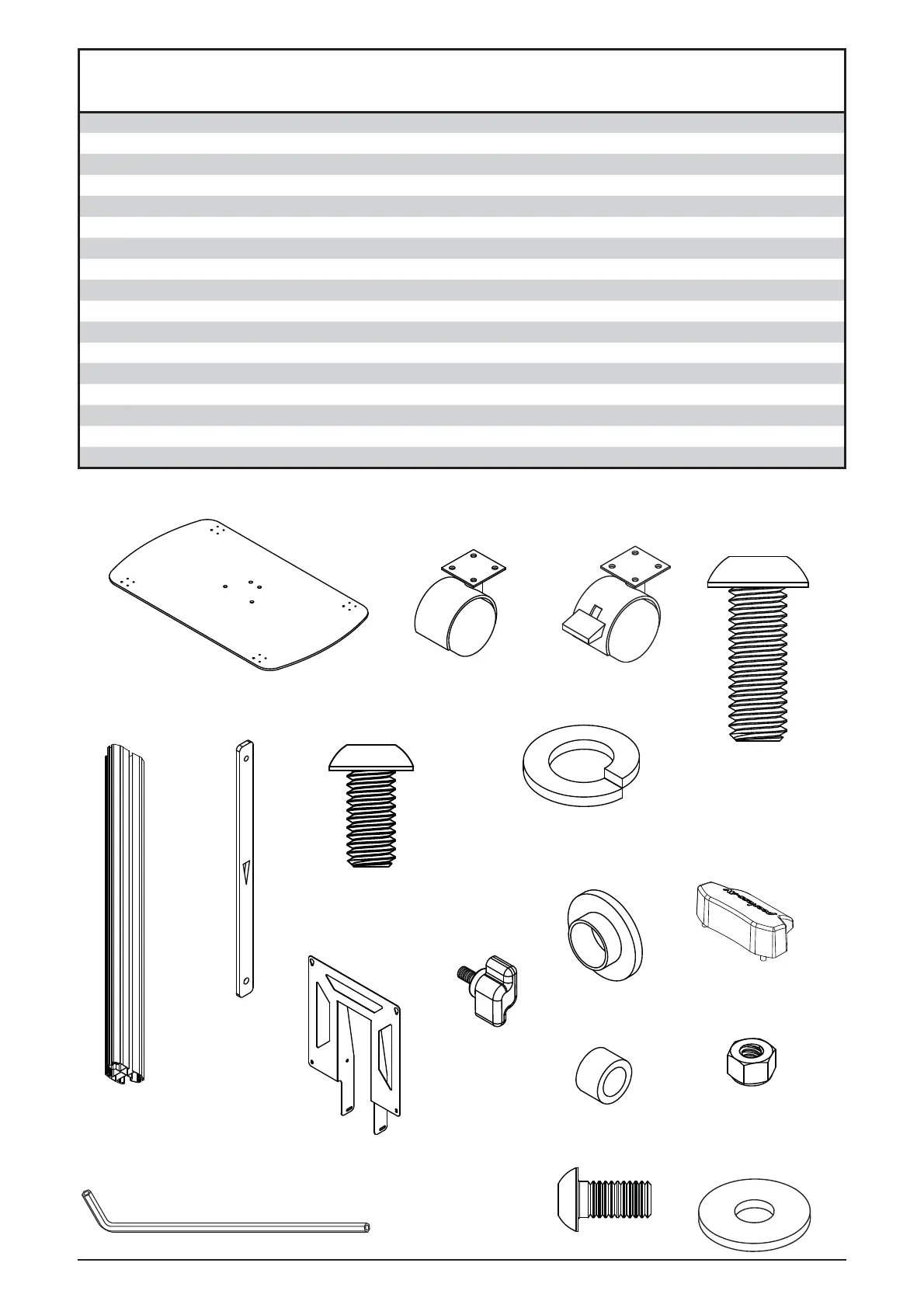

Parts List
Part #Description Qty
A base 1 009-2872
B caster (non locking) 2 600-0385
C caster (locking) 2 600-0386
D vertical column 1 009-2876
E 3/8"-16 x 1" long bolt 4 520-1354
F M10 split washer 4 540-9424
G adaptor plate 1 009-2874
H M5 x 16mm 2 520-2161
I bracket nut bar 2 009-2875
J shoulder washer 2 540-0087
K column cover 1 009-1672
L tilt head knob 2 590-1109
M 4mm allen wrench 1 560-9646
N spacer 2 560-1876
O M6 x 12mm 4 520-2050
P M4 hex nut 16 530-1055
Q .258" x .725 x .063 washer 4 540-2046
E
(
4
)
F
(
4
)
M10 split washer
I
(
2
)
bracket nut bar
G
(
1
)
adaptor plate
J
(
2
)
shoulder
washer
H
(
2
)
M5 x 16mm
K
(
1
)
column cover
O
(
4
)
M6 x 12mm
M
(
1
)
4mm allen wrench
L
(
2
)
tilt head knob
P (16)
Q
(
4
)
N
(
2
)
M4 hex nut
spacer
.258" x .725 x .063
washer
