[ 12 ] Pelco Manual C527M-L (3/04)

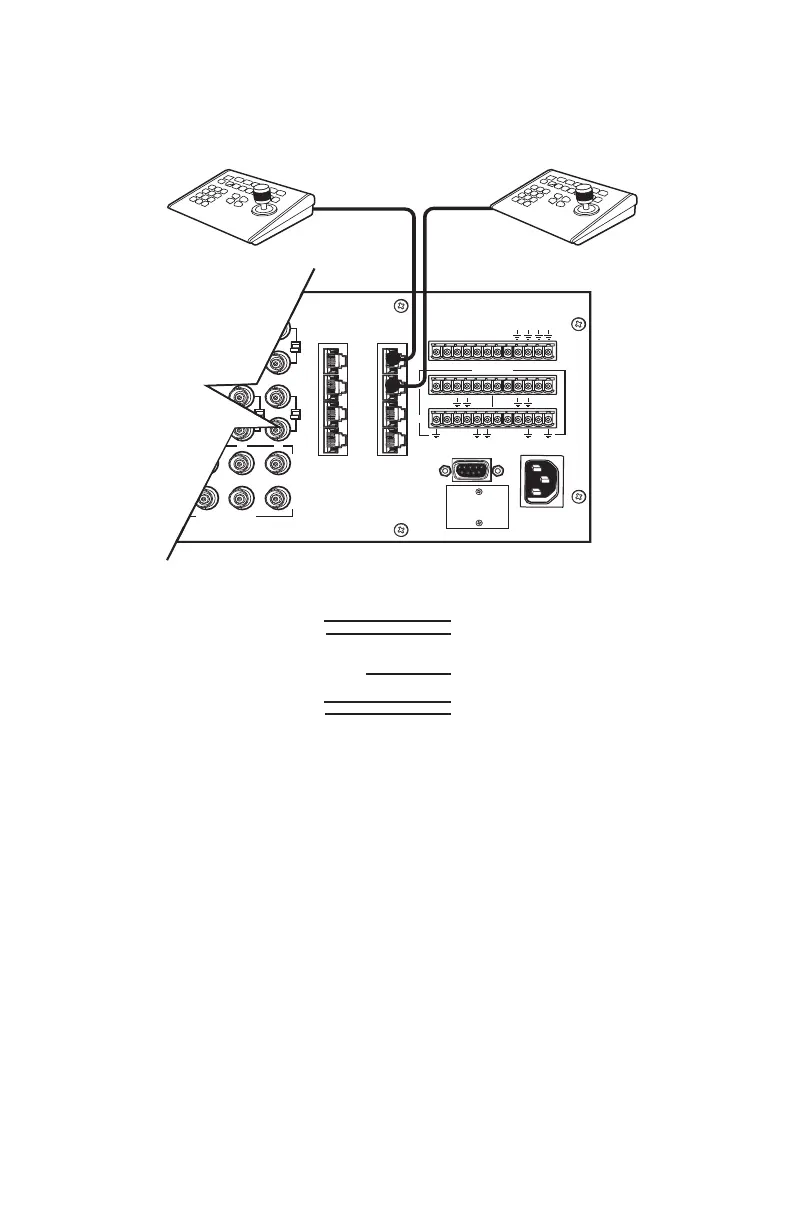

Figure 3. Data Cables Plugged into COM 5 and 6 (CM6800-48X8 Shown)
COM 1
1
2
3
4
5
6
7
8
16
87
3231
43
VIDEO OUTPUTS
120/230~
50/60 HZ
25 WATTS
COM
ALAR M
123 45 678
CONTROL
PTZ
OUT
AT
+
T
-
R
+
R
-
T
+
T
-
R
+
R
-
B
1
2
3
MAXIMUM NUMBER OF KEYBOARDS POWERED BY COM 5 & 6: 1 PER PORT
NOTE: THE TOTAL NUMBER OF KBD300A SERIES
KEYBOARDS CONNECTED TO THE CM6800 CANNOT EXCEED 16.
KBDKIT(-X) REQUIRED WHEN WIRING MORE THAN 1 KEYBOARD TO A PORT.
KBD300A
RJ-45 PIN-OUTS
1 Tx+
2 Tx-
3 12V
4 12V
5 GROUND
6 NC
7 Rx-
8 Rx+
CM6800 COM 5 & 6
RJ-45 PIN-OUTS
1 Rx+
2 Rx-
3 KBD 12V
4 KBD GROUND
5 GROUND
6 NC
7 Tx-
8 Tx+
KBD300A
KBD300A
