Pelgrim PSK970MAT - Mounting the Canopy Hood

45
5 Installation

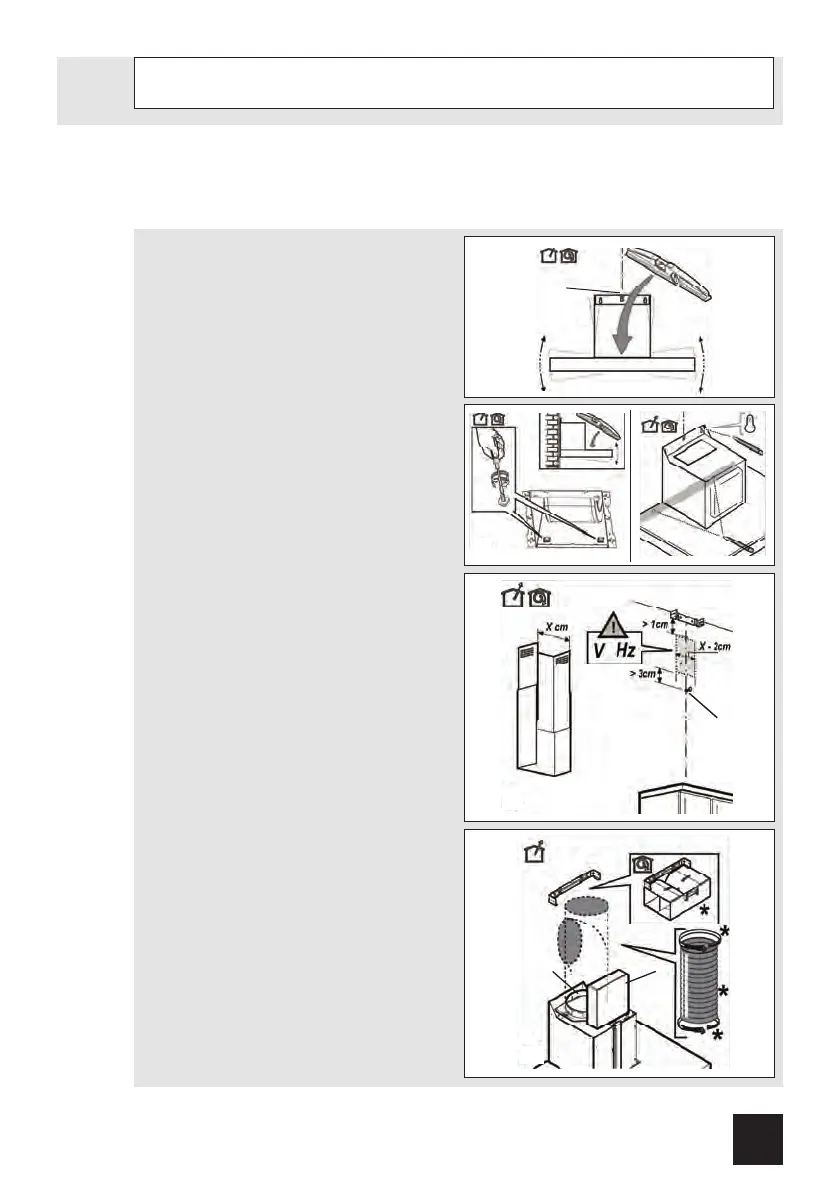

5.3 Mounting the canopy hood
Mount the extractor hood against •
the wall using the plugs and screws.
Start with screw A, after which you
can align the extractor hood using a
spirit level and the jack screws. (See
images).
Next, mount the bracket on the wall •
using the plugs and the screws.
Install the discharge fl ange on top •
of the motor frame (B). Now put the
electric unit upright and install it onto
the motor frame (C) using 2 screws
Install the vent duct on the fl ange (C) •
and then onto the connecting surface
of the exhaust grid.
Put the plug in the wall socket. •
Slide the upper chimney into the •
lower chimney.
Wrap the lower duct around the •
motor frame and let it sink into the
extractor hood.
Wrap the top duct around the bracket •
and tighten with the screws.
A
B
C
A
