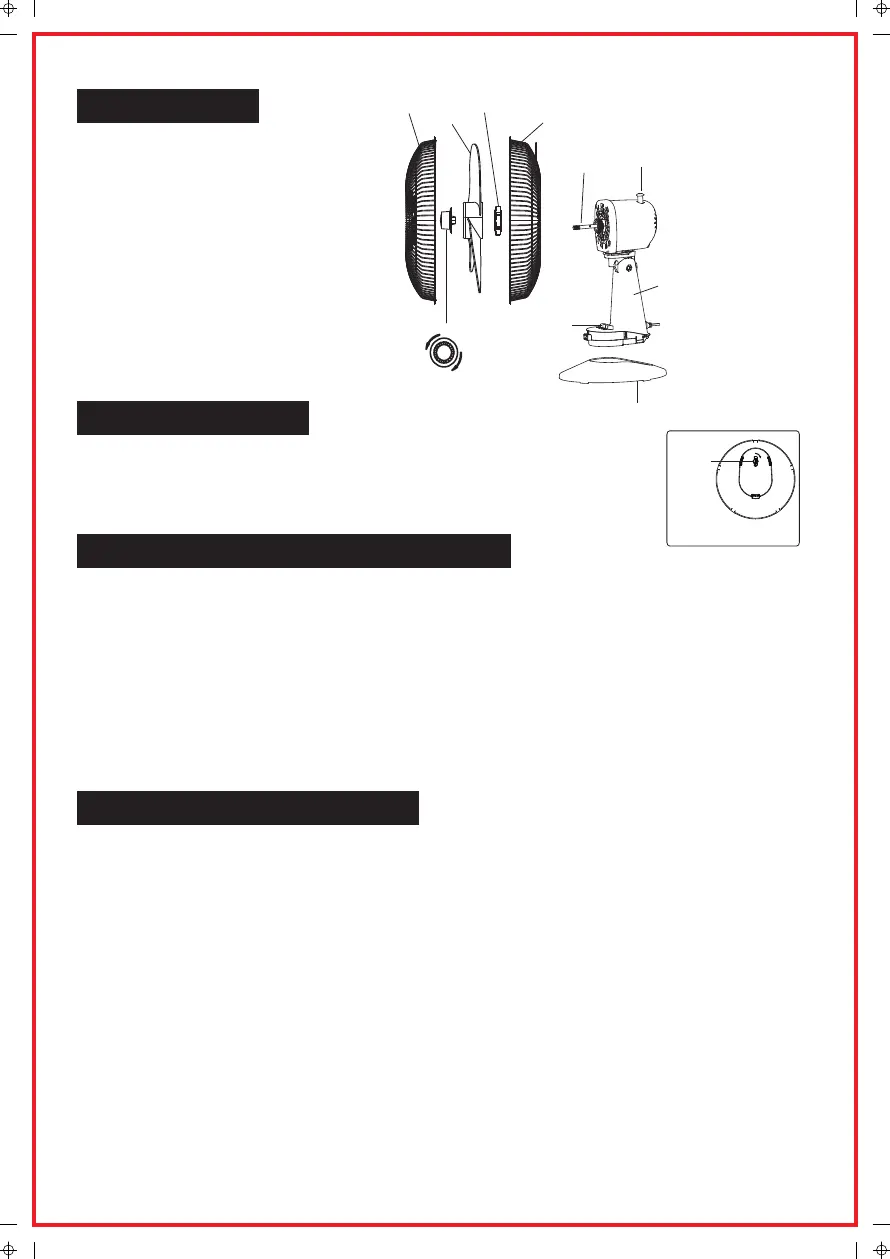

Front Guard
Blade
Plastic Nut
Rear Guard
Motor Shaft
Oscillating
Fan Body
Spinner
unscrew
BASE ASSEMBLY
PARTS NAME
1. Take the Spinner out from the bag, then remove the plastic nut by turning
it counterclockwise.
2. Set the rear guard in the proper position with the handle up.
3. Screw on plastic nut tightly to attach guard.
4. Install the blade onto the shaft until the retaining pin fits into the notch on
the blade.
5. Screw spinner on to motor shaft counterclockwise.
6. Mount the Front Guard and join both Guards together using the Clips.
1. Match locking tab to base and click into position.
2. Turn the lock bolt colockwise to secure the base(Fig.1).
Speed control
Speed is controlled by the button switch
0--Off 1--Low 2---Medium 3---High
Oscillation control
To make the fan oscillate, push down on the oscillation knob located on the top
of the motor housing. To stop the fan from oscillating in the position desired,
push on the oscillating knob once more.
Tilting control
The airflow can be adjusted upward or downward by tilting the fan head to a
vertical angle as desired.
OPERATION INSTRUCTIONS
ASSEMBLY OF BLADE AND GUARD
2
Base
Piano-key
Fig.1
lock bolt
