PARTS
Box 1:
Deck
Box 2:
Uprights x 2
Handrail
M5x10 button head screws x 4
M6x10 low prole cap head screws x 6
M6x12 at head cap screws x 3
M10x16 cap head screws with washers x 14
Box 3:
Touchscreen
31
|
ASSEMBLY
ASSEMBLY
30
WARNING
:
The Peloton Tread was not designed for assembly and installation
by consumers. The Peloton Tread assembly instructions are intended to assist
trained, professional installers, using specialized tools, in assembling the Peloton
Tread. The Peloton Tread weighs 290 lb/132 kg and requires more than one person
to assemble and/or move. Do not attempt to move the Tread with fewer than two
people. Improper assembly of the Peloton Tread can lead to serious injury. Damage
or equipment failure resulting from the improper or negligent assembly will not
be covered under Peloton’s warranties. If you use these assembly instructions to
assemble, disassemble, or move the Peloton Tread, you do so entirely at your own
risk. By undertaking assembly of your Peloton Tread, you agree to waive and release
Peloton from any and all claims that you may have resulting from the assembly of
the Peloton Tread by anyone other than a trained professional.
WARNING
:
Perform a complete visual inspection of the Peloton Tread and test all
features and functions prior to use.
TOOLS REQUIRED
3mm Allen wrench
4mm Allen wrench
8mm Allen wrench
27mm wrench
Torque wrench with 4mm
and 8mm hex bits

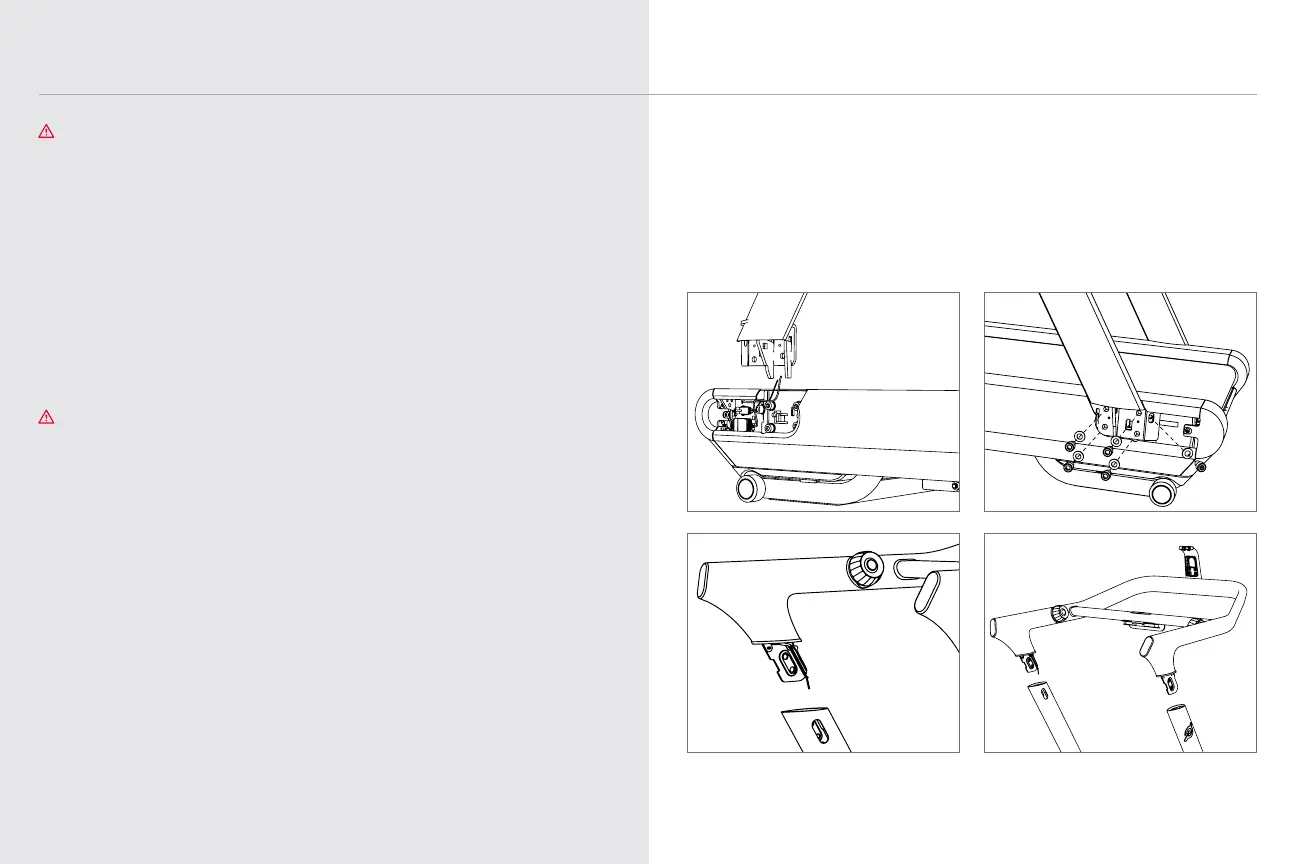

1 Connect left upright cable
2 Add right and left uprights
3 Connect three handrail cables
4 Push the handrail all the way into
the uprights
1
3 4
2
