PendoTECH PressureChecker User Guide
Revision 1
Page 5/15
1.1. Key Features
The PressureChecker incorporates a specially designed pressure cylinder and precision solid-state
transducer for generating and measuring static pressure from -7 to +10.5 psi. The adjustment knob is used
to regulate the pressure, and the pressure value is shown on the liquid crystal display. A built-in
pneumatic port provides the external connection for fittings to connect to the sensor test port.
Verify proper functioning of sensor and monitors
Verify proper function of sensor in-situ by accessing the atmospheric reference side of sensor
NIST Traceable
Can be returned for annual calibration
Battery operated for portability
1.2. Device Details
1.2.1. Hardware Details

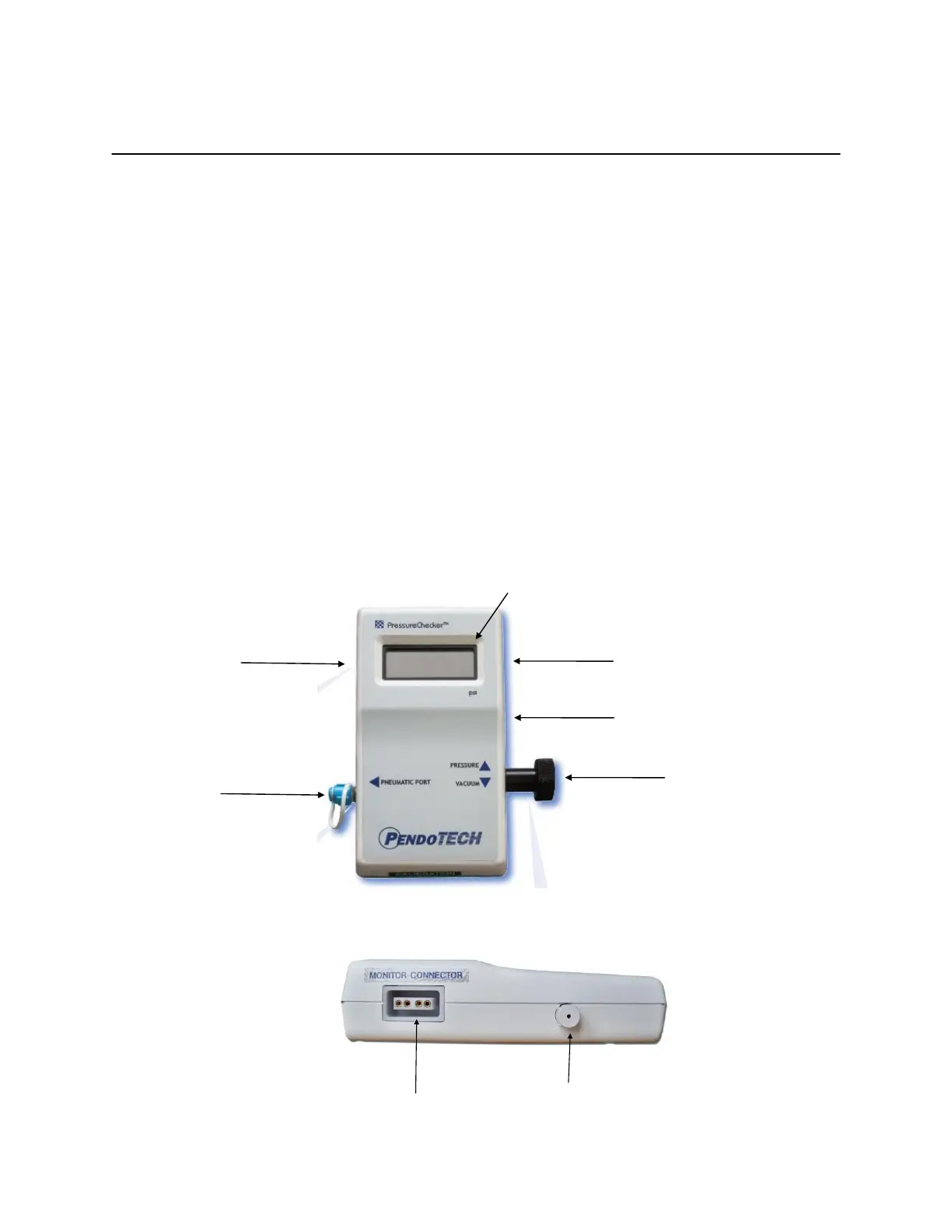

Device details are as shown:
Monitor
Connector
Pneumatic
Port
ON/OFF
Switch
Adjustment
Knob
Zero
Adjust
LCD
The connections on the left side panel are as shown below:
Monitor
connector
Pneumatic Port
with cap in place
