PendoTECH PressureMAT PMAT3P - Page 8

PressureMAT User Guide
Revision 8
Page 8/48

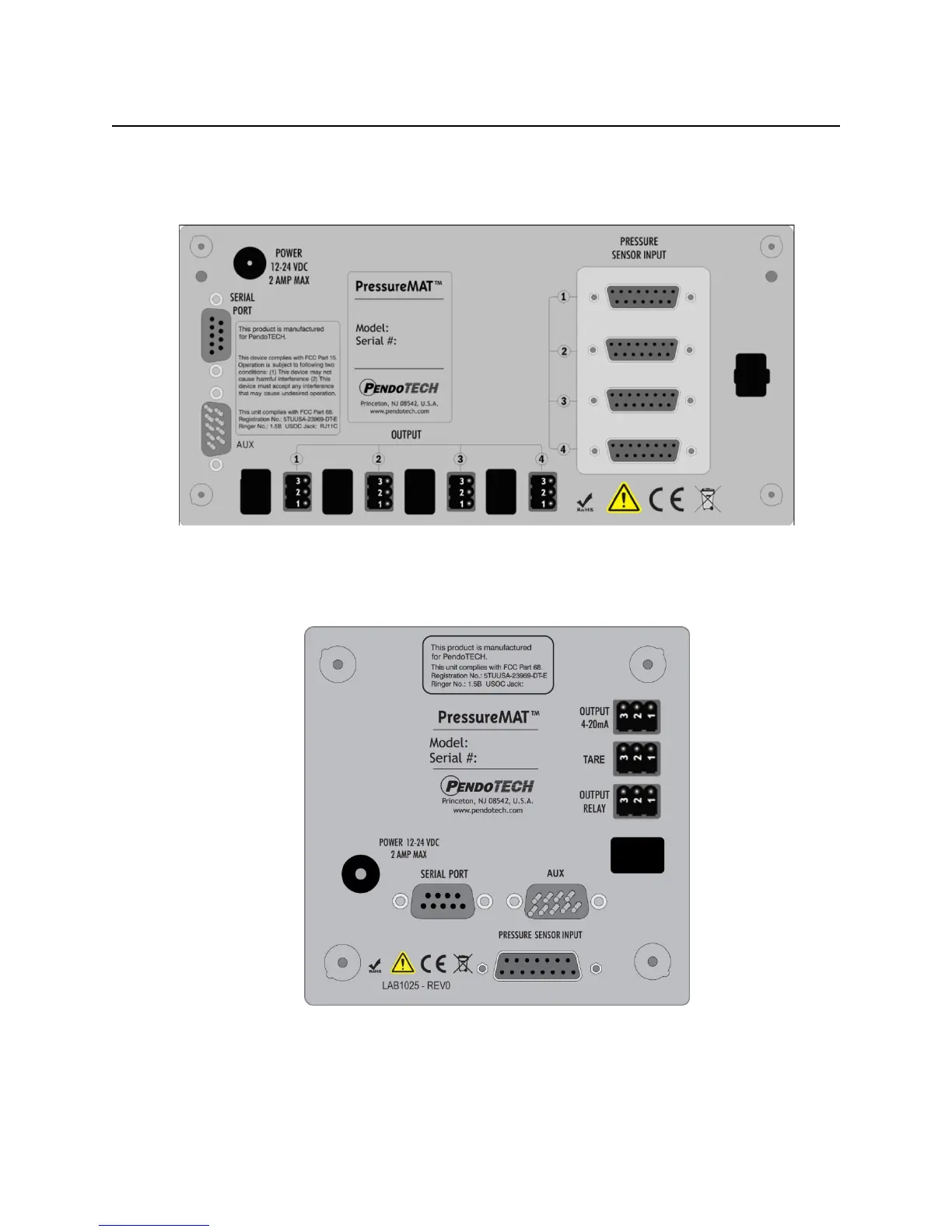

PMAT4x- Four Input Unit (If 4R outputs are relays; if 4A, outputs are 4-20mA):
PMAT-S - One Input Unit:
NOTE: The PMAT2P, PMAT3P, PMAT3A, PMAT2A, and PMAT2F back panel schematics
are shown in Section 3
