STEP #3
A-3 1/2
A-3 1/2
A-3 1/2
A-3 1/2
A-3 1/2

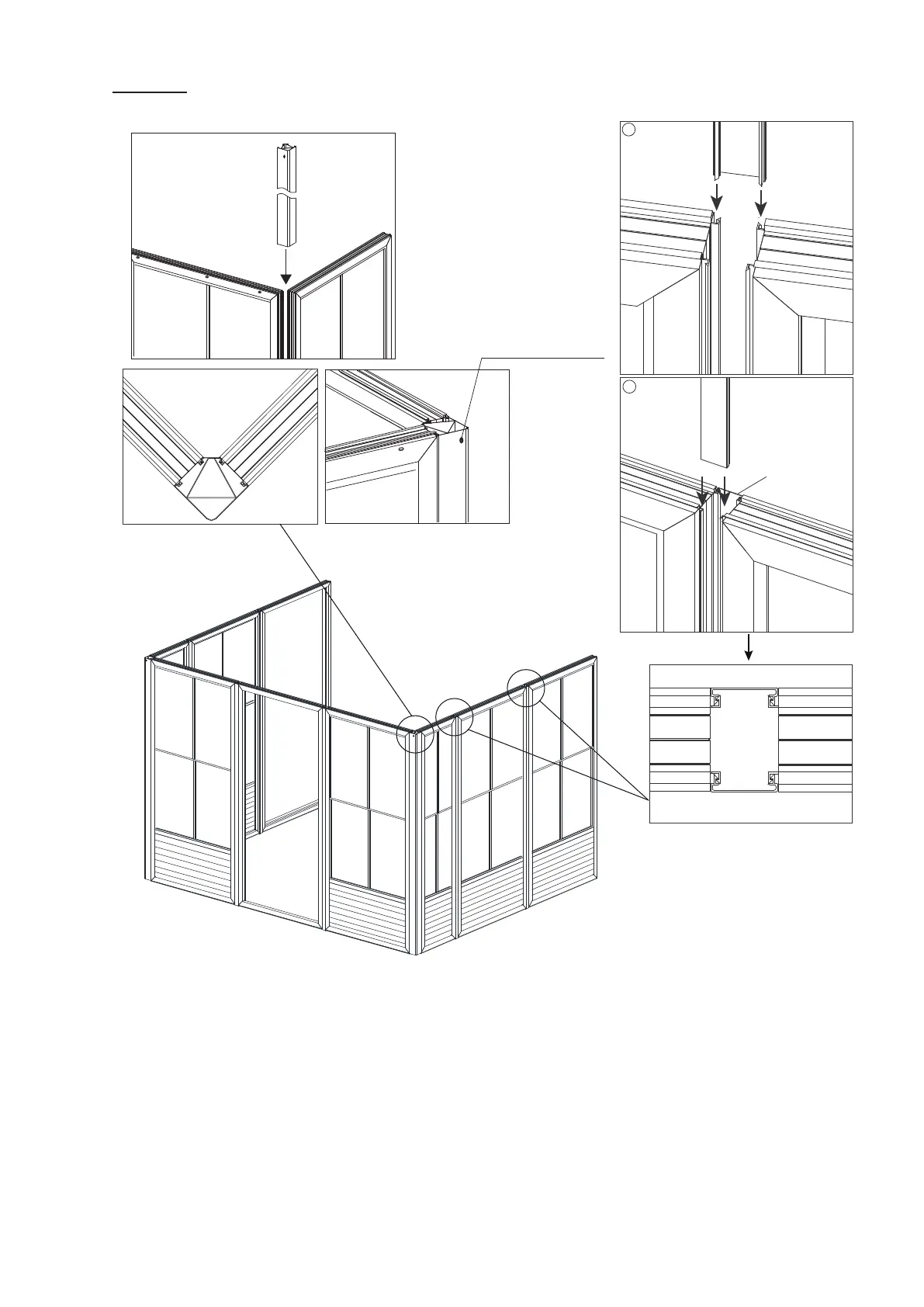

3.Connect the remaining Regular Frame (A-3) and Frame (A-3 1/2) with Corner Connector (K-3)
and Connecting Piece (E-3) connected together, Corner Connector (K-3) with bolt holes facing up
and out. (See sketch on page 8)
D-3
D-3
B-3
B-3
A-3
A-3
A-3
"Top View"
E-3
E-3
B-3
K-3
Note the direction
of the screw hole
"Top View"
B-3
K-3
1
E-3
E-3
E-3
2
B-3
K-3
