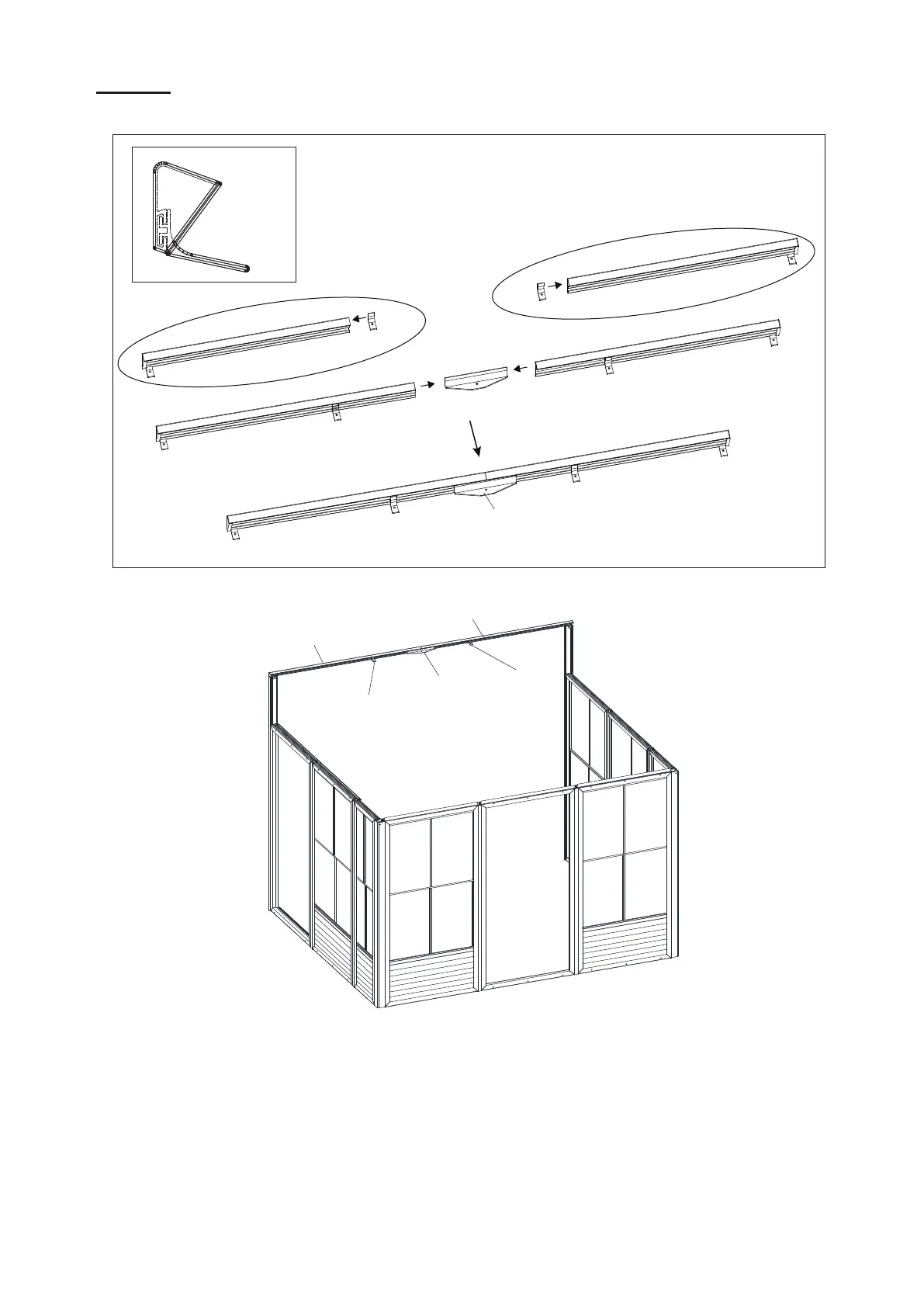

7.1 Assemble ML-3, N-3, O-3, and MR-3 as shown and position evenly above vertical
guides, at 96’’ from the ground. Secure wall track and vertical tracks to brick or cement
wall by drilling through the aluminum, at intervals of 16”(minimum) and using screws Xx-3.
Or other fasteners according to wall material (Not Supplied).
NOTE:Once the wall track is in place, apply silicon along the top of the wall track and at the
joint of the two vertical tracks.
Silicone is not supplied.
ML-3
ML-3
ML-3
ML-3
ASSEMBLE PIECES
BEFORE SCREWING
THEM TO THE WALL
MR-3
MR-3
MR-3
N-3
N-3
N-3
O-3
O-3
O-3
O-3
O-3
O-3
O-3
O-3
STEP #7
