Penner Cascade Alcove - Introduction; Terminology and Symbols Meanings; Tub Controls; Basic Dimensions

3
3
Introduction:

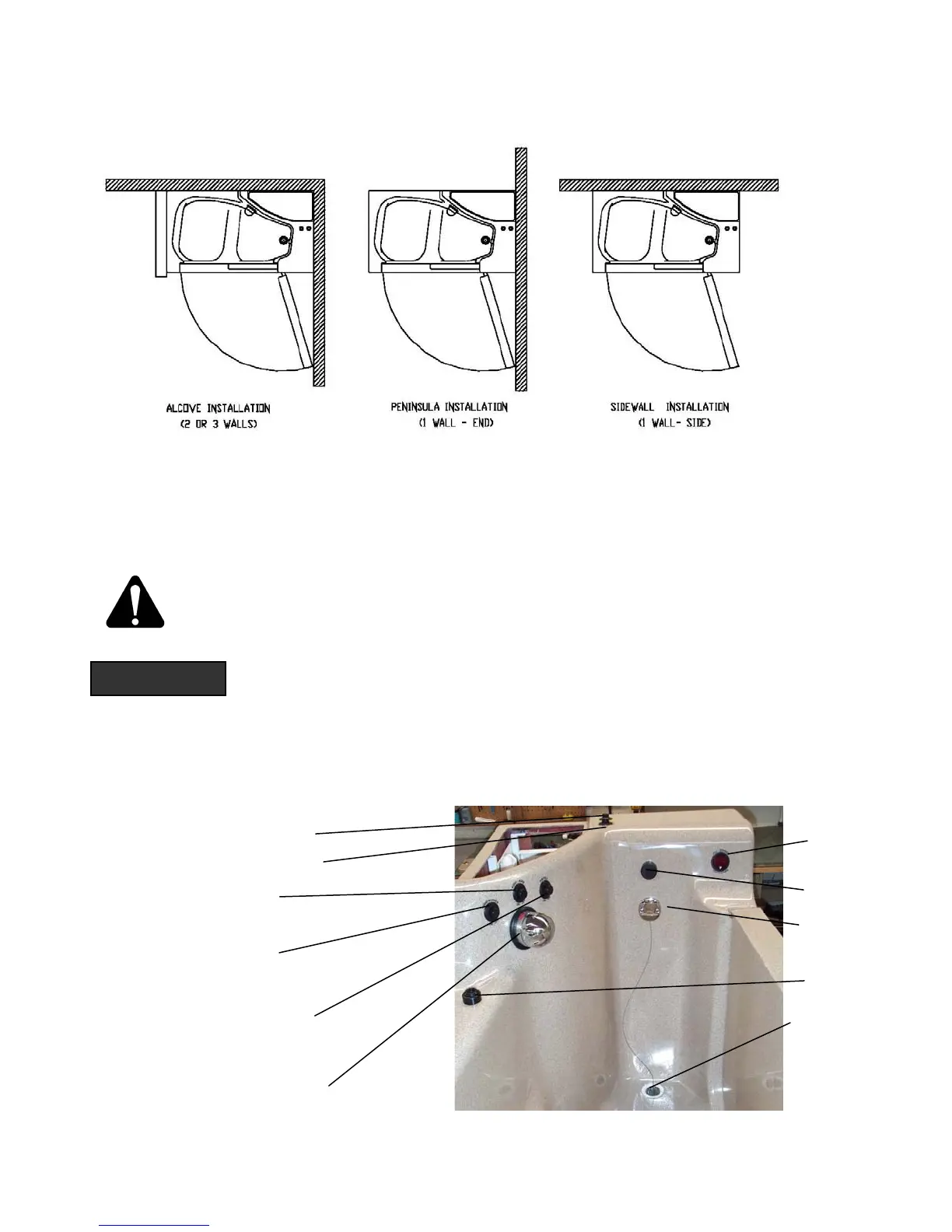

These instructions are for the installation of a Cascade Alcove tub in various configurations as
shown below in figure 1. Follow the instructions for your particular installation configuration.
Figure 1
Terminology and Symbols Meanings
When the terms “left” or “right” are used with reference to the tub, this means left or right as
you look when seated in the tub.
Meaning: Safety warning. Failure to understand and obey this warning may result
in injury to you or to others.
Meaning: Failure to follow these instructions may cause damage to parts
or systems.
Note: Refer to the “Tub Controls” section of this manual for the location of any of the controls
referenced.
Tub Controls:
Basic Dimensions:
CAUTION
TUB FILL ON/OFF BUTTON
FILL
SPOUT
A
Q
UA-AIRE ON/OFF
FILL /SHOWER
TEMPERATURE
READ-OUT
SHOWER ON/OFF
HAND SHOWER
OVER FLOW
DRAIN PLUG CABLE
RINSE BUTTON
DISINFECT BUTTON
Figure 2
Tub Controls
MIXING VALVE
TEMPERATURE CONTROL
