23900 Page 12 of 15
TROUBLESHOOTING:
Typical battery drain
Meter: 1.7-2.0mA
Shutter open: 10mA
Behaviour with batteries
Fastest speed only except at mechanical shutter settings
Replacement parts
Circuit board T100 and Seiko shutter E000 available from Pentsx
only as complete modules; other parts available individually
Troubleshooting steps for specific problems
1. Shutter gives only mechanical speed at auto, LEDs don't turn on
Battery voltage at flex circuit
Check for +3V between ground and each red wire at top of flex
circuit. No voltage: check battery box and red wire solder
connections.

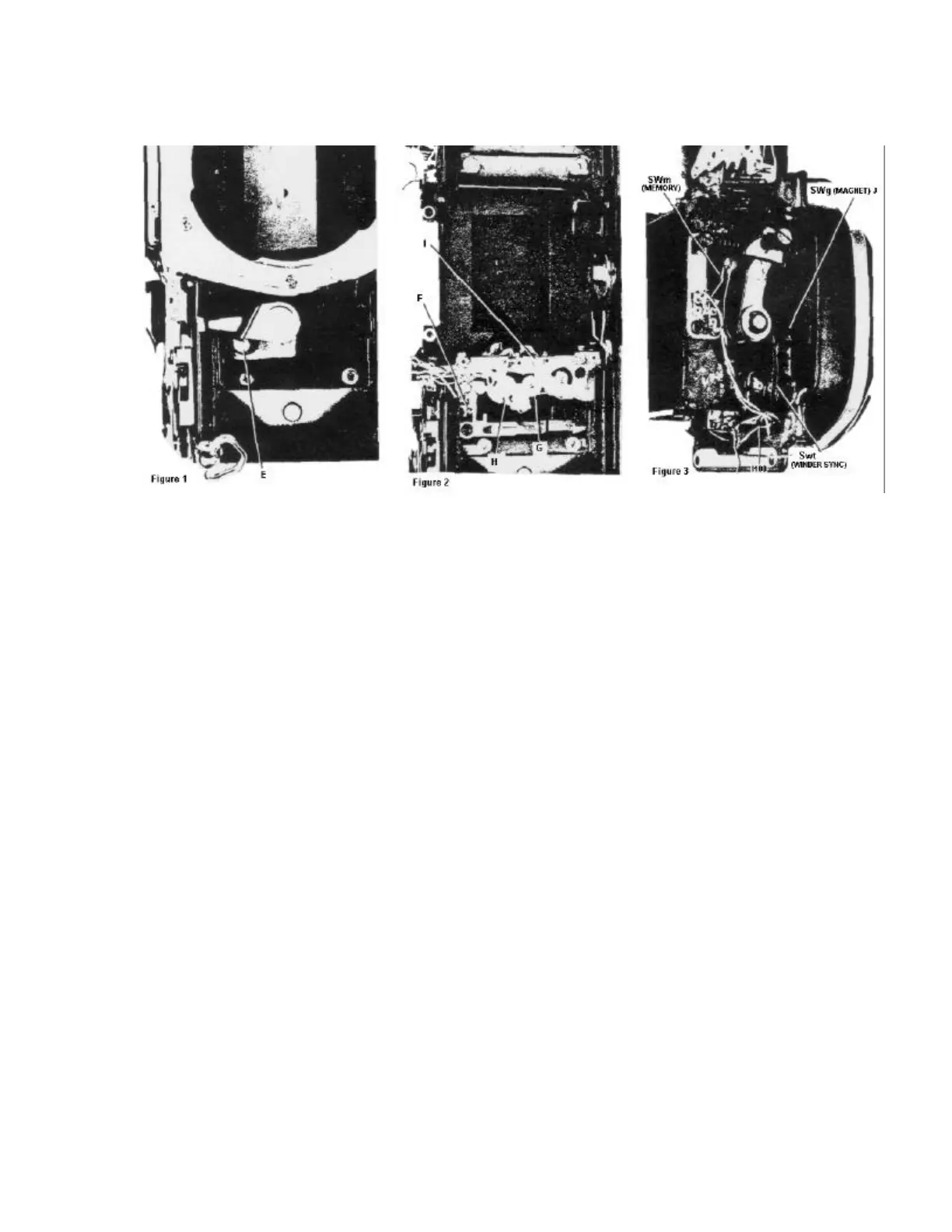

Main switch
Check for +3V at center lead (uninsulated connector) to front-
plate circuit board A129 with release-side partially depressed.
No voltage: check main switch for poor contact. You can also
check the main switch by shorting between the red wire at the
flex circuit and the center terminal at the front-plate circuit
baord. The short should turn on the meter. If it does, the main
switch is the problem.
