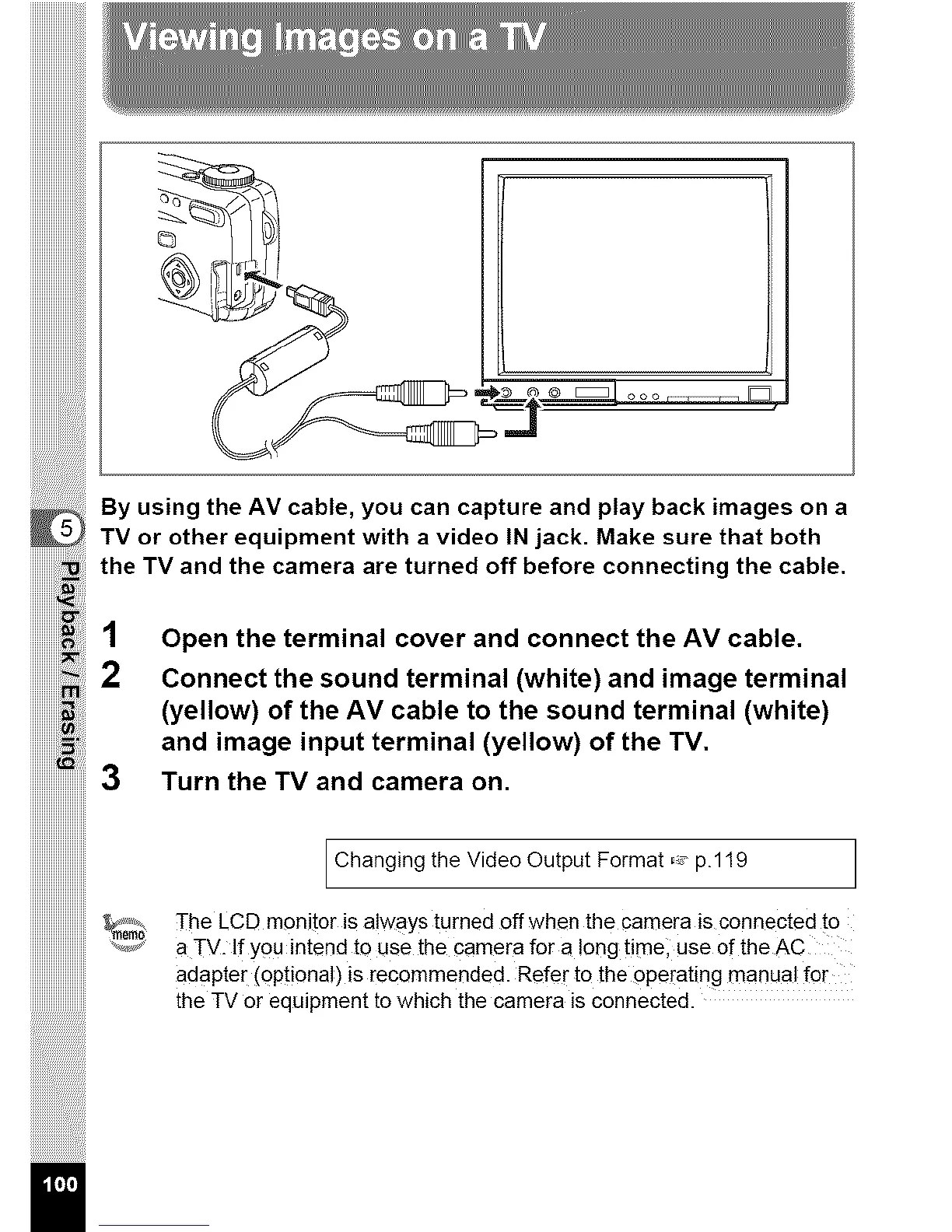

By using the AV cable, you can capture and play back images on a
TV or other equipment with a video IN jack. Make sure that both
the TV and the camera are turned off before connecting the cable.
iiiiiiiiiiiiii_;il
iiiiiiiiiiiii! iiiizi!
iiiiiiiiiiii!!_;!ii!iii
iiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiii
il
Open the terminal cover and connect the AV cable.
Connect the sound terminal (white) and image terminal
(yellow) of the AV cable to the sound terminal (white)
and image input terminal (yellow) of the TV.
Turn the TV and camera on.
Changing the Video Output Format ,,- p.119 ]
The LCD monitor is alwaYs turned off when the camera is connected t°
a TV. If you intend to use the camera for a long timel use of the AC
adapter (oPtional) is recommended. Refer to the operating manual for
the TV or equipment to which the camera is connected.
