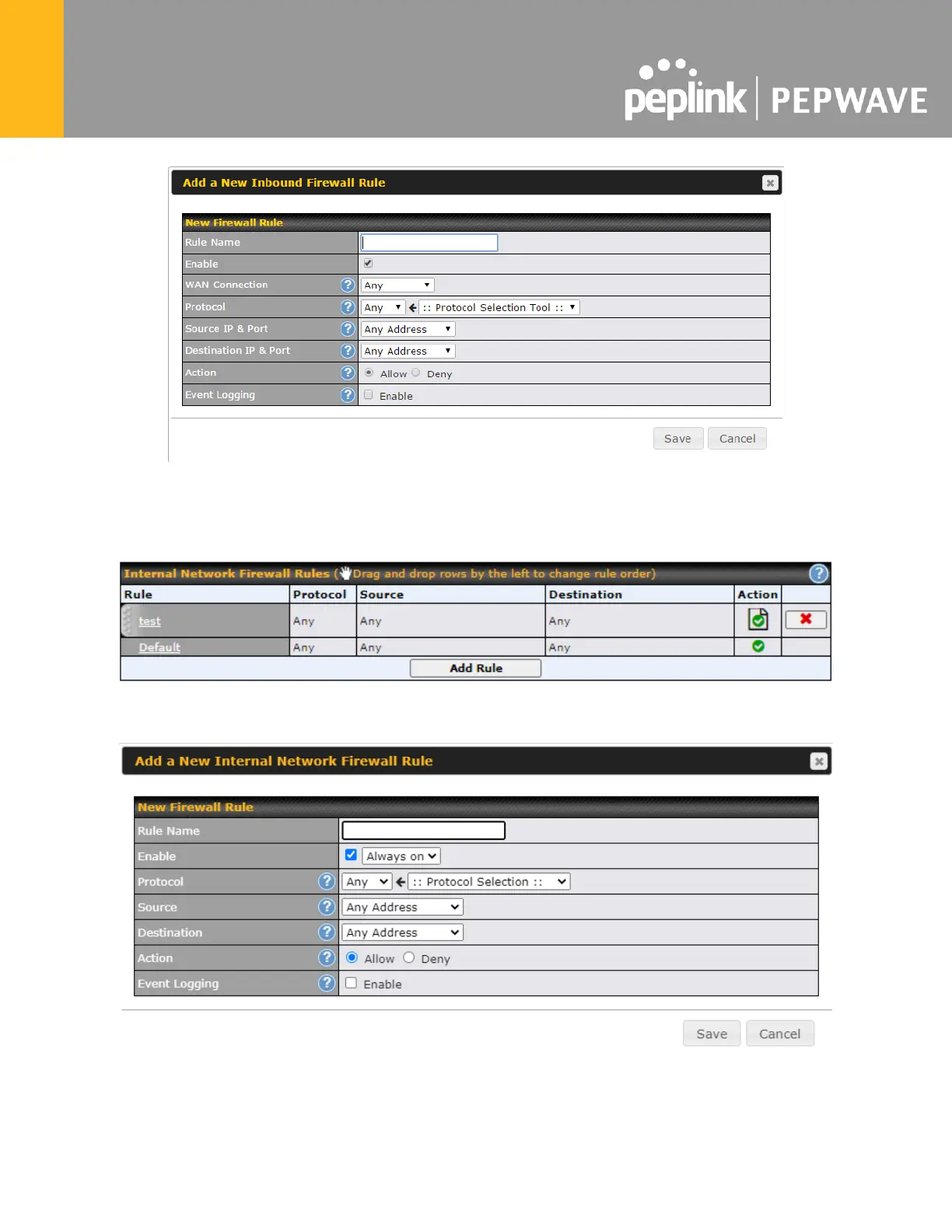

Internal Network firewall settings are located at Advanced>Firewall>Access Rules>Internal

Network Firewall Rules .

Click Add Rule to display the following window:
