Pepperl+Fuchs KC-LCDC-48-2R-24VDC User Manual

Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
3
Release date: 2016-09-12 10:30 Date of issue: 2016-09-12 214741_eng.xml

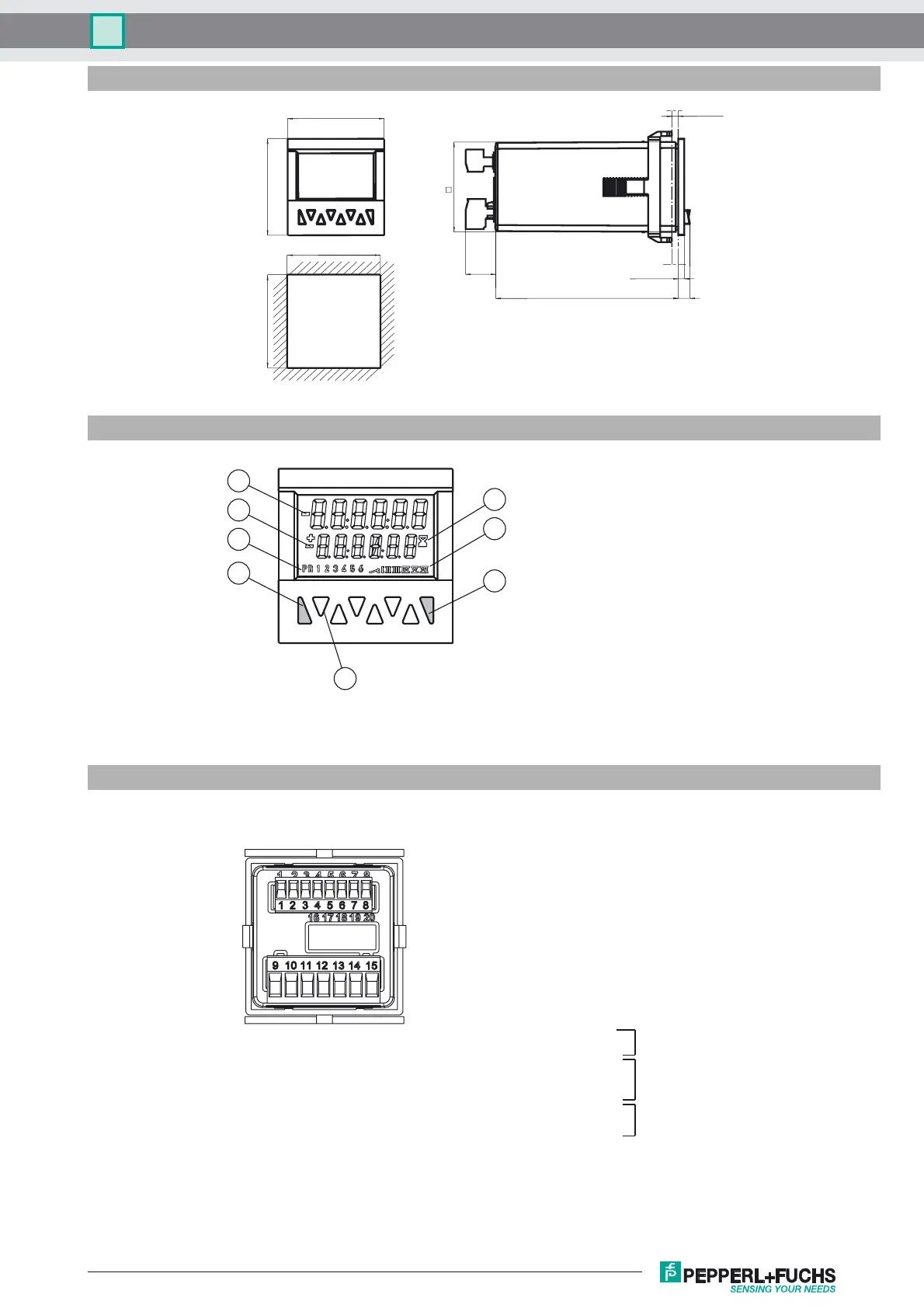

Timer, Counter, Tachometer KC-LCDC-48-2R-24VDC
Dimensions
Indicators / Operating means
Electrical connection
48
48
45
91
2.9
5
13.8
max. 10.5
45
45
+0.6
+0.6
1
2
3
4
5
6
7
8
1 Current count value
2 Preset value
3 Indicator preset value (at 9)
4 Reset key
5 Decade keys 1 to 6 /
Keys for programming
6 Run display for timer
7 Shows the active output
8 Prog/Mode key
Signal and control inputs
1 Sensor supply voltage
2 GND (0V)
3 INP A (Signal input A)
4 INP B (Signal input B)
5 RESET (Reset input)
6 LOCK (Input Keypad lock)
7 GATE (Gate input)
8 MPI (User input)
Supply voltage and outputs
9 Relay contact C.
10 Relay contact N.O.
11 Relay contact C.
12 Relay contact N.O.
13 Relay contact N.C.
14 10 ... 30 V DC
15 GND (0V)
Output 2
Supply
voltage
Output 1
