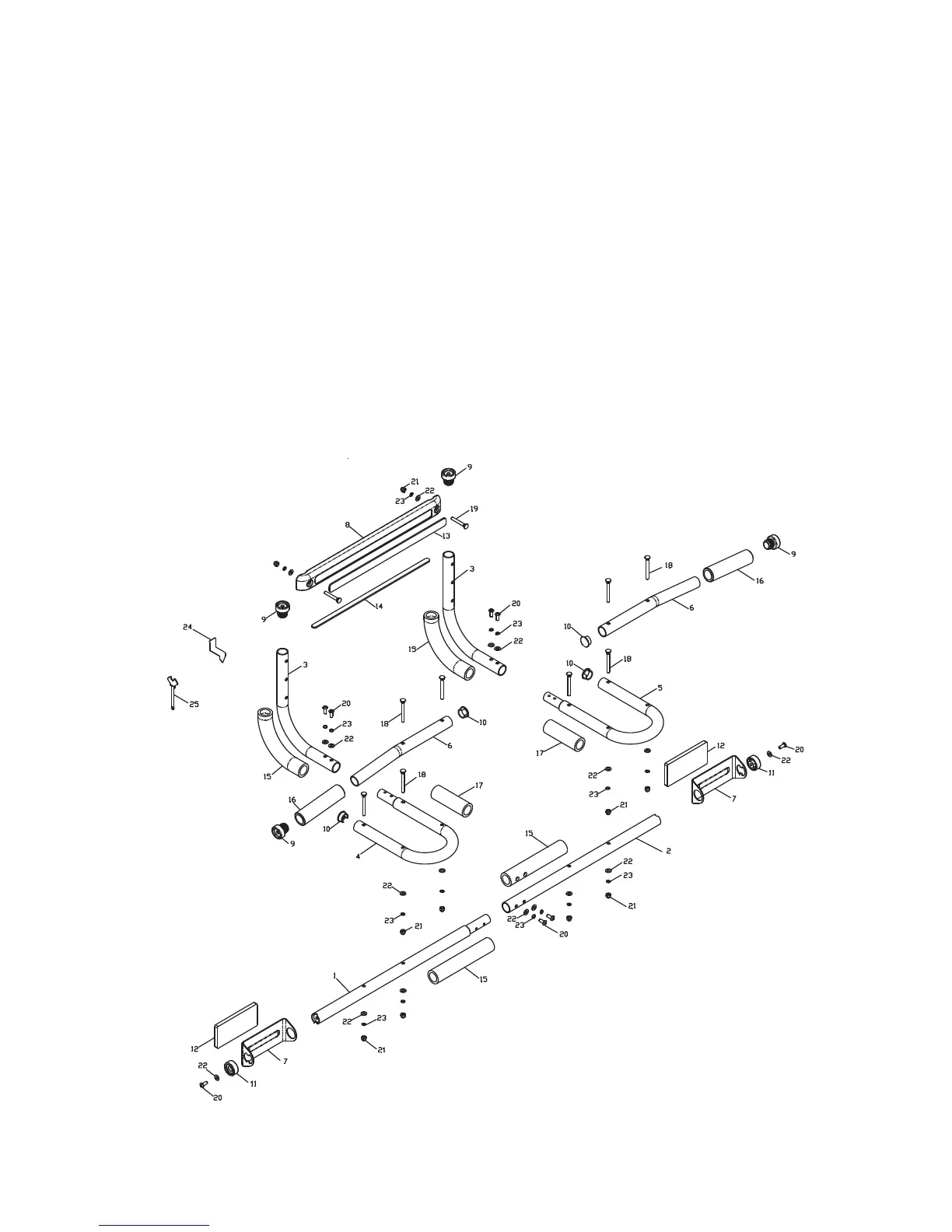

ITEM# DESCRIPTION QTY ITEM# DESCRIPTION QTY
1 Left Main Bar 1
2 Right Main Bar 1
3 Left/Right Curved Frame
Tube Assembly 2
4 Left U Shaped Tube 1
5 Right U Shaped Tube 1
6 Left/Right Handlebar 2
7 Left/Right U Bracket 2
8 Connecting Bar 1
9 End Caps 4
10 End Caps to fit 25.4 x T1.5 4
11 End Caps 2
12 Square EVA Pad 2
13 Front Side EVA Bar 1
14 Bottom Side EVA Bar 1
15 Foam 23mm x 33mm x 180mm 4
16 Foam 23mm x 33mm x 125mm 2
17 Foam 23mm x 33mm x 100mm 2
18 Carriage Bolt M6 x 58mm 8
19 Carriage Bolt M6 x 45mm 2
20 Phillips Bolt M6 x 15mm 8
21 Acorn Nut 10
22 Washer 6.5 x 13 x T1.2 18
23 Spring Washer 6.5 x 10 x T1.2 16
24 Safety Clip 1
25 Hex Wrench w/Phillips
Screwdriver 1
