Oil tool before each use. 4 to 5 drops of a good grade Air Tool Oil
placed in the air inlet is sufficient. Use proper air pressure and
CFM rating listed for this tool.
Drain water from hoses and compressor tank. Water in the
air supply line will cause gumming and loss of power. Clean the
air lter on the supply line and ush the tool with gum solvent or
a 50/50 mix of air tool oil and kerosene. It may be necessary to
disassemble the tool to properly clean and re-lubricate.
LUBRICATION & MAINTENANCE
AIR SOURCE
Clean air of correct air pressure is recommended for the power
supply for this tool. A maximum of 90 PSI at the tool is recom-
mended for most air tools of this class. Check specications sec-
tion for recommended pressure. (Depending on length of air hose
and other circumstances, air pressure at compressor may need to
be increased to 100 PSI to ensure 90 PSI at the tool.)
Water in the air hose and compressor tank contributes to reduced
performance and damage of the air tool. Drain the air tank and l-
ters before each use and as necessary to keep the air supply dry.
Hose length over 25’ causes loss in line pressure. Increase hose
I.D. or increase compressor pressure to compensate for the pres-
sure loss. Use an in-line pressure regulator with gauge if air inlet
pressure is critical.
INDEX DESCRIPTION QTY INDEX DESCRIPTION QTY
1 Housing 1
2 Rotor Shaft 1
3 Key 1
4 Bearing 2
5 Front plate 1
6 Rotor 1
7 Blade 5
8 Cylinder 1
9 Rear Plate 1
10 Spring Pin 2
11 Bolt 4
12 Retaining Ring 1
13 Sponge 1
14 Motor Cover 1
15 Regulator 1
16 O-Ring 4
17 Retaining Ring 1
18 O-Ring 1
19 O-Ring 1
20 Valve Stem 1
21 Spring 1
22 O-Ring 2
23 Valve Cap 1
24 Washer 2
25 Bolt 2
26 Trigger 1
27 Spring Pin 1
28 Air Inlet (18) 1
29 Random Balance Body 1
30 Washer 1
31 Bolt 1
32 Washer
33 Screw Cap
34 Counterweight Spacer
35 Balance Nut
36 Washer
37 Washer
38 Bolt
39 Bolt
40 Washer
41 Bearing
42 Washer
43 Retaining Ring
44 Random Shaft
45 Cover
46 Sanding Pad
47 Washer
6

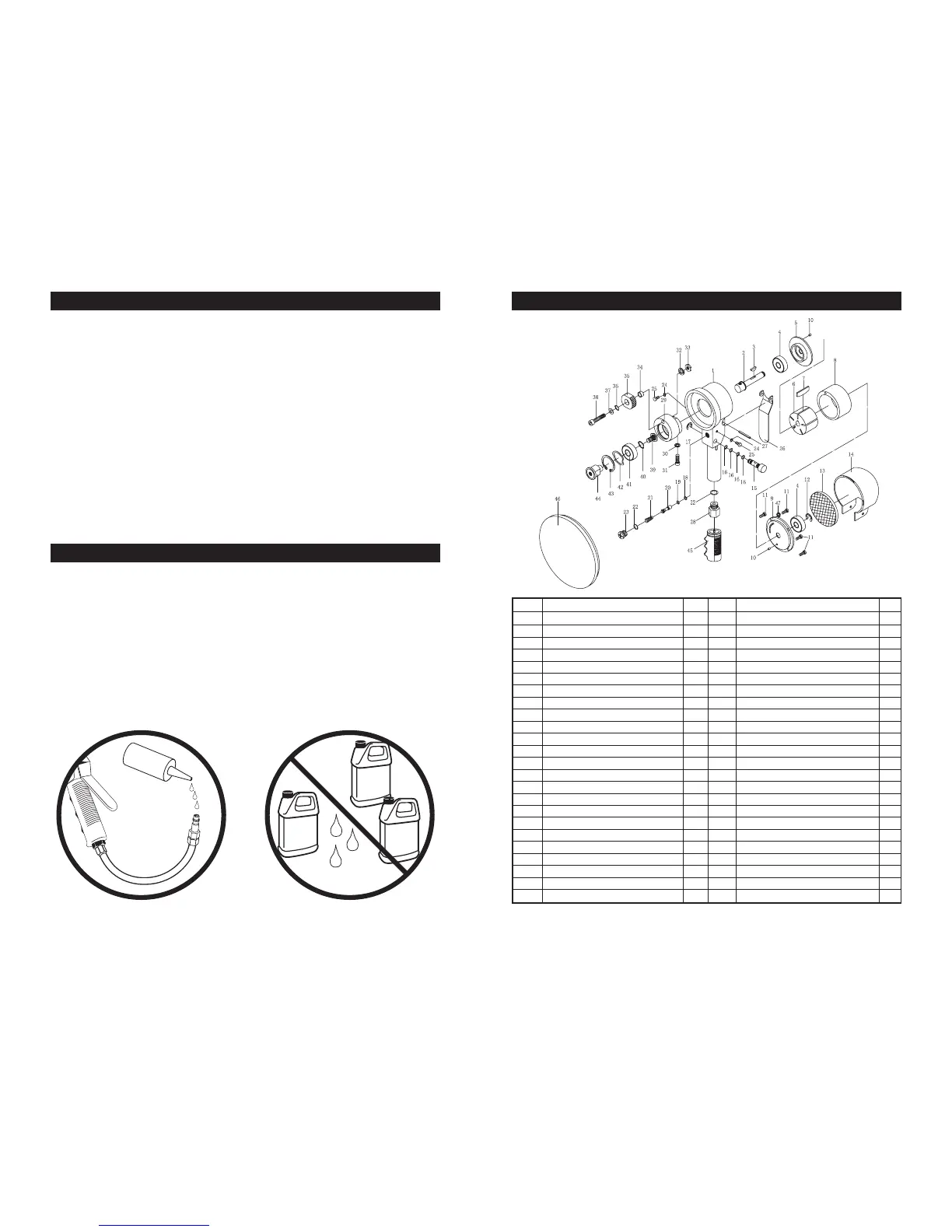

PARTS LIST
To Next Page
