OPERATION
1. FRONT LEGS MUST ALWAYS BE LOCKED IN DOWN POSITION BEFORE APPLYING LOAD
AND/OR RAISING BOOM (See Figure 2).
2. To raise load, close release valve and pump handle to raise boom to desired height.
3. To lower load, SLOWLY turn release valve counter-clockwise.
4. BOOM MUST BE IN FULLY LOWERED POSITION BEFORE RAISING LEGS. LEGS MUST
NEVER BE RAISED WHEN CRANE IS CARRYING LOAD. LEGS MUST BE LOCKED IN \
PLACE WHEN RAISED (See Figure 3).
REFER TO VEHICLE MANUFACTURER'S APPROVED SERVICE MANUAL FOR PROPER
ENGINE REMOVAL PROCEDURE.
Be aware of load weight. Always position boom extension at correct location for the load you are
lifting; 1/2 Ton, 1 Ton, 1-1/2 Ton or 2 Ton.

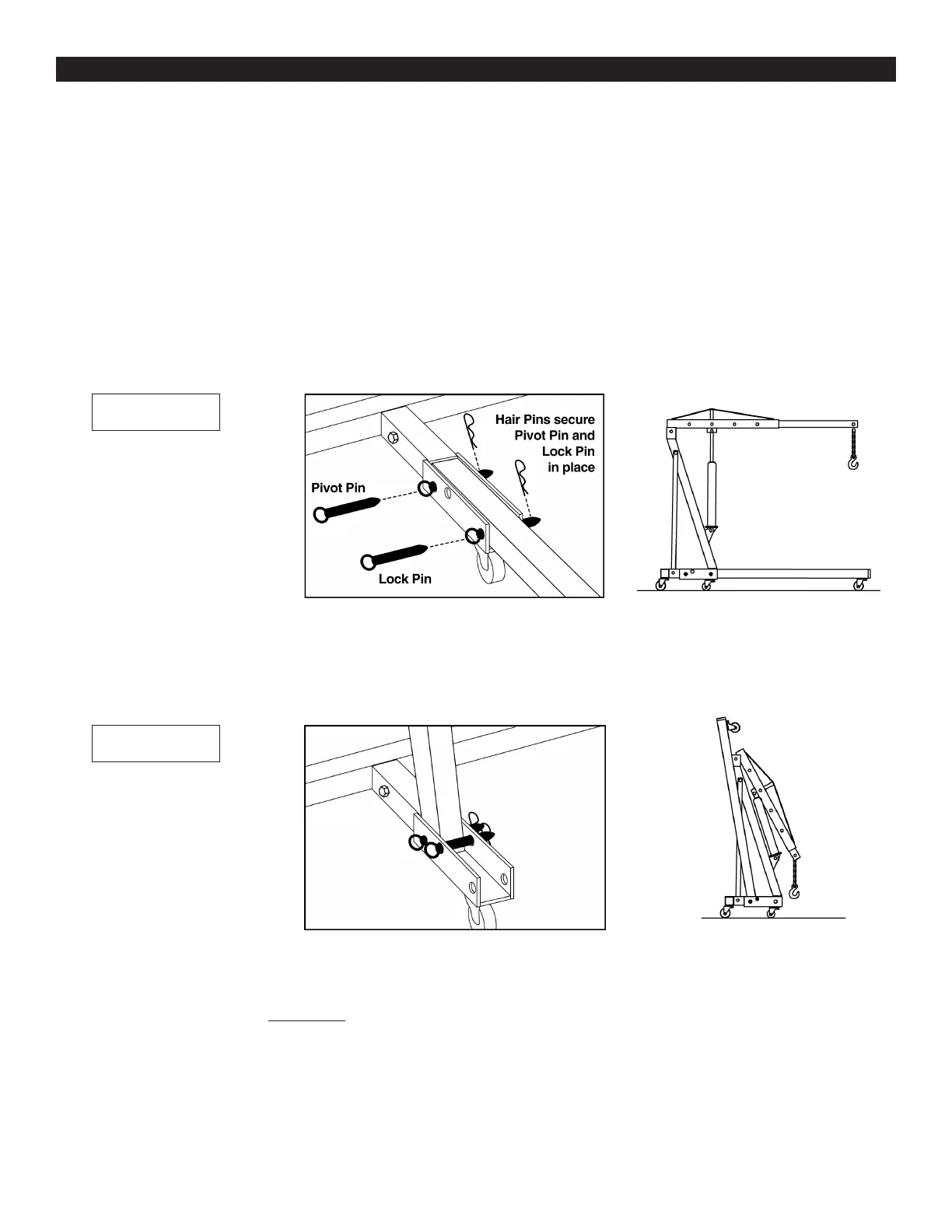

This folding crane features an easy to use Frame Pin locking system. The rear Frame Pin acts as a
Pivot Pin (See Figure 2) and is a permanent fixture after being installed. The forward Frame Pin acts
as a Lock Pin to safely lock the legs in the Down/Operational position (Figure 2) or to lock the legs in
the Up/Storage position (Figure 3).
5
Leg Locked in Down
Position
Crane is ready
for Operation
Figure 2
Leg Locked in Up Position
Crane is ready
for storage
Figure 3
