1
2
3
4
5
7
6
8
9
10
12
13
11
WARNING! READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS, AND WARNINGS BEFORE OPERATING THIS TOOL. FAILURE TO DO
SO MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND WILL VOID WARRANTY.
SPECIFICATIONS
Capacity:...................... ..................................350 Lbs.
Overall Dimensions: ................ 20-7/8 x 14-1/4 x 16 in.
Seat Dimensions: ........................................... 16 x 9 in.
SPECIFICATIONS ARE SUBJECT
TO CHANGE WITHOUT NOTICE
2

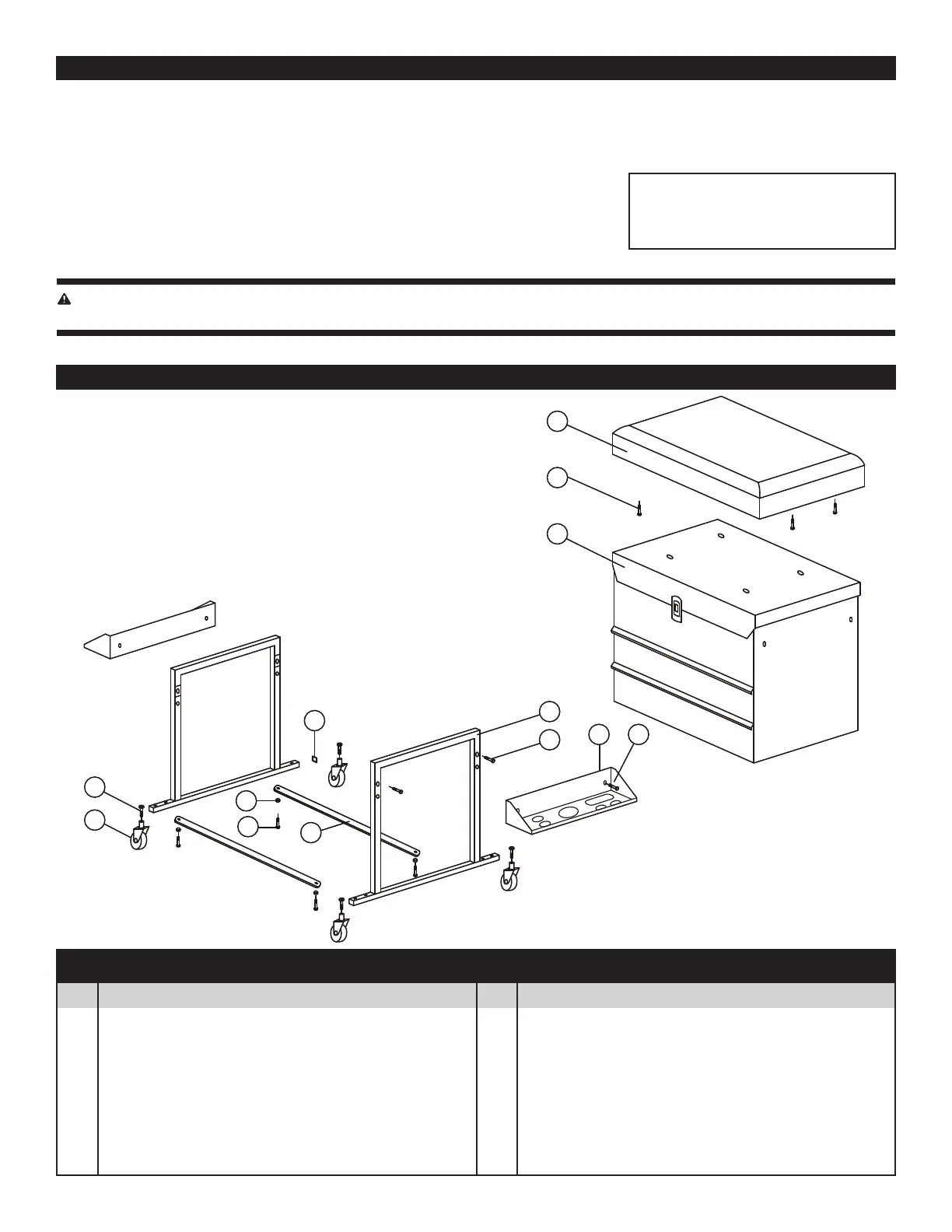

PARTS DIAGRAM
Chest Storage Dimensions: ......... 13-1/2 x 8-3/4 x 3 in.
Drawer Dimensions: ............. 12-1/2 x 7-3/4 x 2-1/4 in.
Maximum Drawer Capacity: ..............................20 Lbs.
PARTS LIST
No. Description Qty.
1 Stool Pad ...............................................................1
2 Bolt M6 x 12 ..........................................................4
3 Tool Chest .............................................................1
4 Bolt M6 x 25 ..........................................................4
5 Side Tool Tray ........................................................2
6 Tool Chest Frame ..................................................2
7 Bolt M6 x 30 ..........................................................4
No. Description Qty.
8 Caster Nut M8 .......................................................4
9 2-1/2 in. Caster ......................................................4
10 Nut M8 ...................................................................4
11 Bolt M8 x 40 ..........................................................4
12 Support Bar ........................................................... 2
13 Plastic End Cap ..................................................... 4
This product is designed to support a maximum capacity of 350 lbs. (159 kg),
including all tools and equipment. It is intended to be used to support and
transport, along a smooth and level surface. This product is not intended,
designed or engineered to be used for any other purpose.
