Page 13

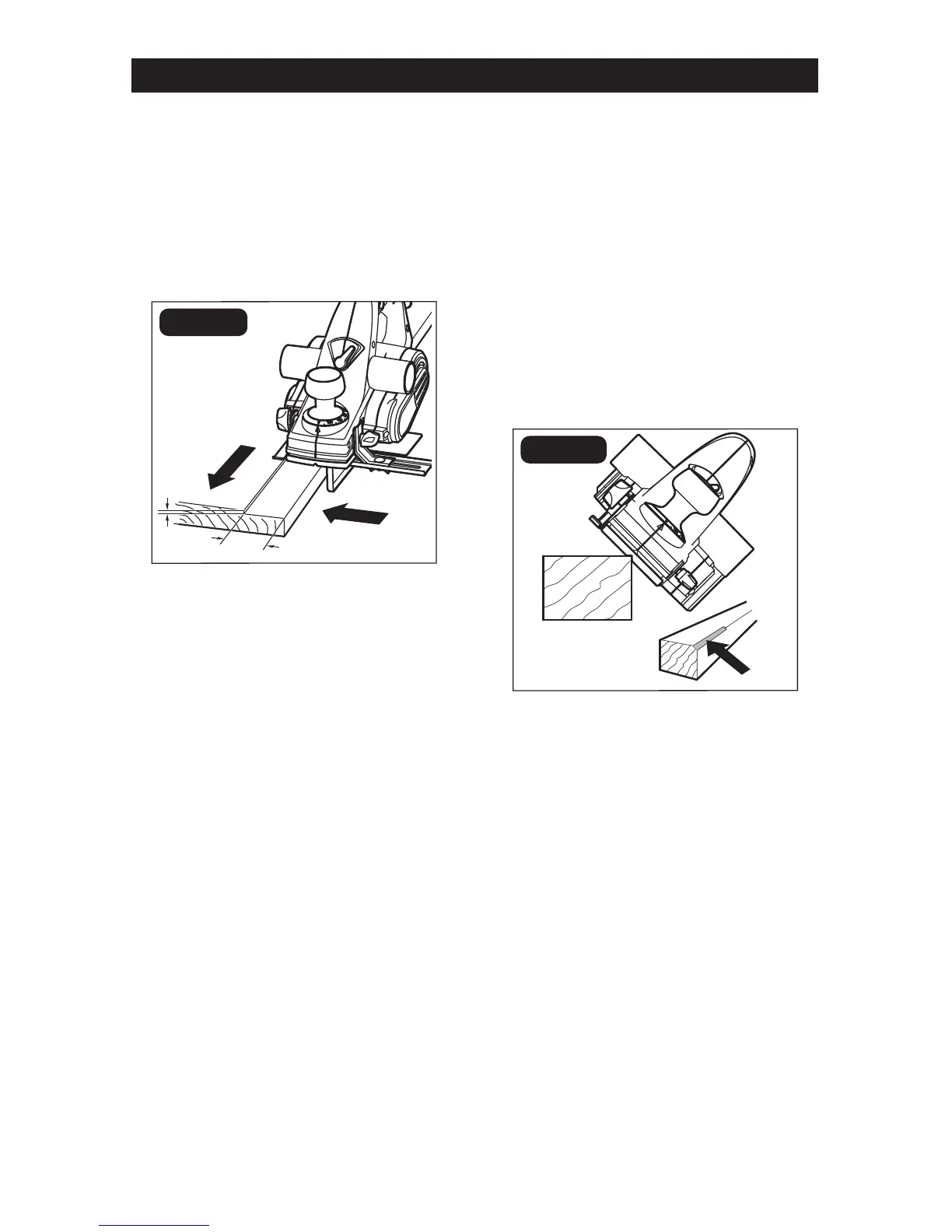

PLANING WITH THE EDGE GUIDE
(FIG. 15)
The edge guide can be used to control the
width of the cut or for simply providing
added stability and protection when cutting
materials that are up to 3-1/4” (82 mm) wide
(FIG. 15).
FIG. 15
82mm max
18mm
max
Blade
CHAMFERING (FIG. 16)
The “V” groove in the front base allows quick
and easy chamfering of workpiece edges.
1. Place the “V” groove on the front base
over the edge to be chamfered. Be
sure the blades are not touching the
workpiece.
2. Position the “V” groove absolutely at
on the edge to be beveled.
3. Grasp the tool rmly with both hands,
turn the tool on and push the planer
forward with steady pressure on the
front base.
FIG. 16
OPERATION
