4 of 6

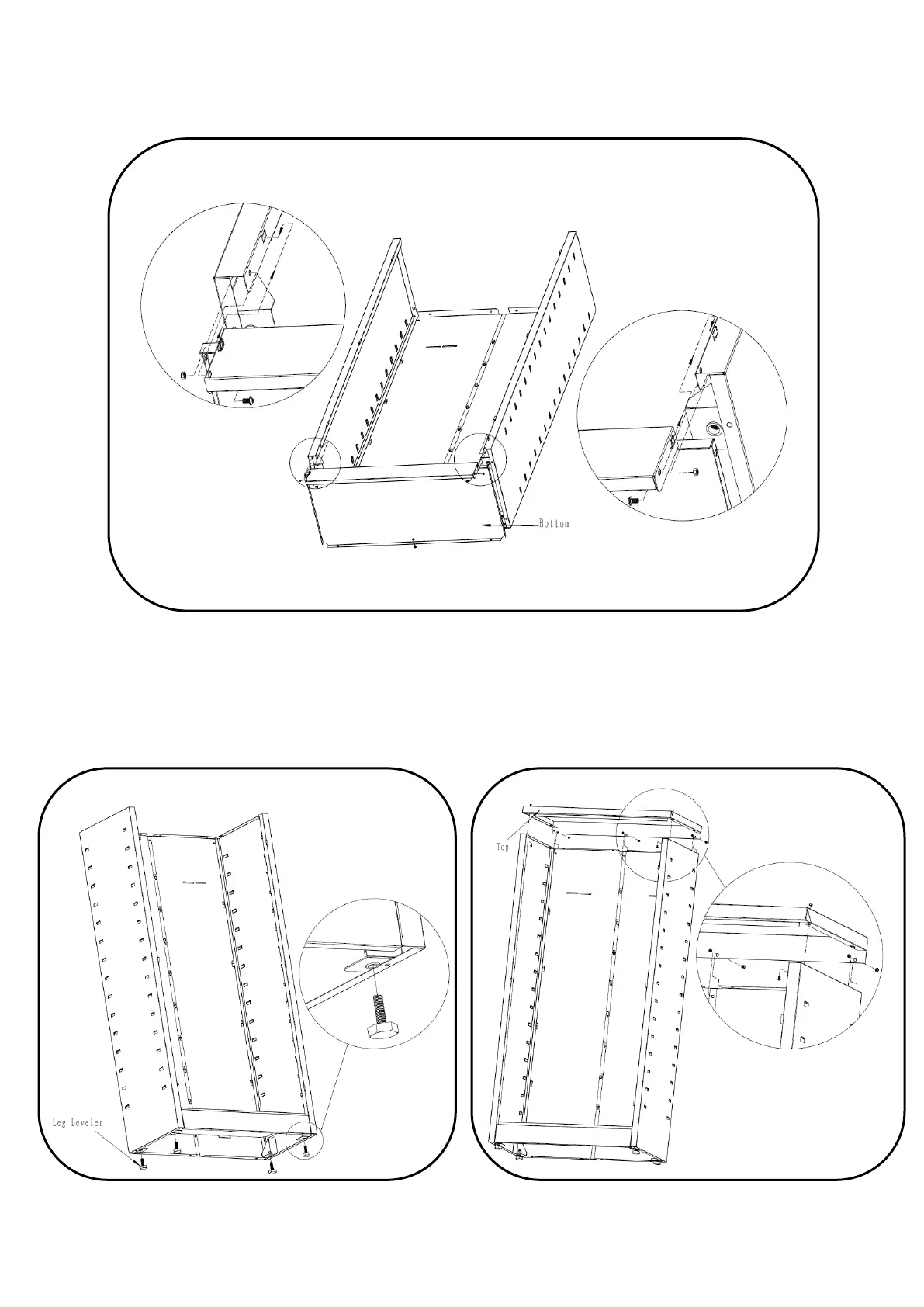

Figure 3 – Bottom Assembly
Step 4 – Leveler Assembly
Install the 4 leg levelers in the bottom. Screw all the way in. Adjust once unit is set in final position.
Figure4 – Leveler Assembly Figure 5 – Top Assembly
